Tenfly Smart Collaboration Interactive Displays
Certified OEM/ODM Factory Specializing in 4K Interactive Displays with NFC Collaboration Technology
- 4K Ultra HD Interactive Display from 55” to 98”
- Built-in 48MP AI Camera with Optional High-Resolution Module
- 8-Array Microphone System for Clear Long-Distance Voice Pickup
- Ultra-Responsive 100-Point Multi-Touch Writing Experience
- Front Shortcut Keys with One-Tap NFC Casting Function
- Anti-Glare Tempered Glass with High Brightness & Wide Color Gamut
- Rich Connectivity Including HDMI, USB & Full-Function Type-C Ports
Overview

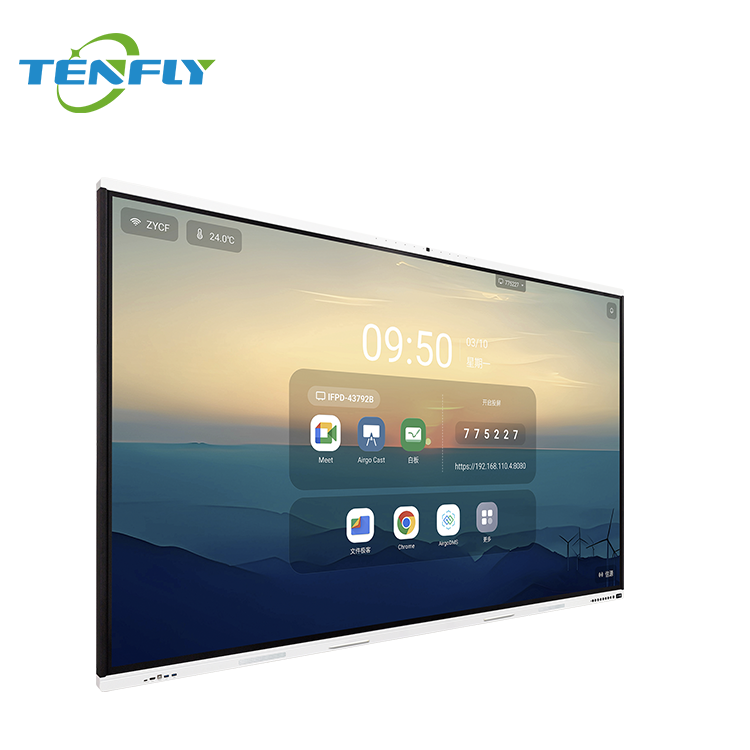

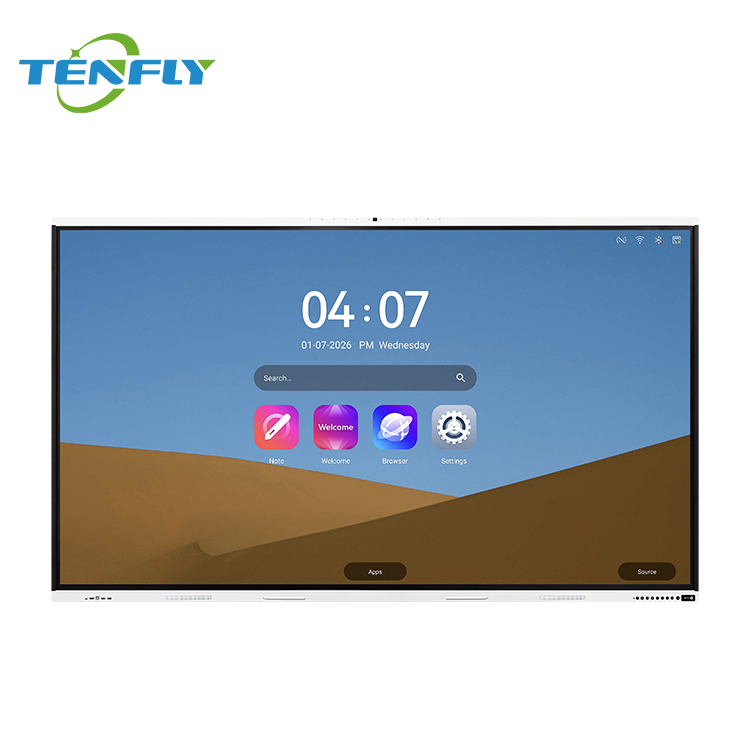

The HW Series is the flagship model designed for teaching and high-end meeting scenarios. Its core value lies in boosting efficiency for frequent operations: the built-in NFC area allows one-tap screen casting from a phone – no app installation or code entry required. Eight physical front buttons provide one-press access to common functions, reducing menu navigation time. The ivory white + matte black two-tone finish, combined with a full aluminium profile and zinc-alloy corner brackets, delivers both refined aesthetics and durability. High-precision multi-touch, a bright 4K display, a HD camera, and an enhanced array microphone come as standard.
Key Features
NFC One-Tap Casting
Tap your phone on the NFC sticker – screen mirrors instantly. No apps, no codes. Seamless sharing from mobile devices.

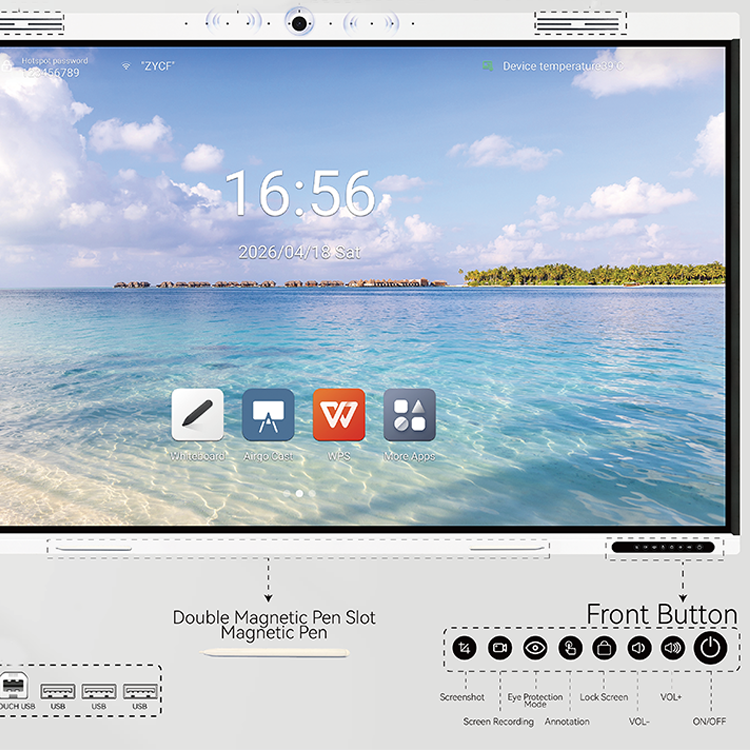

Front 8 Physical Shortcut Keys
Dedicated keys for screenshot, screen recording, eye-protection, annotation, lock, volume ±, and power. One press, zero delay.
100-Point Infrared Touch
±1 mm accuracy, ≤6 ms response, with palm rejection. Flawless multi-user writing and annotation.
4K Anti-Glare Display
500 cd/m² brightness, 85% NTSC, 10.07B colors, and 7H hardness tempered glass – clear, comfortable, and tough.

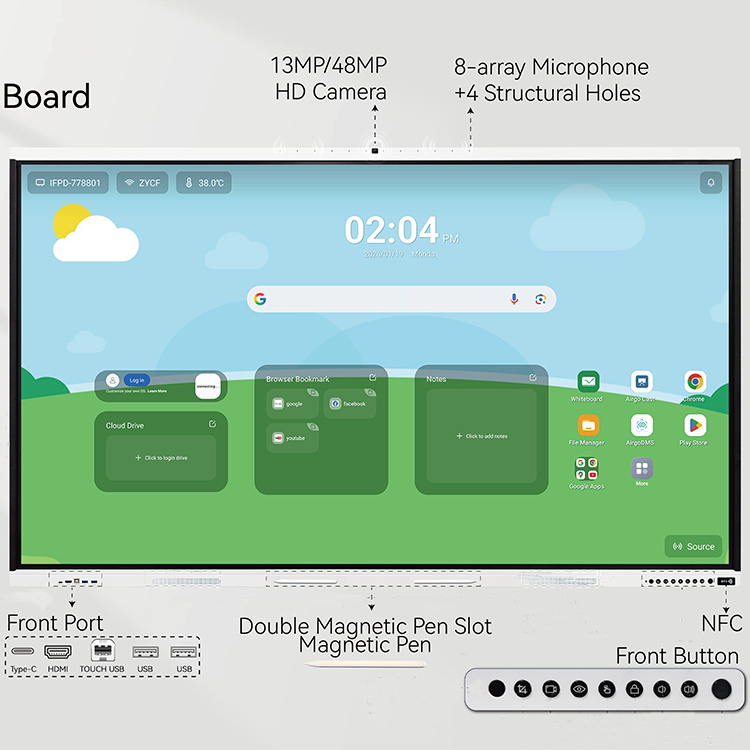

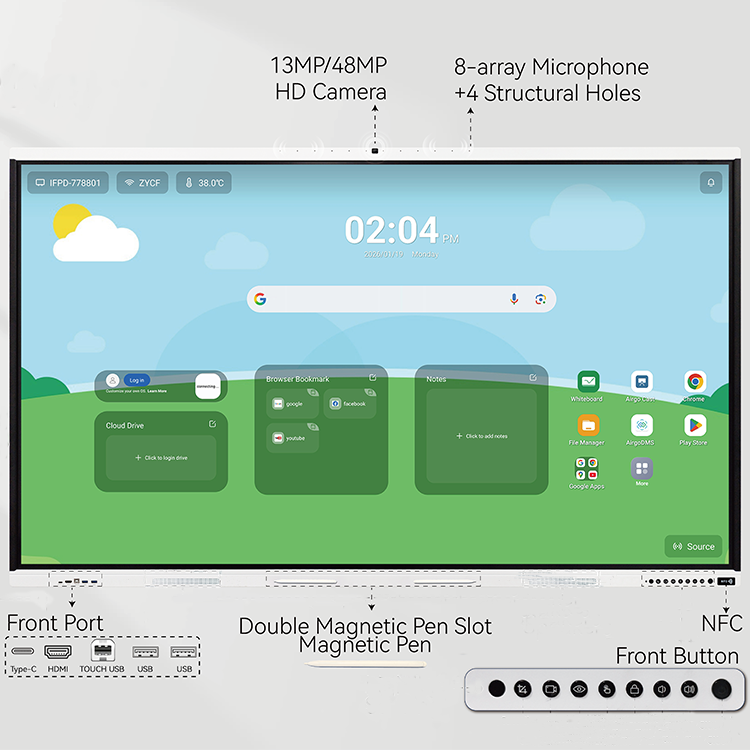

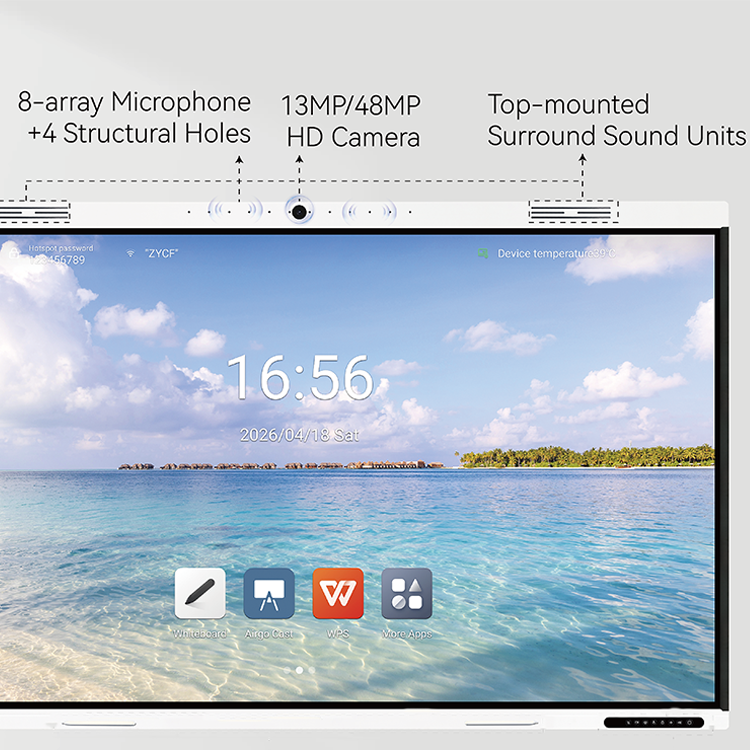

HD Camera + 8-Array Microphone
48MP (optional 13MP) camera with 8-array far-field mic and additional acoustic structure holes for superior room-wide voice pickup.
Dual Magnetic Stylus Holders & Premium Build
Ivory white + matte black two-tone, full-aluminium + zinc-alloy corners. Dual stylus slots keep pens accessible and tidy.
SPECIFICATIONS
|
Product Features |
Size Resolution Color Backlight Brightness Resolution Audio Systems |
55”/65”/75”/85”/86”/98” 4K (3840*2160P) Ivory white 85% NTSC ≥450 cd/m² 4K (3840*2160P) 2*10W/2*15W (Optional) Android + Windows |
|
Android System |
Operating System Chip Solution CPU GPU RAM Storage Memory |
Android 14.0 RK3576 A72 x4 + A53 x4 G52 MC3 8GB/16GB（Optional） 64GB/128GB/256（Optional） |
|
Windows System |
Operating System CPU RAM Storage Memory GPU |
Windows 7/10/11 Intel® Core™ i5 (i7 Optional) 8GB/16GB/32GB 128G/256G/512G/1T SSD Intel® UHD Graphics, Supporting 3840×2160P (4K) |
| Product Parameters | ||||||
| Product Dimensions | 55” | 65” | 75” | 85” | 86” | 98” |
| Display Size (mm) | 1212*682 | 1431*805 | 1652*930 | 1874*1055 | 1897*1068 | 2161*1216 |
| Overall Dimensions (mm) | 1266*778*85 | 1486*903*106 | 1708*1028*106 | 1954*1168*106 | 1954*1168*106 | 2218*1321*106 |
| Packaging Dimensions (mm) | 1370*920*200 | 1600*1000*200 | 1850*1155*225 | 2110*1285*225 | 2110*1285*225 | 2370*1450*230 |
| Mounting Hole Spacing (mm) | 400*400 | 500*400 | 600*400 | 800*400 | 800*400 | 1000*400 |
| Thickness with Mount (mm) | 108 | 132 | 134 | 140 | 140 | 145 |
| Net Weight of Unit (kg) | 23 | 32 | 43 | 55 | 55 | 86 |
| Gross Weight (kg) | 31 | 42 | 55 | 75 | 75 | 110 |
| Service Life (h) | ≥50,000 h | |||||
| Input Voltage (V) | AC 90~264~（50/60Hz） | |||||
| Power Consumption (W) | 134 | 150 | 165 | 230 | 230 | 390 |
