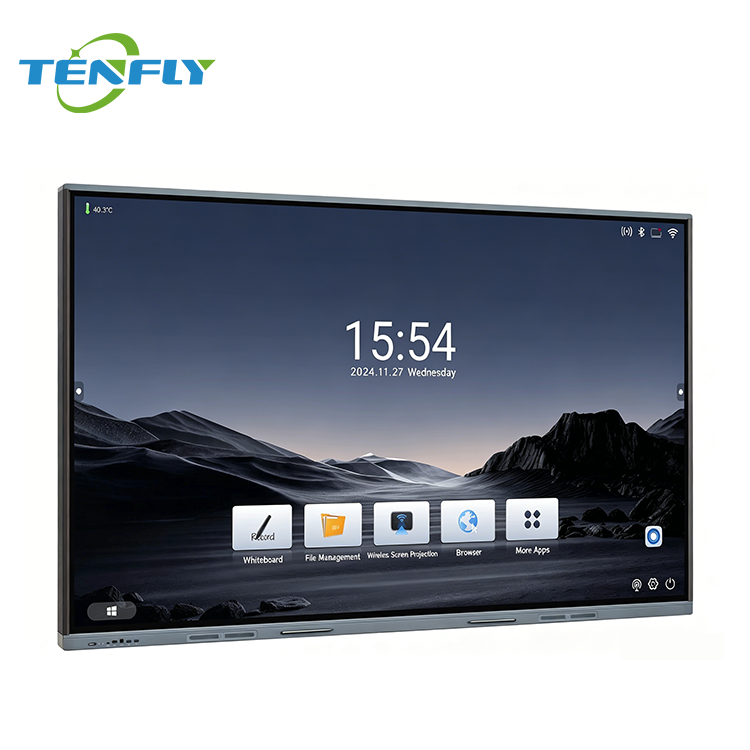

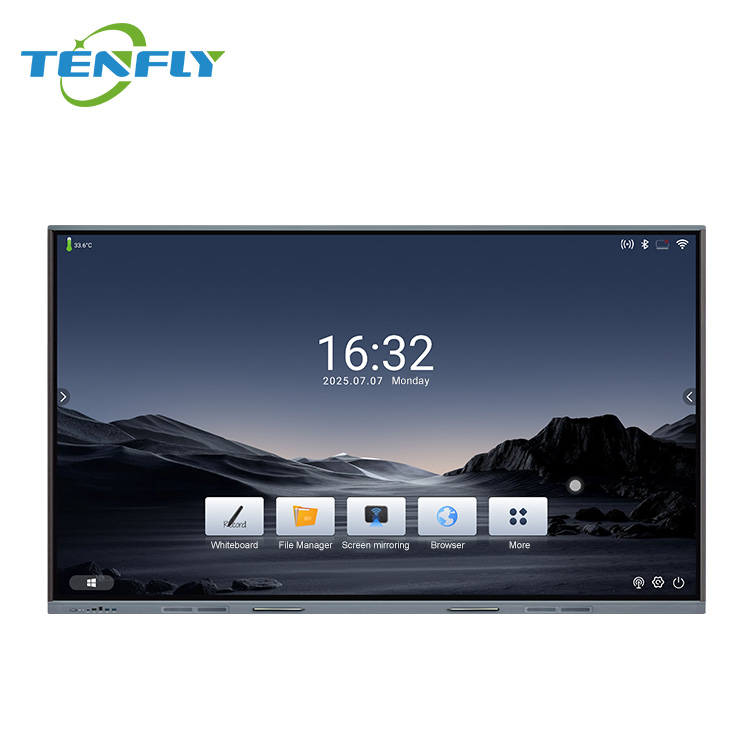

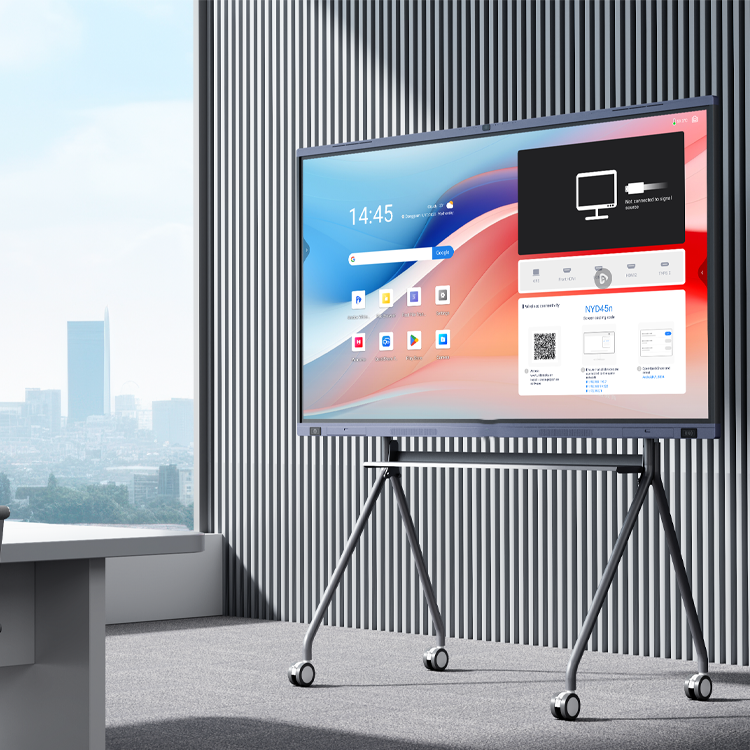

Tenfly H1 Series 4K Smart Interactive Flat Panel Display
Certified OEM/ODM Interactive Display Manufacturer with Google EDLA Support
- Google EDLA Certified Android 14 System with Native Google Ecosystem Access
- RK3576 Octa-Core Platform with Optional High-Capacity RAM & Storage
- 4K Ultra HD Interactive Display Available from 55” to 98”
- Android & OPS Windows Dual-System Architecture for Flexible Deployment

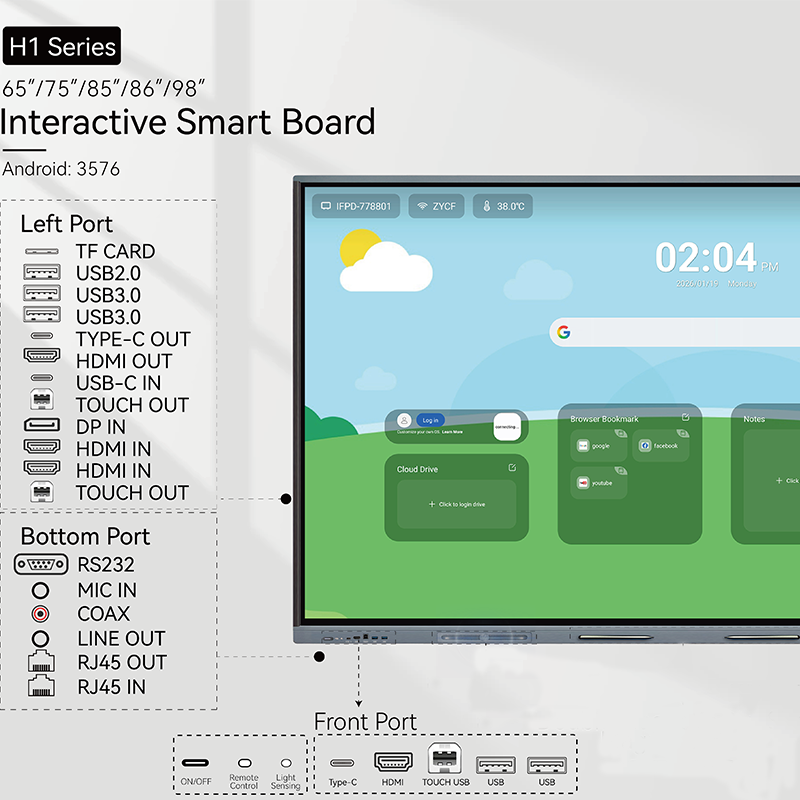

- Rich Front & Side Connectivity Including Type-C, HDMI, DP & Touch Interfaces
- Built-in Magnetic Pen Design with Integrated Smart Meeting & Collaboration Functions
Overview

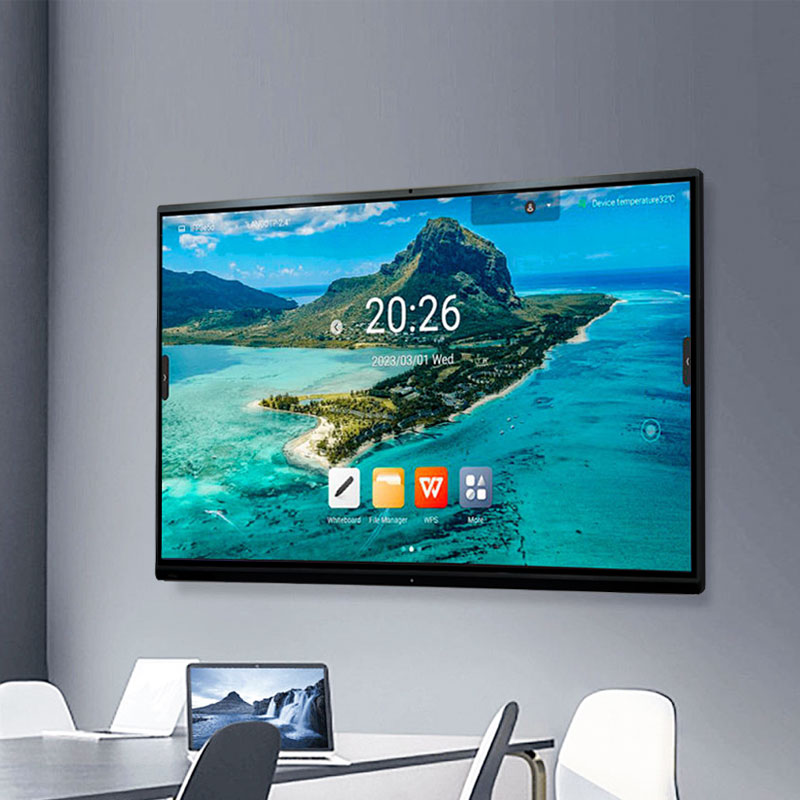

The H1 Series Interactive Flat Panel is designed to redefine modern collaboration with a smarter, cleaner, and more efficient meeting experience. EDLA-certified and built for today’s digital workplace, the H1 Series combines elegant industrial design with intuitive interaction to bring seamless communication and dynamic teamwork into every conference room and classroom.
With a natural writing experience, effortless connectivity, and access to the secure Google ecosystem, the H1 Series empowers teams to share ideas, collaborate freely, and engage more effectively. Designed for modern business and education environments, it delivers a professional and intelligent all-in-one collaboration solution.
Key Features
Precision 40-Point Touch
Highly responsive infrared touch technology delivers smooth writing, accurate annotation, and seamless multi-user collaboration.
Brilliant 4K UHD Display
Featuring vivid 4K ultra-HD visuals with high-brightness performance for clear, vibrant, and immersive viewing experiences.
Anti-Glare Eye-Care Screen
Equipped with anti-glare tempered glass to reduce reflections and deliver comfortable long-time viewing.
Premium Industrial Design
Designed with a modern space gray and matte black finish, combined with a durable aluminum alloy frame.

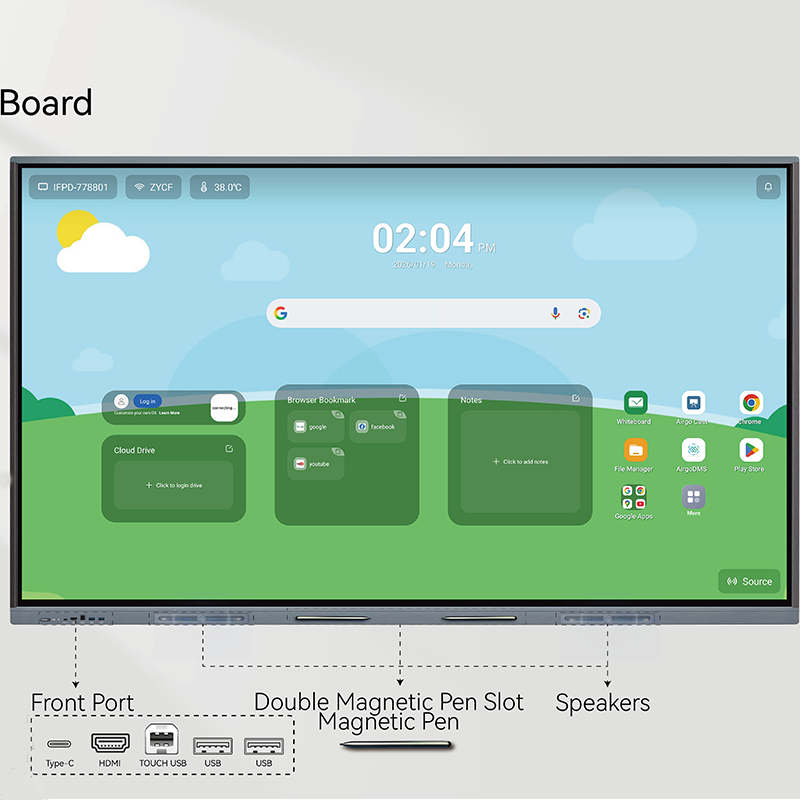

Magnetic Pen Tray Design
Integrated dual magnetic pen holders keep styluses organized, accessible, and ready for efficient collaboration.
Front-Facing Multi-Port Connectivity
Convenient front-access Type-C, HDMI, and USB ports enable fast and seamless device connection.
SPECIFICATIONS
|
Product Features |
Size Resolution Color Backlight Brightness Resolution Audio Systems |
55”/65”/75”/85”/86” 4K (3840*2160P) Space Gray 85% NTSC ≥ 350 cd/m² 4K (3840*2160P) 210W/215W (Optional) Android + Windows |
|
Android System |
Operating System Chip Solution CPU GPU RAM Storage Memory |
Android 14.0 GKV V100 8×A55, Main Frequency 1.2GHz Mali-G52 MP2 4GB/8GB（Optional） 32GB/128GB（Optional） |
|
Windows System |
Operating System CPU RAM Storage Memory GPU |
Windows 7/10/11 Intel® Core™ i5 (i7 Optional) 8GB/16GB/32GB 128G/256G/512G/1T SSD Intel® UHD Graphics, Supporting 3840×2160P (4K) |
| Product Parameters | |||||
| Product Dimensions | 55” | 65” | 75” | 85” | 86” |
| Display Size (mm) | 1212*682 | 1431*805 | 1652*930 | 1874*1055 | 1897*1068 |
| Overall Dimensions (mm) | 1266*763*85 | 1486*888*106 | 1708*1013*106 | 1954*1153*106 | 1954*1153*106 |
| Packaging Dimensions (mm) | 1370*920*200 | 1600*1000*200 | 1850*1155*225 | 2110*1285*225 | 2110*1285*225 |
| Mounting Hole Spacing (mm) | 400*400 | 500*400 | 600*400 | 800*400 | 800*400 |
| Thickness with Mount (mm) | 108 | 132 | 134 | 140 | 140 |
| Net Weight of Unit (kg) | 22 | 31 | 42 | 54 | 54 |
| Gross Weight (kg) | 30 | 41 | 54 | 74 | 74 |
| Service Life (h) | ≥50,000 h | ||||
| Input Voltage (V) | AC190~264~（50/60Hz） | ||||
| Power Consumption (W) | 134 | 150 | 165 | 230 | 230 |
