Tenfly Interactive Whiteboard

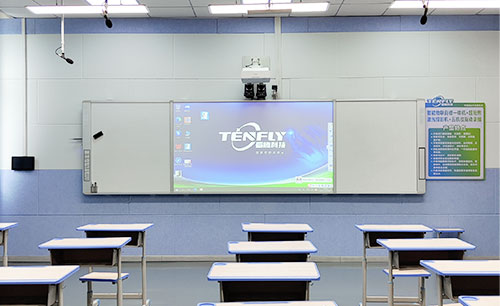

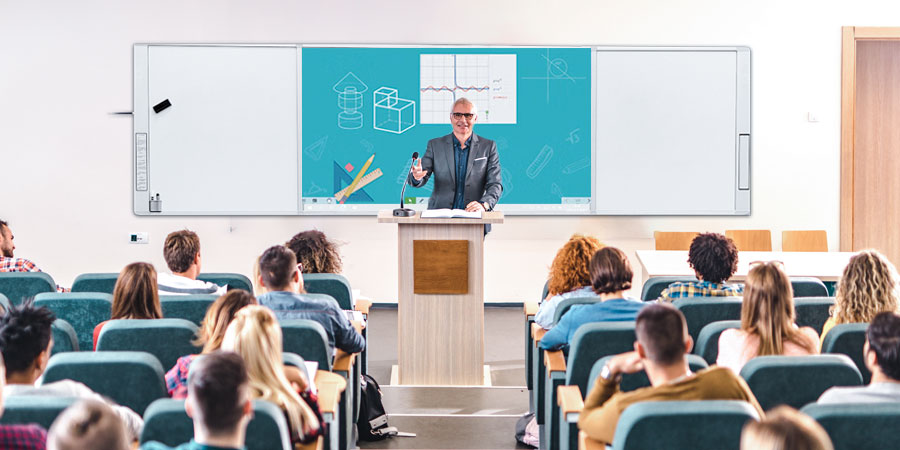

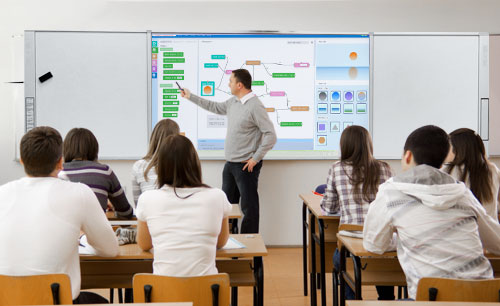

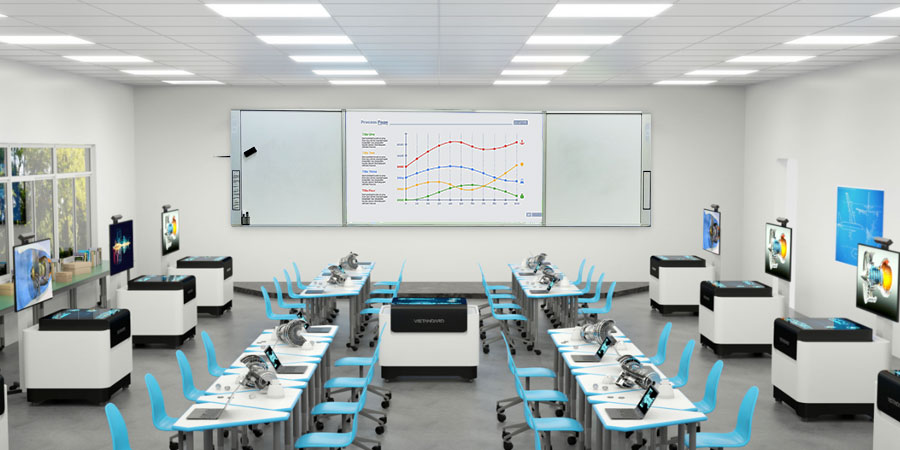

Engaging Scenarios, One Integrated System

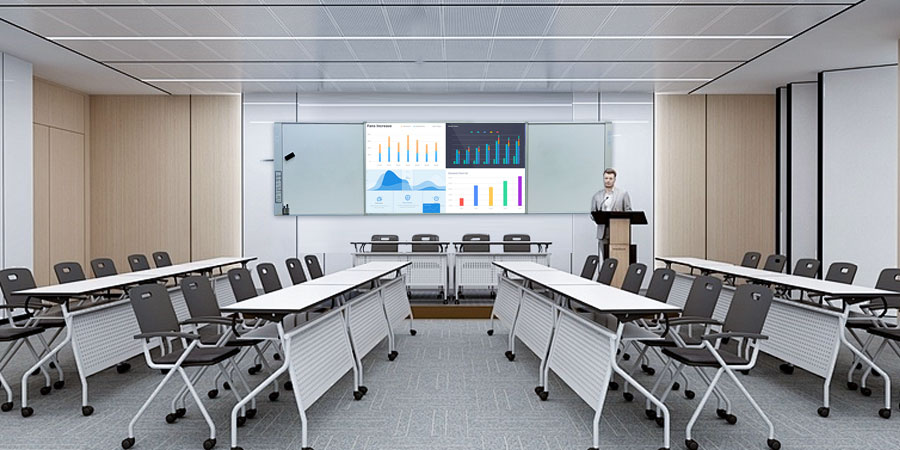

Step into a modern learning or training space where writing, presenting, projecting, recording, and managing converge into one harmonious ecosystem.
Functional Highlights — Benefit-Driven Narration
For Educators & Presenters
- Write, annotate, and project with fluidity—no lag, no fuss.
- Wireless content sharing from any device—instant, smooth.

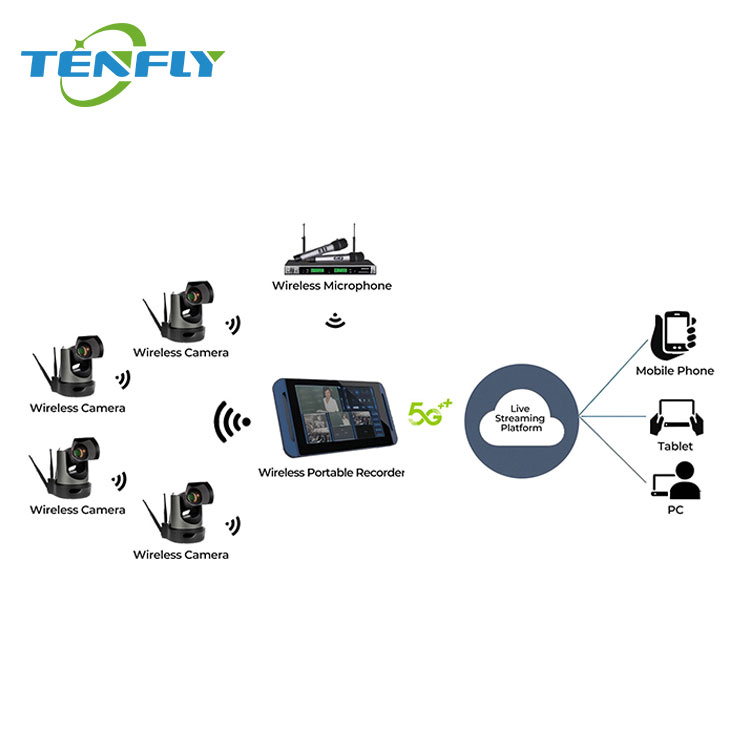

- With one smart podium, control all equipment, record sessions, and seamlessly save lessons to the cloud.
For Learners & Attendees
- Crystal-clear visuals and audio ensure every detail is visible and audible.

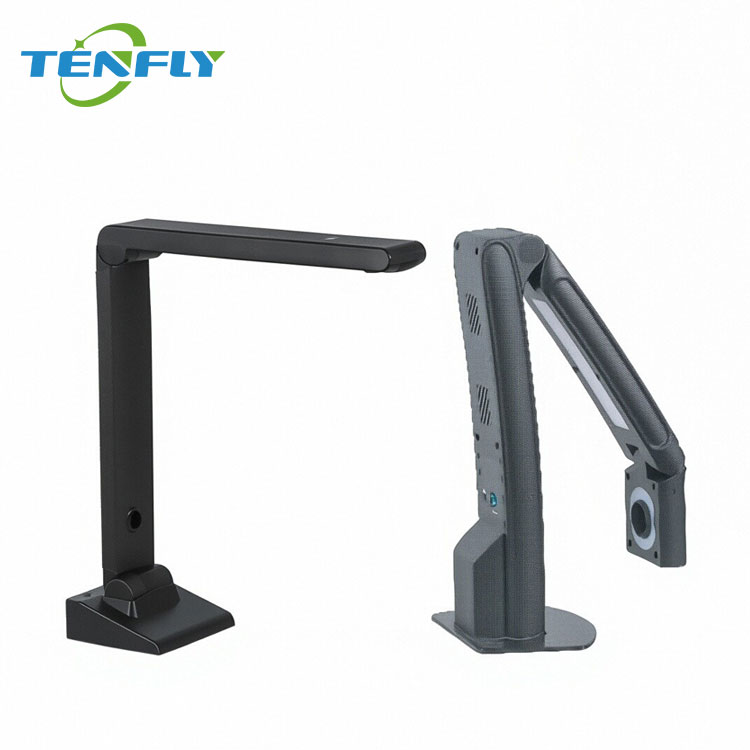

- Interactive writing and live demos via visualizer boost attention and retention.
- Recording and cloud sharing empower review and flexible access.
For IT Managers & Integrators
- Efficient central control via IoT platform—monitor device status, schedule power, and broadcast updates remotely.
- Modular OPS design and easy-maintenance components reduce downtime and servicing costs.
Key Features

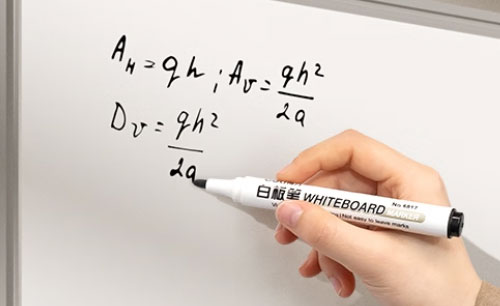

Smooth Touch & Writing
Ultra-responsive touch experience ensures natural handwriting and precise annotation.

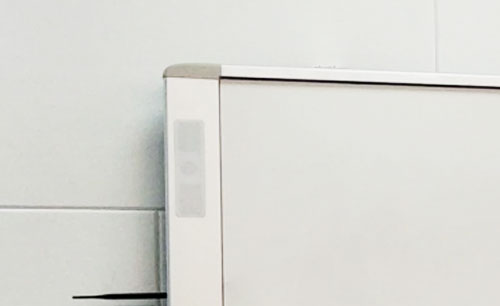

Ultra-Narrow Bezel, Maximum Utilization
Proprietary aluminum alloy structure with only 3.6% edge margin — 96.4% screen usability.

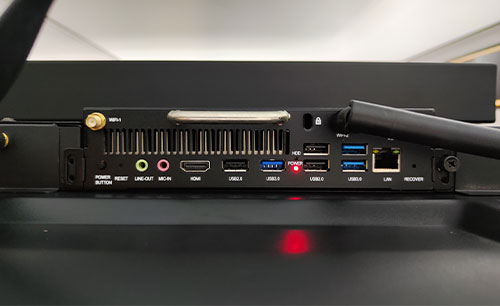

OPS Standard Interface
Simplified modular connection between control board and PC via OPS slot, no complex wiring.

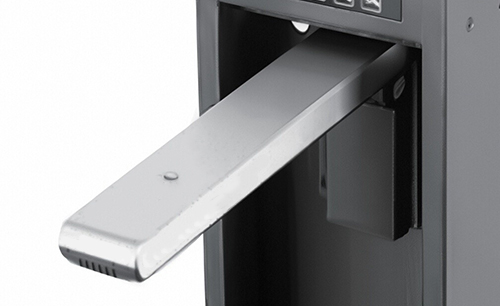

Drawer-Style Design

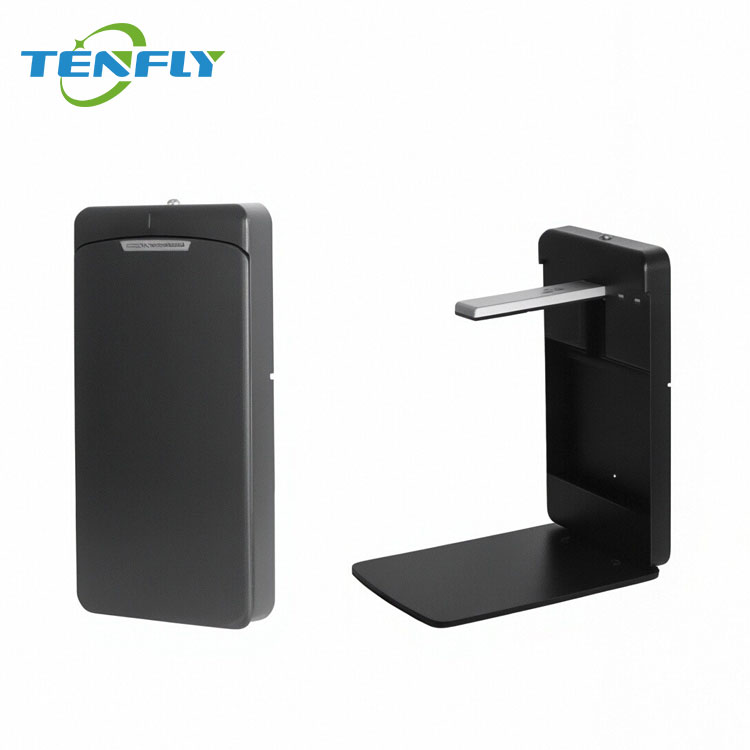

Control box & visualizer adopt a pull-out design — easy maintenance without disassembling the whiteboard.
Waterproof & Durable
Corner-protected aluminum profile prevents accidental water damage to infrared circuits.

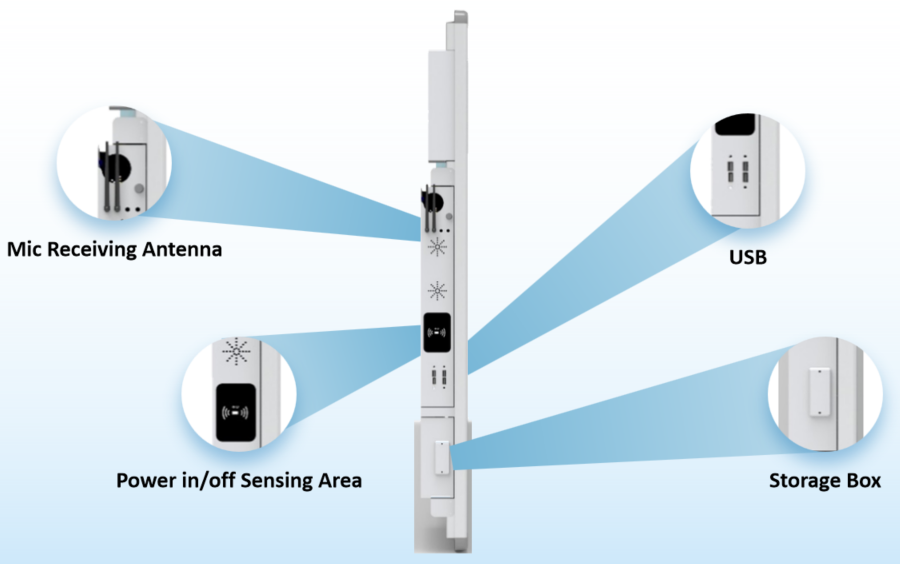

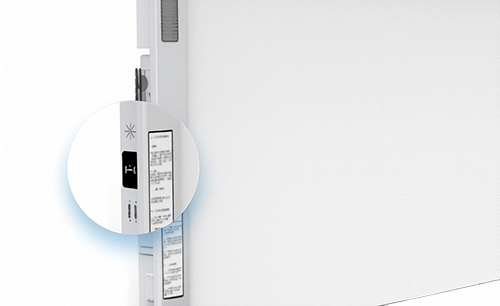

Card-Swipe Power System
Secure & convenient, compatible with campus ID cards and bank cards.

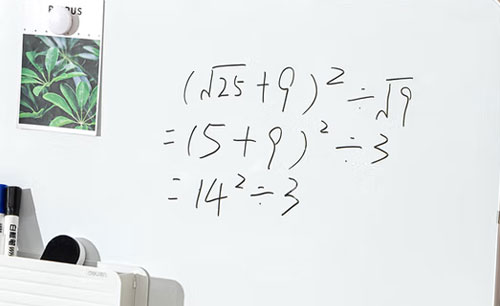

Premium Enamel Surface(for our enamel surface whiteboard)
Imported enamel panel — scratch-resistant, easy to clean, no ghosting.

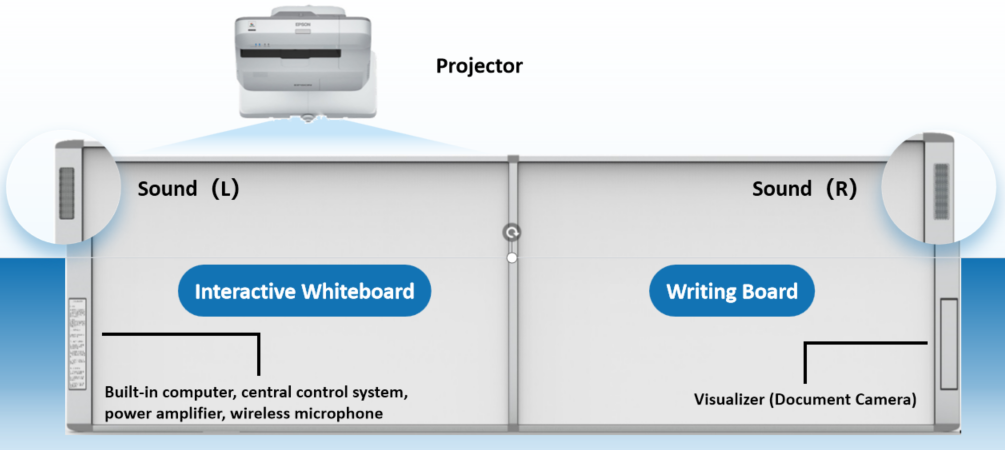

Seamless Integration
Touch board and writing panel share the same bezel — aesthetically unified and user-friendly.
Specifications
| Model | ST-IWB77 | ST-IWB80 | ST-IWB86 |
| Size | 77″ | 80″ | 86″ |
| Effective Projection Ratio | 4:3 | 4:3 | 16:10 |
| Outer Frame Material | aluminum alloy (Silvery white) | ||
| Panel Material | Ordinary panel + aluminum honeycomb + galvanized sheet; Enamel panel + aluminum honeycomb + galvanized sheet; Ordinary panel + extruded sheet + galvanized sheet; Enamel panel + extruded board + galvanized board | ||
| Characteristics | Anti-impact, high and low temperature, UV aging, ionizing radiation, scratch resistance, waterproof, dead point prevention, electrostatic discharge immunity, easy to wipe, electromagnetic compatibility characteristics | ||
| Supported Operating Systems | WIN8,WIN7,WIN2000/XP/Vista, Linux, Mac OS, Android | ||
| Communication Modes | USB2.0 FS, WIN series driver-free, Android, Linux provide drivers | ||
| Sensing Objects | Opaque objects such as fingers and pens | ||
| Positioning Technology | Non-contact infrared sensing positioning technology | ||
| Response Time | Multipoint mode: Click: 15ms Continuous: 8ms | ||
| Single point mode: Click: 13ms Continuous: 3ms | |||
| Cursor Speed | Highest with 300point/Second | ||
| Effective Touch Size | ≥ Ø8mm | ||
| Multipoint Support | Support 20 points | ||
| Voltage | DC 5.0V±5% | ||
| Power Consumption | 200mA DC 5V | ||
| Temperature | Operating temperature:-20°C ~ 60°C | ||
| Storage temperature:-30°C ~ 85°C | |||
| Humidity | Operating humidity:20% ~90% | ||
| Storage humidity: 10%~90% | |||
| Touch Diagonal Area | 2014.57mm（79.3” (including shortcut keys) | 2098.04mm (82.6” including shortcut keys) | 2275.78mm（89.59” including shortcut keys) |
| Dimensions (mm) | 1710 x 1240 x 30 | 1777 x 1290 x 30 | 2022 x 1240 x 30 |
| Packing Dimensions (mm) | 1770 x 1380 x 85 | 1830 x 1340 x 80 | 2060 x 1380 x 85 |
| Weight (gross) | 20 KG (net weight 16 KG) | 28 KG (net weight 24 KG) | 27 KG (net weight 23 KG) |
| Model | ST-IWB88 | ST-IWB90 | ST-IWB94 |
| Size | 88″ | 90″ | 94″ |
| Effective Projection Ratio | 4:3 | 16:10 | 16:9 |
| Outer Frame Material | aluminum alloy (Silvery white) | ||
| Panel Material | Ordinary panel + aluminum honeycomb + galvanized sheet; Enamel panel + aluminum honeycomb + galvanized sheet; Ordinary panel + extruded sheet + galvanized sheet; Enamel panel + extruded board + galvanized board | ||
| Characteristics | Anti-impact, high and low temperature, UV aging, ionizing radiation, scratch resistance, waterproof, dead point prevention, electrostatic discharge immunity, easy to wipe, electromagnetic compatibility characteristics | ||
| Supported Operating Systems | WIN8,WIN7,WIN2000/XP/Vista, Linux, Mac OS, Android | ||
| Communication Modes | USB2.0 FS, WIN series driver-free, Android, Linux provide drivers | ||
| Sensing Objects | Opaque objects such as fingers and pens | ||
| Positioning Technology | Non-contact infrared sensing positioning technology | ||
| Response Time | Multipoint mode: Click: 15ms Continuous: 8ms | ||
| Single point mode: Click: 13ms Continuous: 3ms | |||
| Cursor Speed | Highest300point/Second | ||
| Effective Touch Size | ≥ Ø8mm | ||
| Voltage | DC 5.0V±5% | ||
| Power Consumption | 200mA DC 5V | ||
| Multipoint Support | Support 20 points | ||
| Temperature | Operating temperature:-20°C ~ 60°C | ||
| Storage temperature:-30°C ~ 85°C | |||
| Humidity | Operating humidity:20% ~90% | ||
| Storage humidity: 10%~90% | |||
| Touch Diagonal Area | 2306.32mm (90.8” including shortcut keys) | 2369.82mm (93.3” including shortcut keys) | 2456.18mm（96.7” including shortcut keys) |
| Dimensions (mm) | 1943 x 1415 x 30 | 2102 x 1290 x 30 | 2230 x1240 x 30 |
| Packing Dimensions (mm) | 1995 x 1445 x 80 | 2369 x 1340 x 80 | 2280 x1290 x 85 |
| Weight (gross) | 28 KG (net weight 24 KG) | 28 KG (net weight 24 KG) | 28 KG (net weight 24 KG) |
| Model | ST-IWB98 | ST-IWB110 | ST-IWB120 |
| Size | 98″ | 110″ | 120″ |
| Effective Projection Ratio | 16 : 9 | 16 : 9 | 16 : 9 |
| Outer Frame Material | aluminum alloy (Silvery white) | ||
| Panel Material | Ordinary panel + aluminum honeycomb + galvanized sheet; Enamel panel + aluminum honeycomb + galvanized sheet; Ordinary panel + extruded sheet + galvanized sheet; Enamel panel + extruded board + galvanized board | ||
| Characteristics | Anti-impact, high and low temperature, UV aging, ionizing radiation, scratch resistance, waterproof, dead point prevention, electrostatic discharge immunity, easy to wipe, electromagnetic compatibility characteristics | ||
| Supported Operating Systems | WIN8,WIN7,WIN2000/XP/Vista, Linux, Mac OS, Android | ||
| Communication Modes | USB2.0 FS, WIN series driver-free, Android, Linux provide drivers | ||
| Sensing Objects | Opaque objects such as fingers and pens | ||
| Positioning Technology | Non-contact infrared sensing positioning technology | ||
| Response Time | Multipoint mode: Click: 15ms Continuous: 8ms | ||
| Single point mode: Click: 13ms Continuous: 3ms | |||
| Cursor Speed | Highest300point/Second | ||
| Effective Touch Size | ≥ Ø8mm | ||
| Multipoint Support | Support 20 points | ||
| Voltage | DC 5.0V±5% | ||
| Power Consumption | 200mA DC 5V | ||
| Temperature | Operating temperature:-20°C ~ 60°C | ||
| Storage temperature:-30°C ~ 85°C | |||
| Humidity | Operating humidity:20% ~90% | ||
| Storage humidity: 10%~90% | |||
| Touch Diagonal Area | 2257.78mm (100.7” including shortcut keys) | 2742.46mm (108″ including shortcut keys) | 2998.11mm (118″ including shortcut keys) |
| Dimensions (mm) | 2319 x 1290 x 30 | 2460 x 1415 x 30 | 2683 x 1540 x 30 |
| Packing Dimensions (mm) | 2369 x 1340 x 80 | 2520 x 1555 x 80 | 2743 x 1680 x 80 |
| Weight (gross) | 28 KG (net weight 24 KG) | ≥30 KG(net weight26KG) | ≥40 KG(net weight36KG) |
OEM & Customization Strengths
Proven OEM Capability
We manufacture for global leaders such as Lenovo, AOC, Asus, ZTE, Great Wall, and more—ensuring mature quality and scalability.
Design & Manufacturing Powerhouse
R&D in Shenzhen paired with high-volume production in Chongqing.
Flexible Customization
Tailor board size/layout, OPS specs, interface assortment, software modules, logos, packaging, and UI branding to match your branding or program.
Cost-Effective at Scale
Our industrial cluster enables competitive pricing without compromising quality.
Customize your smart learning or training environment with Tenfly—partner with us to deliver interactive, scalable, and intelligent whiteboard solutions tailored to your institutional needs.
