IFP-STZH98

Tenfly 98” Ultra HD Interactive Flat Panel Displays

Purpose-Built Interactive Panels, Customized by Tenfly Factory

98″ 4K Ultra HD Large Display + 400cd/m² High Brightness
20-Point High-Precision Infrared Touch (Win) / 20-Point (Android)
Android 14 System with Octa-Core CPU (Up to 8GB+128GB)
4mm AG Anti-Glare Tempered Glass (Mohs 7 Hardness)
4-Way Wireless Screen Mirroring & Multi-Device Collaboration
OPS Dual-System Expansion + Comprehensive Front/Rear Connectivity

Download

Overview

The Tenfly A-Series 98-inch Infrared Touch All-in-One Panel is a flagship interactive display designed for premium conference rooms, lecture halls, and large-scale presentation environments. Featuring a massive 98-inch 4K UHD panel with ≥400cd/m² brightness, Android 14, and 20-point infrared touch, it delivers superior visual clarity and highly responsive interaction for large spaces. Optional 8GB RAM + 128GB ROM and OPS Windows expansion further enhance performance and flexibility, while 4-way wireless casting and extensive connectivity make it an integrated hub for collaboration, teaching, and commercial display applications.

Key Features

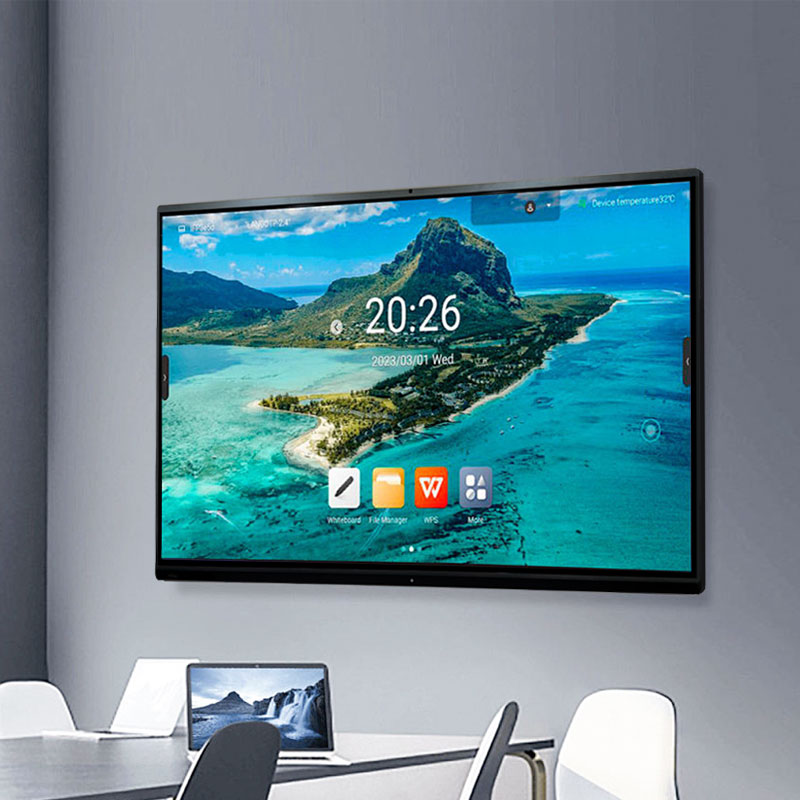

98” 4K UHD Display with High Brightness

Equipped with a 98-inch 4K panel offering ≥400cd/m² brightness, 72% NTSC color gamut, HDR support, and a 178° wide viewing angle, ensuring sharp, vivid, and detailed visuals across large rooms and varying lighting conditions.

20-Point High-Precision IR Touch for Seamless Interaction

Supports 20-point IR touch, paired with 4mm AG anti-glare tempered glass for precise, low-latency writing and smooth multi-user collaboration, including annotation and gesture-based erasing.

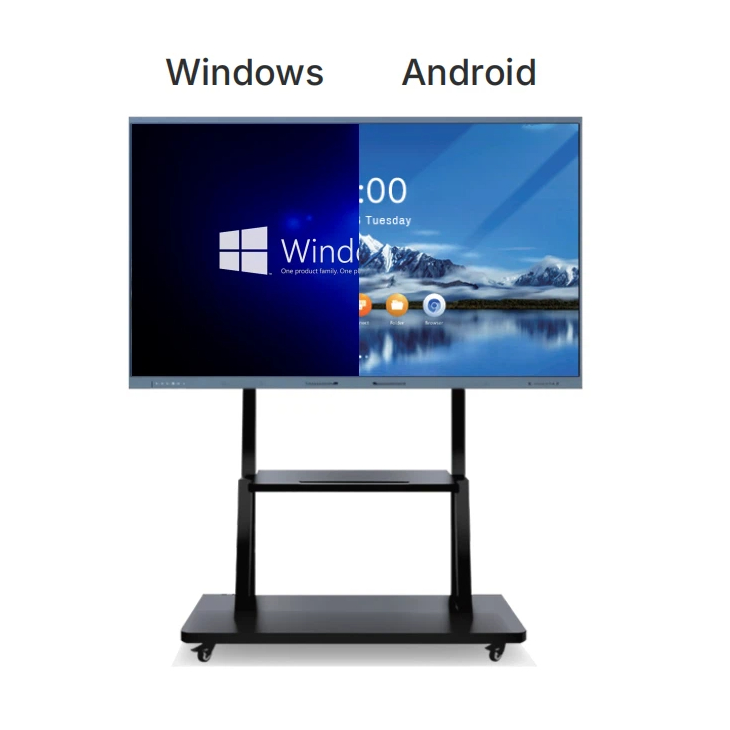

High-Performance Android System with OPS Dual-System Expansion

Powered by an octa-core processor with optional 8GB RAM + 128GB storage, running Android 14. Includes an OPS-C slot for Windows expansion, enabling easy switching between Android and PC systems for advanced software requirements.

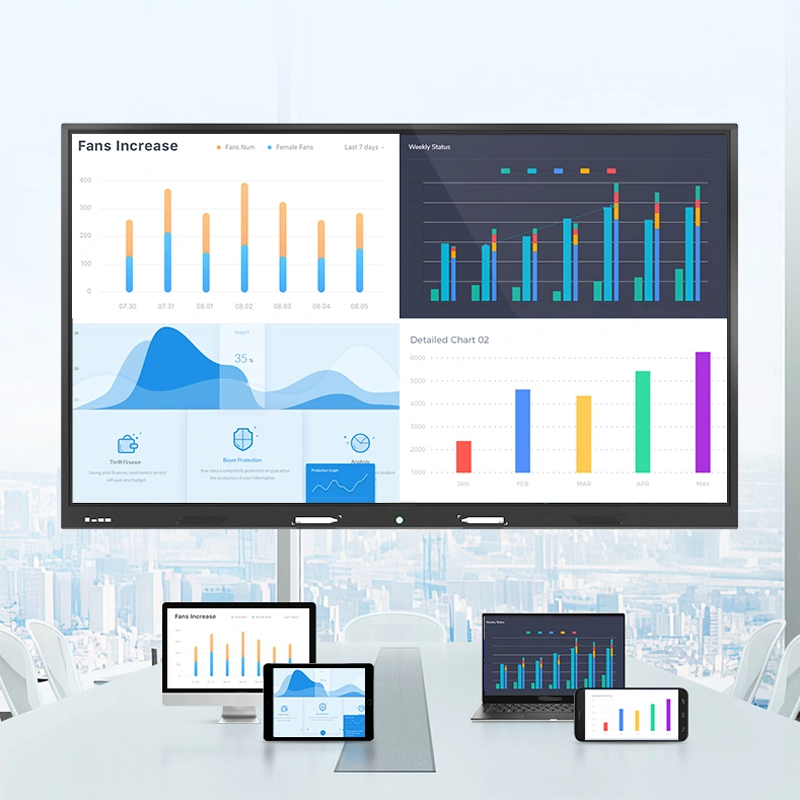

Four-Way Wireless Casting for Efficient Collaboration

Allows up to four devices to cast wirelessly at the same time, supporting screen mirroring, reverse control, and content sharing. Optional 13MP/48MP cameras and an 8-array microphone enable seamless integration for remote conferencing.

Comprehensive Connectivity and Flexible Expansion

Provides front I/O including 3×USB 3.0, HDMI 2.0, and Type-C, plus rear dual HDMI IN, RJ45, RS232, and additional ports for diverse peripheral connections. Optional enhanced storage and camera modules adapt to various deployment needs.

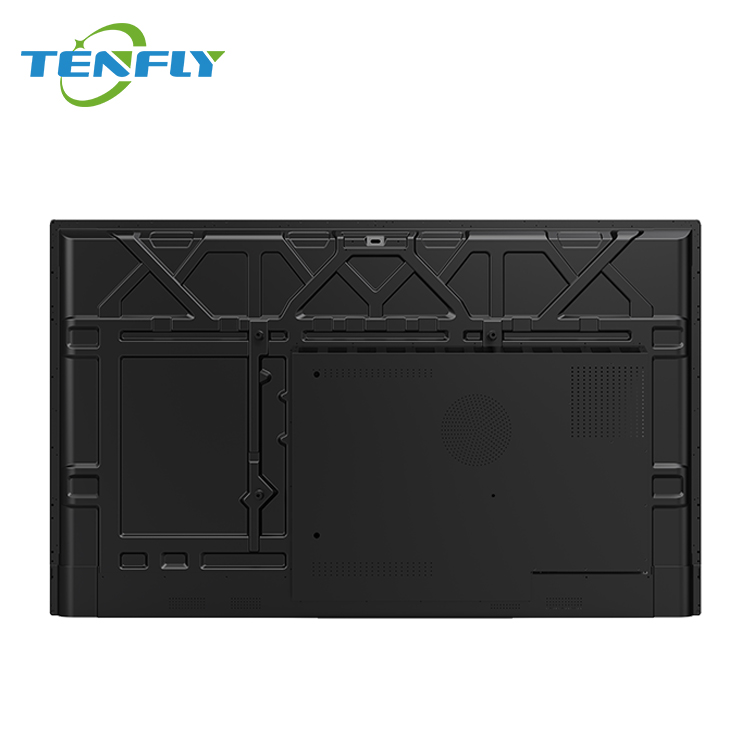

Durable Metal Design with Intelligent Thermal Protection

All-metal chassis with tempered glass ensures durability, while built-in temperature monitoring and protection guarantee long-term stable operation.

Specification

Size	98 inch
Resolution	4k-3840 x 2160
Refresh Rate	60Hz
Aspect Ratio	16:9
Viewing Angle	178° (H/V)
Response Time	≤8ms (typ.)
Contrast Ratio	4000:1
Brightness	350 cd /m²
Brightness Uniformity	75%
Display Color	1.07B
Color Gamut (% NTSC)	72%
HDR	Support
Touch Technology	Infrared
Touch Points	20 touch points
Input Method	Finger or pen
OS	Android 13/14
RAM	4G /8G (optional)
ROM	32 /128 GB(optional)
Cameras	13 /48 million (optional)
Wi-Fi	Built-in WiFi 5/6 (optional)
Microphone	8 Array
Bluetooth	Bluetooth 5.0
Speakers	2×15W
OPS	Supports OPS-C specifications & Optional European standard OPS
Connectivity Ports	Pre: USB3.0 3；HDMI2.0 1；Type C 1 Post: R J45 IN 1；HDMI OUT 1；SPDIF 1； Earphone 1；Touch USB 1；HDM IN 2；Android USB 3.0 1；Android USB 2.0 1；TF 1；RS232 *1
Machine Size without Stand	L2216mmW1318mmH97.6mm
Packing Size	L2356mmW1441.5mmH230mm
Net Weight	92±3KG
Gross Weight	110±3KG

Find Your Tailor-Made Interactive Flat Panel

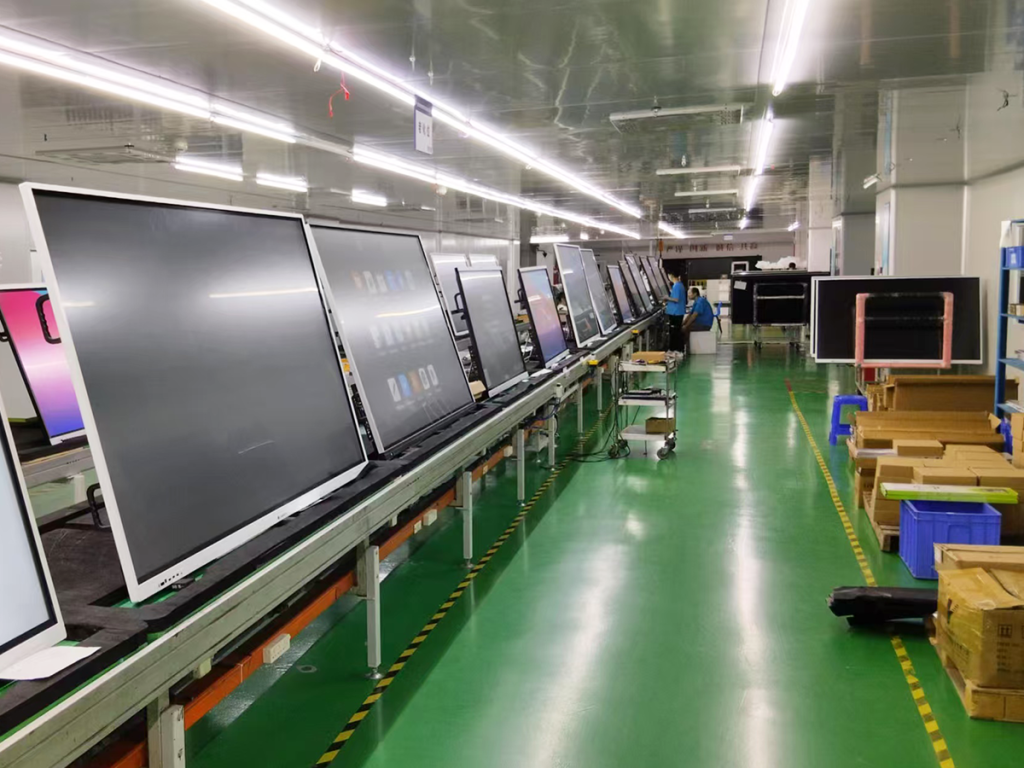

Tenfly offers end-to-end OEM and ODM services for interactive flat panels. With strong R&D and manufacturing capabilities, we partner with you to develop customized display solutions that enhance performance, functionality, and competitiveness in your local market.
