IFP-STZH86

Tenfly 86” 4k Smart Interactive Flat Panels Displays

Streamlined IFPD Production with Complete OEM/ODM Support

86” 4K Ultra HD Large Display + HDR Support
20-Point High-Precision Infrared Touch System
Android 13/14 with Octa-Core Performance CPU
4mm AG Anti-Glare Tempered Glass (Mohs 7 Hardness)
Supports Wireless Screen Mirroring & Multi-Device Collaboration
OPS Dual-System Expansion & Rich Front/Rear Connectivity
Built-in Dual 15W Front-Facing Speakers & Metal Build

Download

Overview

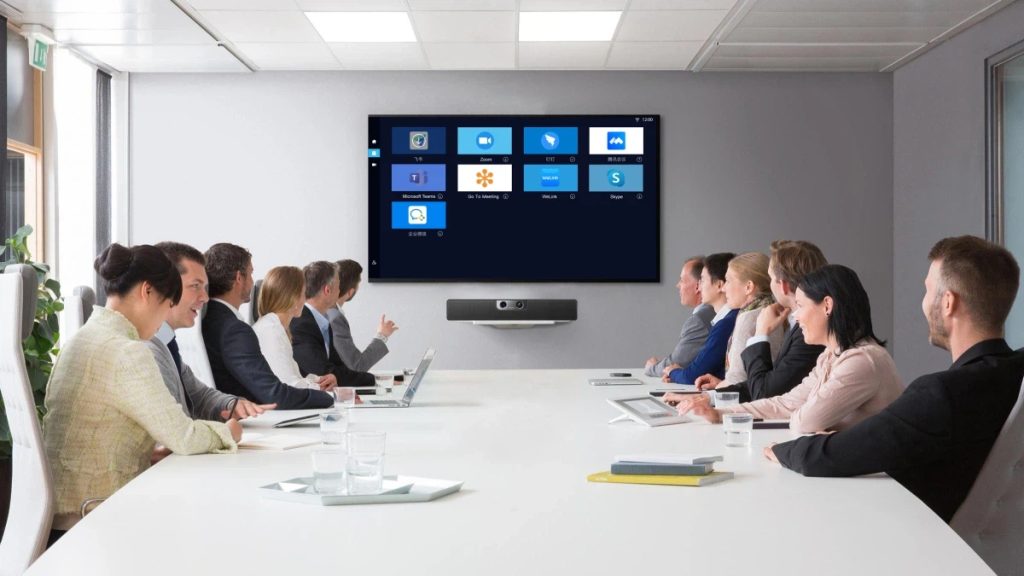

The Tenfly LCD Touchscreen All-in-One IFPD is a professional-grade intelligent interactive display device designed for educational, conference, and government/enterprise applications. The product integrates 4K ultra-high-definition display, high-precision infrared touch control, an Android smart system, and rich teaching and conference application capabilities. Through a stable and reliable hardware structure and comprehensive interface configuration, it meets the needs of high-frequency, multi-user, and long-term use, comprehensively improving information display and interactive collaboration efficiency.

Key Features

86” 4K UHD Display with HDR

All models come standard with 4K UHD industrial-grade A-grade LCD panels, supporting high brightness of 300–350 cd/㎡
, 1200:1 contrast ratio, 72% NTSC wide color gamut and 178° ultra-wide viewing angle, meeting the needs of various spaces and lighting environments such as education, conferences, and exhibition halls.

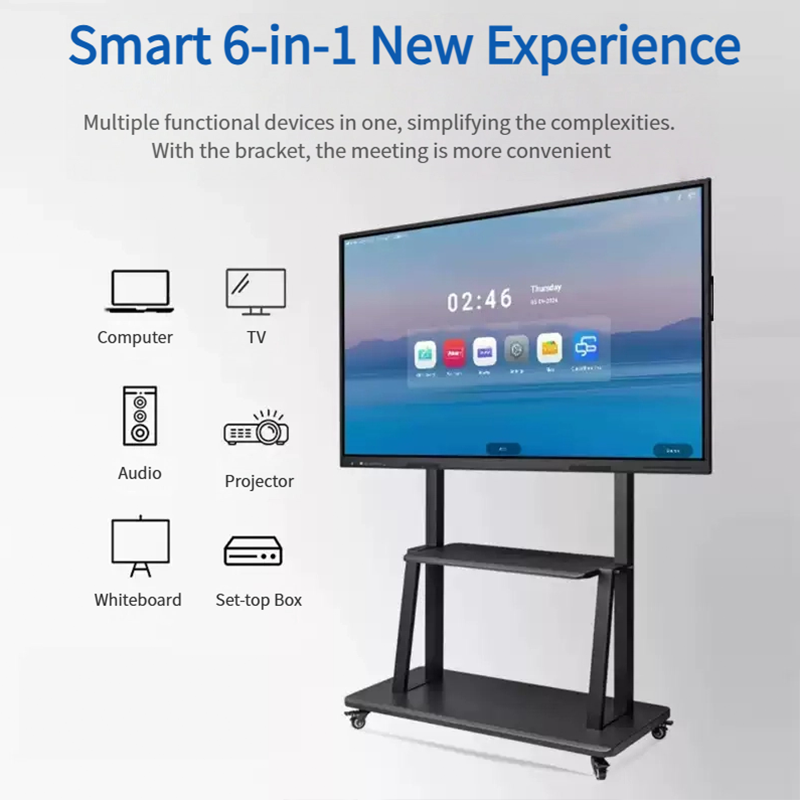

All-in-One Integrated Design

This 86-inch Interactive Flat Panel integrates six essential functions—interactive whiteboard, display, built-in computer, audio system, presentation solution, and set-top box—into one sleek device. This all-in-one design reduces installation complexity, lowers maintenance costs, and minimizes cable clutter, making it ideal for classrooms and meeting rooms.

Android 13/14 System with OPS Expansion

Powered by an octa-core processor with 4GB RAM + 32GB ROM, and supports OPS-C Windows modules for flexible dual-system operation.

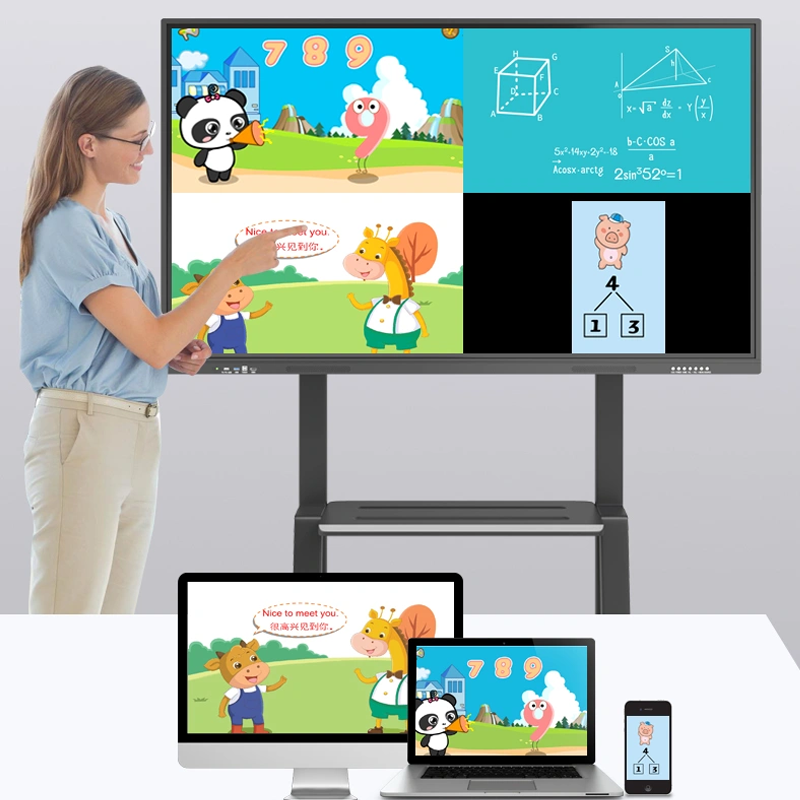

Wireless Screen Sharing & Multi-Device Collaboration

Wi-Fi 5 and Bluetooth 5.0 enable multi-device mirroring, content sharing, and interactive control to enhance group communication and teamwork.

Professional Whiteboard and Full-Channel Annotation

Built-in high-performance electronic whiteboard software, supporting direct annotation of PPT/documents, mind mapping, image recognition, QR code sharing, and one-click annotation from any signal source, significantly improving teaching and presentation efficiency.

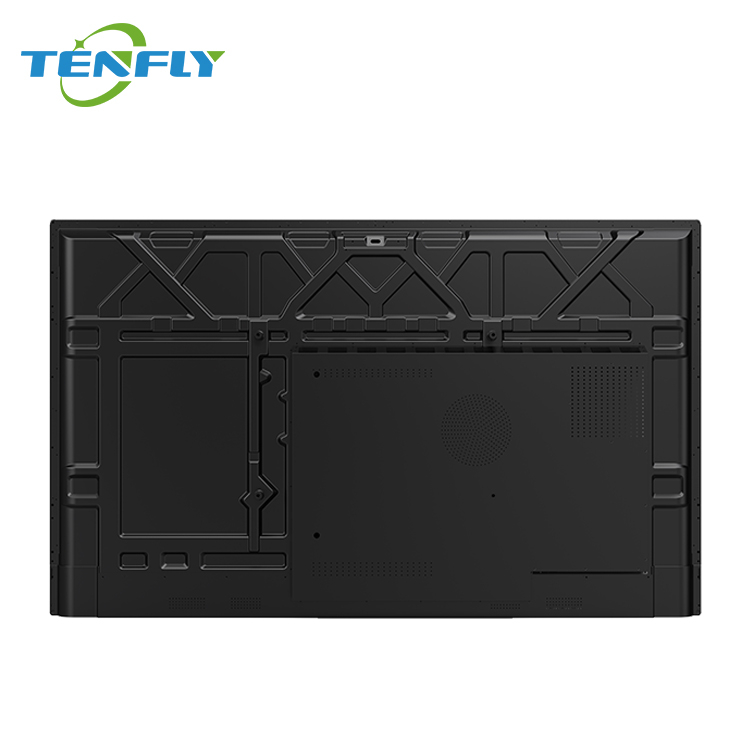

Durable Metal Design with Full Connectivity

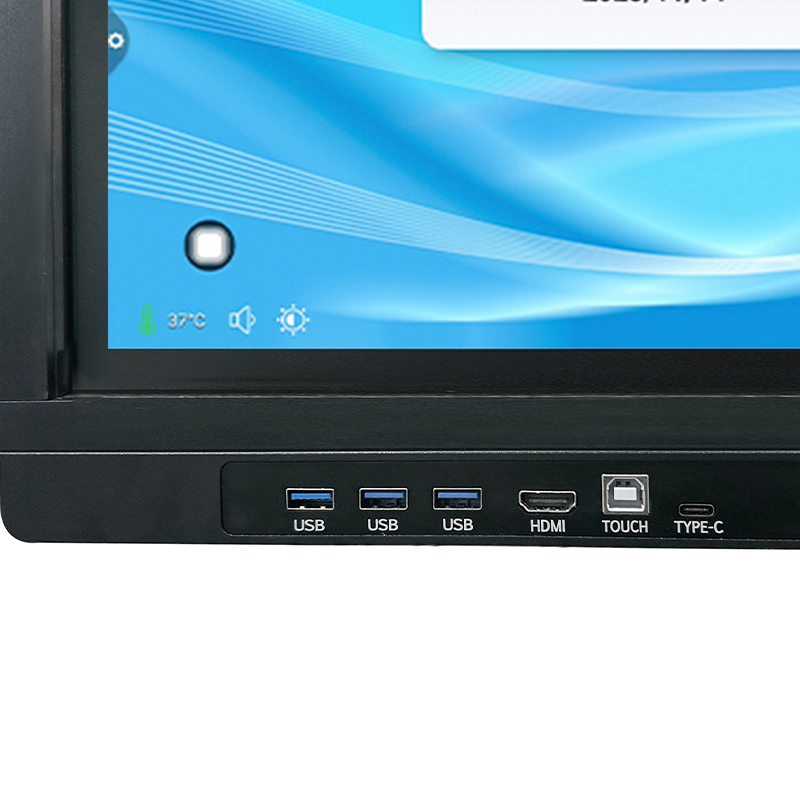

Robust metal chassis with ultra-narrow bezel and extensive front/rear ports (USB 3.0, HDMI, Type-C, RJ45) for seamless device integration.

Specification

Size	86 inch
Resolution	4k-3840 x 2160
Refresh Rate	60Hz
Aspect Ratio	16:9
Viewing Angle	178° (H/V)
Response Time	≤8ms (typ.)
Contrast Ratio	4000:1
Brightness	350 cd /m²
Brightness Uniformity	75%
Display Color	1.07B
Color Gamut (% NTSC)	72%
HDR	Support
Touch Technology	Infrared
Touch Points	20 touch points
Input Method	Finger or pen
OS	Android 13/14
RAM	4G /8G (optional)
ROM	32 /128 GB(optional)
Cameras	13 /48 million (optional)
Wi-Fi	Built-in WiFi 5/6 (optional)
Microphone	8 Array
Bluetooth	Bluetooth 5.0
Speakers	2×15W
OPS	Supports OPS-C specifications & Optional European standard OPS
Connectivity Ports	Pre: USB3.0 3；HDMI2.0 1；Type C 1 Post: R J45 IN 1；HDMI OUT 1；SPDIF 1； Earphone 1；Touch USB 1；HDM IN 2；Android USB 3.0 1；Android USB 2.0 1；TF 1；RS232 *1
Machine Size without Stand	L1953.2mmW1166mmH115.8 mm

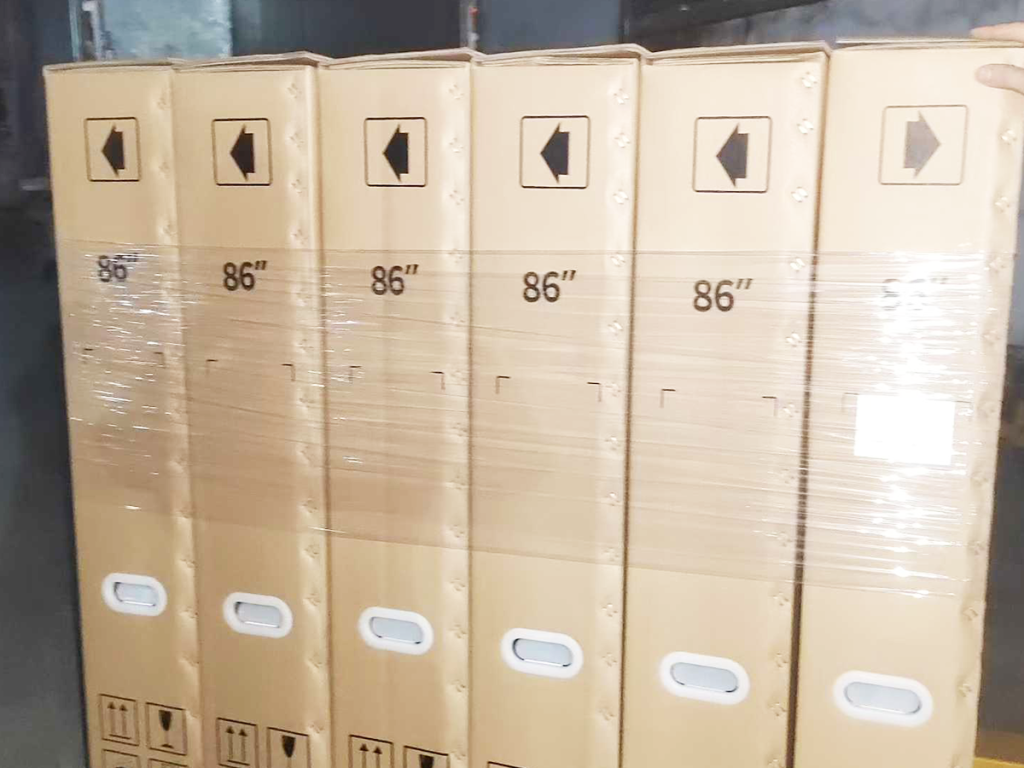

Packing Size	L2060mmW197mmH1265mm
Net Weight	58KG±2KG
Gross Weight	79KG±2KG

Find Your Tailor-Made Interactive Flat Panel

At Tenfly, every interactive panel is a blank canvas. We provide full-scope hardware and software customization—from screen size and port layout to pre-loaded apps and branded interfaces—tailored to your specific needs in education, enterprise, and beyond. Let’s build a solution that truly fits your environment and your vision.
