IFP-STZH75
Tenfly 75” 4K OEM Education Interactive Display(IFPD)
IFP Made to Order—Tenfly Factory Delivers Exactly What You Need
- 75” 4K Ultra HD Display + HDR Support
- 20-Point High-Precision Infrared Touch
- Android 13/14 High-Performance System + Octa-Core CPU
- 4mm AG Anti-Glare Tempered Glass (Mohs 7 Hardness)
- Supports Wireless Screen Mirroring & Multi-Device Collaboration
- OPS Dual-System Expansion + Full Front/Rear Connectivity
Overview
The A-Series 75-inch Infrared led interactive display is a versatile large-format smart display built for advanced teaching, conferencing, and collaborative presentations. Powered by Android 14 with an octa-core processor, it integrates whiteboard, multi-device sharing, annotation, and optional conferencing hardware in one streamlined platform. Its premium metal design, high-precision IR touch, and rich connectivity make it an adaptable solution for classrooms, meeting rooms, and commercial display environments.
Key Features
4K Ultra HD Display with HDR Support
It adopts an industrial-grade Class A LCD panel, supports multiple sizes from 65 to 98 inche, features 4K ultra-high-definition resolution, 300–350 cd/m² brightness and 178° ultra-wide viewing angle, providing stable and clear images, suitable for high-frequency commercial and educational scenarios.

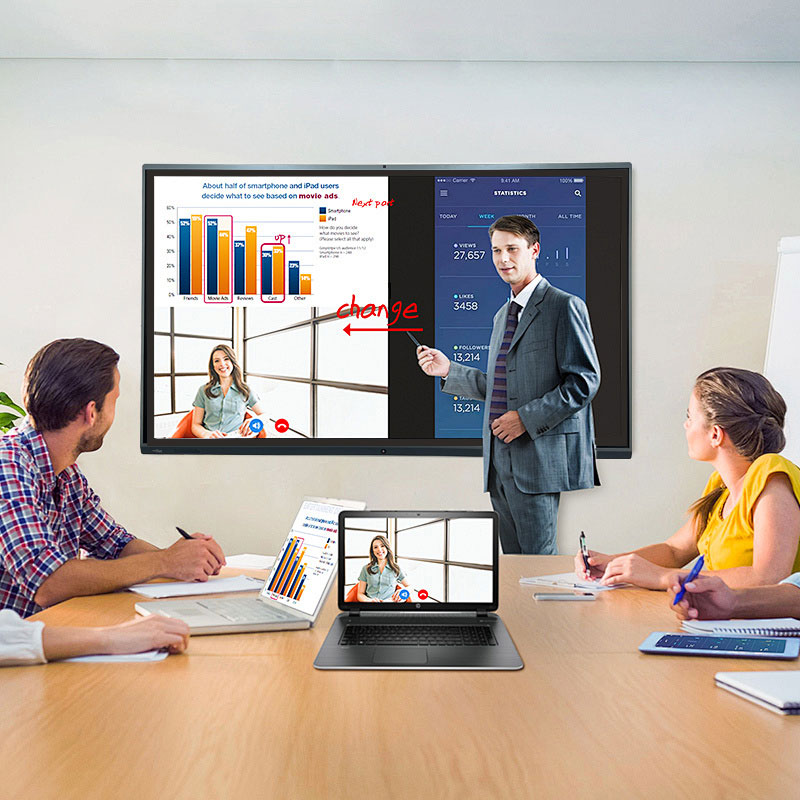

Precision Infrared Touch for Multi-User Collaboration
Featuring a front-opening infrared touch system with up to 20-point support and ±1mm accuracy, the display enables multiple users to write and interact simultaneously across different screen areas, supporting seamless collaborative teaching, group discussions, and brainstorming sessions.

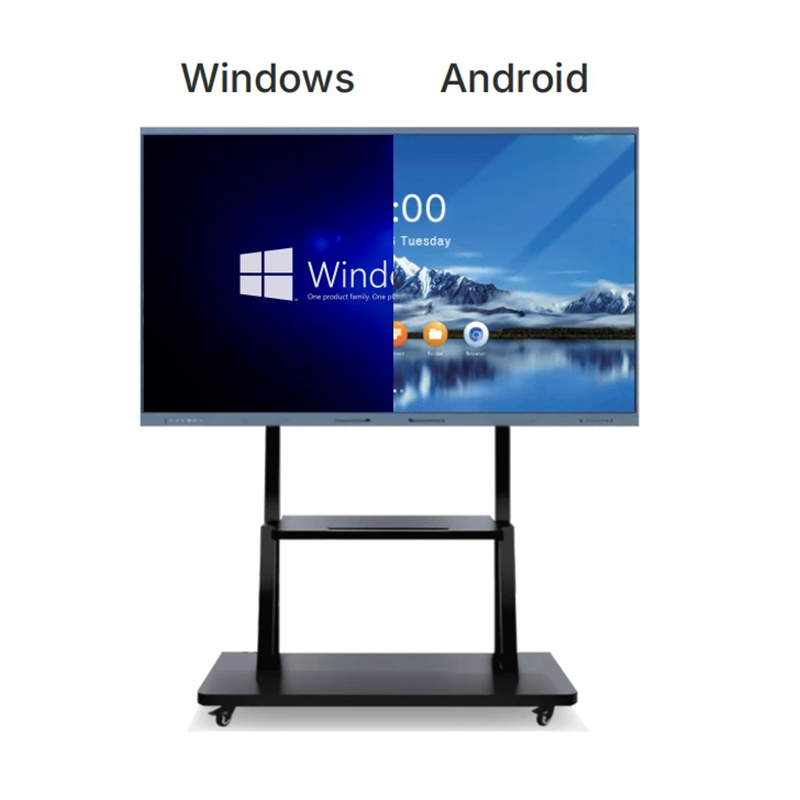

Android 14 Performance with Dual-System Expansion
Powered by an octa-core GK6780 processor with 4GB RAM + 32GB ROM, and supports OPS Windows modules for flexible Android/Windows dual-system operation.

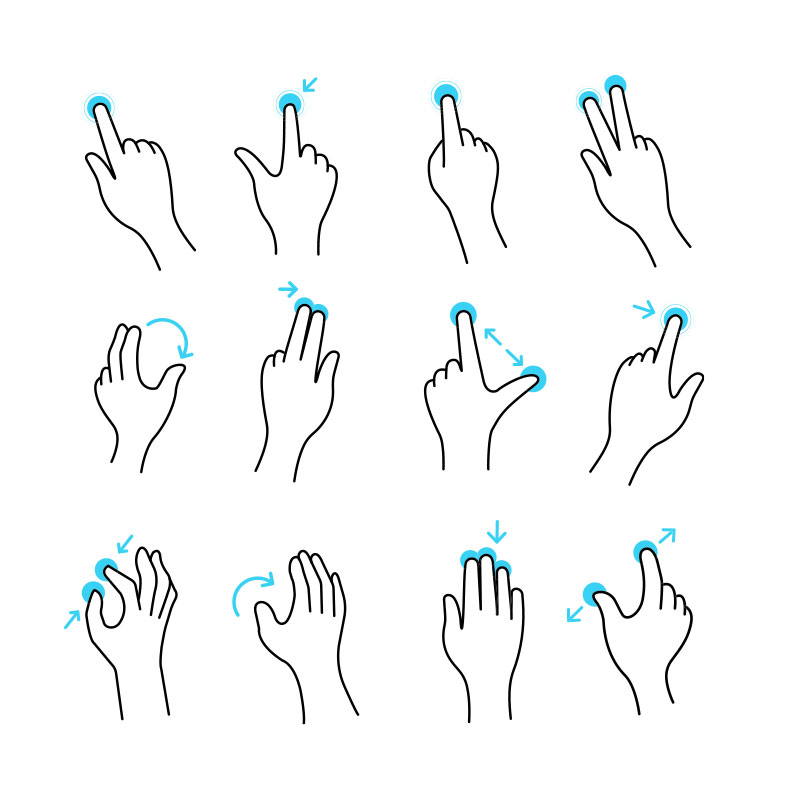

Intelligent Gestures and Efficient Interactive Experience
Supports various quick gestures such as five-finger screen-off/wake-up and three-finger follow, and integrates intelligent functions such as full-channel annotation, ambient light adaptation, and temperature control monitoring to create an intuitive, efficient, and smooth human-computer interaction experience, improving usage efficiency and collaboration experience.

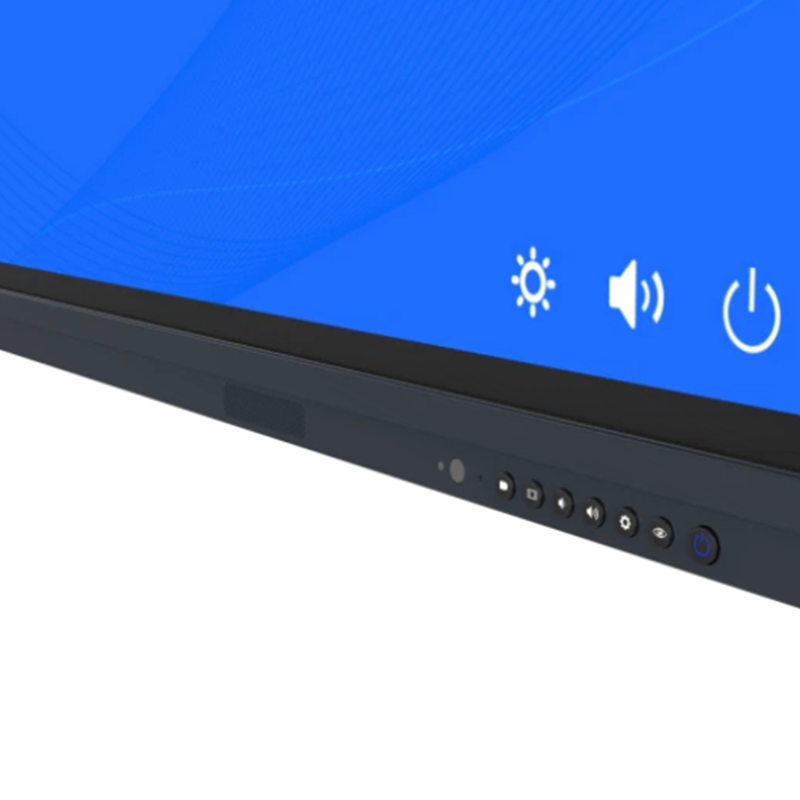

Comprehensive Connectivity
Equipped with a comprehensive set of front and rear I/O—including USB 3.0, HDMI in/out, Type-C, RJ45, RS232, AV IN, and audio ports—enabling easy connection with external computers, signal sources, networks, peripherals, and central control systems for flexible system integration.

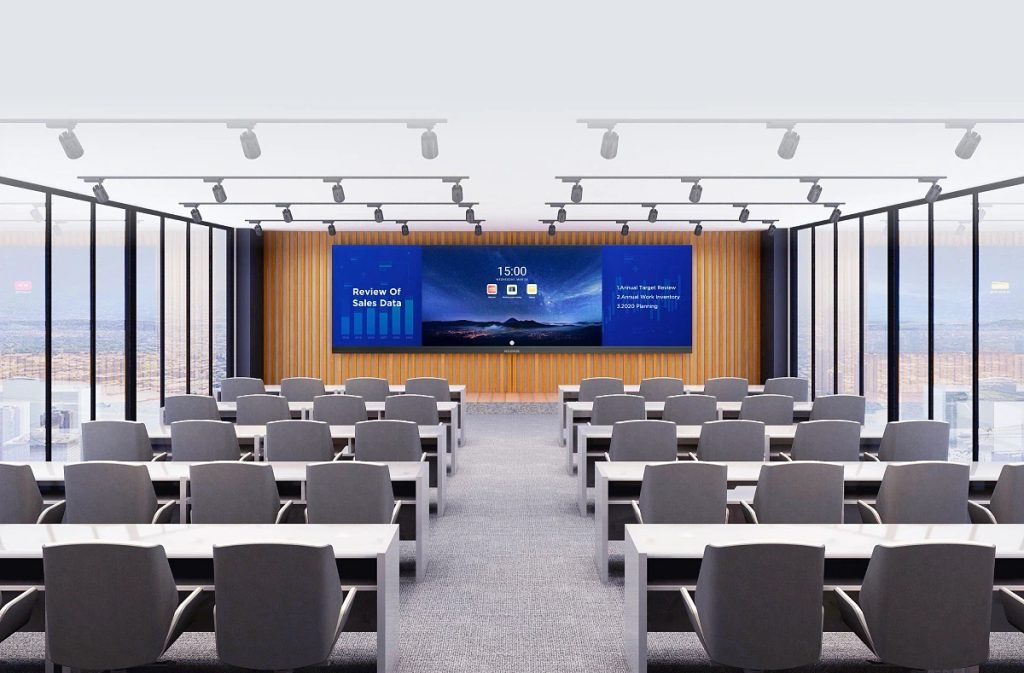

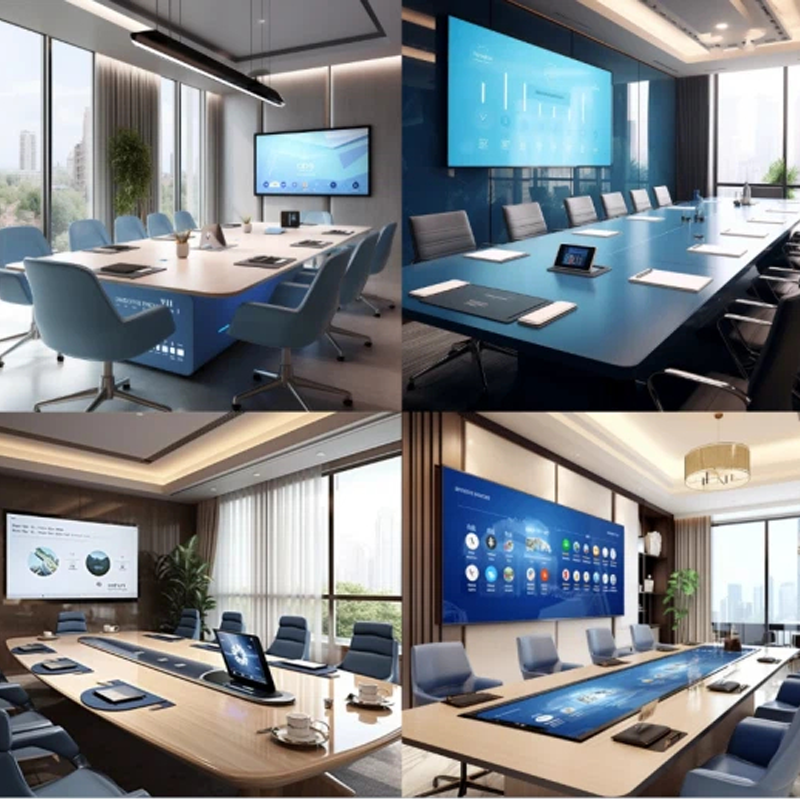

Perfect for Every Space
This 75-inch smart interactive displays is designed to encourage active participation, making it ideal for meeting rooms, huddle spaces, auditoriums, and classrooms. Its large, immersive display enhances engagement and collaboration, ensuring every session is more productive and inclusive.
Specification
| Size | 75 inch |
| Resolution | 4k-3840 x 2160 |
| Refresh Rate | 60Hz |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° (H/V) |
| Response Time | ≤8ms (typ.) |
| Contrast Ratio | 4000:1 |
| Brightness | 350 cd /m² |
| Brightness Uniformity | 75% |
| Display Color | 1.07B |
| Color Gamut (% NTSC) | 72% |
| HDR | Support |
| Touch Technology | Infrared |
| Touch Points | 20 touch points |
| Input Method | Finger or pen |
| OS | Android 13/14 |
| RAM | 4G /8G (optional) |
| ROM | 32 /128 GB(optional) |
| Cameras | 13 /48 million (optional) |
| Wi-Fi | Built-in WiFi 5/6 (optional) |
| Microphone | 8 Array |
| Bluetooth | Bluetooth 5.0 |
| Speakers | 2×15W |
| OPS | Supports OPS-C specifications & Optional European standard OPS |
| Connectivity Ports | Pre: USB3.0 *3；HDMI2.0 *1；Type C *1 Post: R J45 IN *1；HDMI OUT *1；SPDIF *1；Earphone *1；Touch USB *1；HDM IN *2；Android USB 3.0 *1；Android USB 2.0 *1；TF *1；RS232 *1 |
| Machine Size without Stand | L1706mm*W1027.1mm*H115.8mm |
| Packing Size | L1810mm*W197mm*H1120mm |
| Net Weight | 49KG±2KG |
| Gross Weight | 60KG±2KG |
Find Your Tailor-Made Interactive Flat Panel
At Tenfly, we specialize in flexible OEM & ODM solutions, delivering fully tailored interactive panels to fit your market. From custom hardware and software to bespoke industrial design, we partner with you to create differentiated products that strengthen your competitive edge.
Full Range of Customized Services
Logo
Customization
Display
Customization
Interface
Customization
Configuration
Customization
Packaging
Customization
Order & Shipping for 75-Inch IFPDs
Get Your Personalized Quote
Let’s Build Your Custom Display Solution
