IFP-STZH65

Tenfly 65” 4K UHD Interactive Flat Panels

OEM & ODM Factory: Your One-Stop Solution for All Industries

65” 4K Ultra HD Display + HDR Support
20-Point Precision Infrared Touch
Android 14 High-Performance System + Octa-Core CPU
4mm AG Anti-Glare Tempered Glass
Supports Wireless Screen Mirroring and Four-Screen Interaction
OPS Dual System Expansion + Multi-Interface Design

Download

Overview

The A-Series 65-inch interactive touch display is a powerful smart display designed for modern classrooms and meeting spaces. With Android 14, 20-point infrared touch, and 4K UHD clarity, it combines whiteboard, wireless screen sharing, video conferencing, and media playback in one intuitive device. Its strong performance and versatile connectivity make collaboration easier and more engaging.

Key Features

4K UHD Display with Wide Viewing Angle

Features a 65-inch 4K Ultra HD screen with 178° wide viewing angles, high brightness, and HDR support, delivering sharp and vibrant visuals suitable for well-lit rooms.

All-in-One Design: Six Devices in One

The Tenfly IFP-STZH65 integrates six essential tools into a single streamlined solution: a projector, electronic whiteboard, computer, monitor, audio system, and set-top box. This integration significantly reduces installation complexity, maintenance costs, and cable clutter. Perfect for educational and professional settings, it delivers multifaceted functionality without sacrificing performance or user experience.

Dual-OS Flexibility with OPS Support

Runs Android 13/14 on an 8-core processor and supports Windows via an optional OPS slot, offering adaptability for various apps and professional software.

Wireless Screen Sharing & Multi-Device Mirroring

Built-in wireless screen casting software supports simultaneous screen casting (up to 4 devices) from multiple platforms including Android, iOS, Windows, and Mac. It also supports reverse control and privacy screen casting modes, improving the efficiency of meetings and teaching interactions.

Built-in High-Quality Audio & Expandable Conference Tools

Includes dual 15W front-facing speakers and optional accessories such as a 13MP camera, 8-array microphone, and external audio outputs for clear communication.

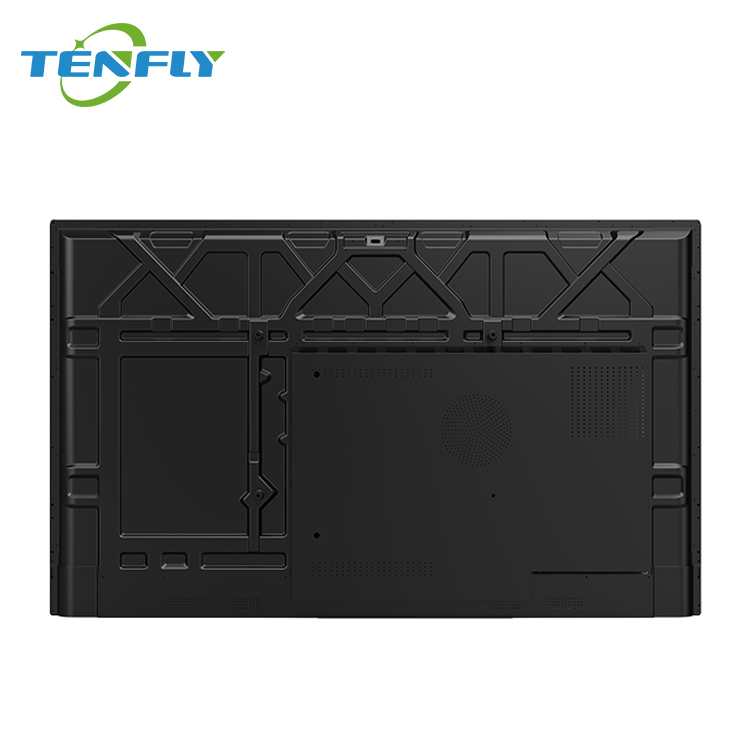

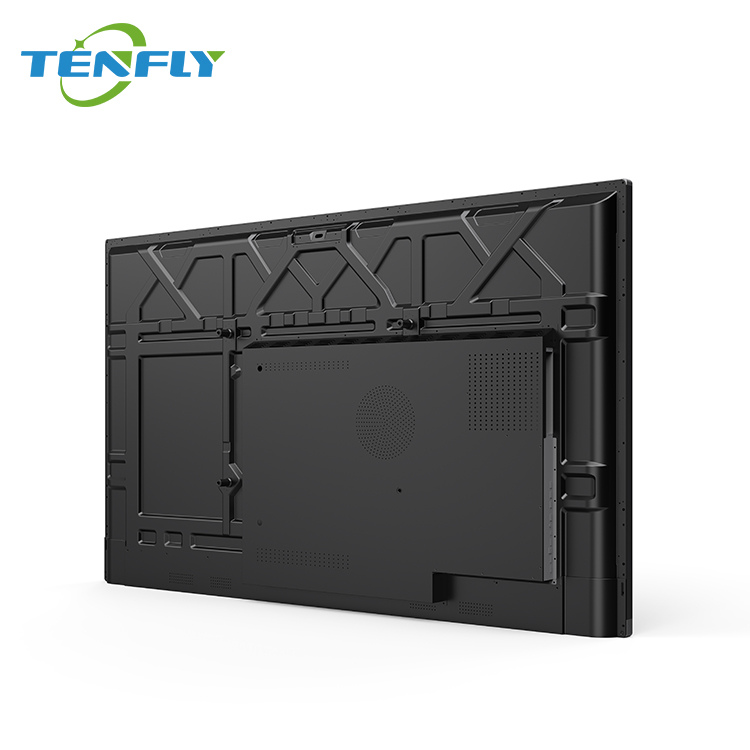

Sleek Design with Comprehensive Connectivity

Features a slim metal chassis with front-maintenance design and offers extensive ports including HDMI, USB 3.0, Type-C, RJ45, Bluetooth, and Wi-Fi for easy integration.

Specification

Model	ST-ZH65
Size	65 inch
Resolution	4K-3840 x 2160
Refresh Rate	60Hz
Aspect Ratio	16:9
Viewing Angle	178° (H/V)
Response Time	≤8ms (typ.)
Contrast Ratio	4000:1
Brightness	350 cd /m²
Brightness Uniformity	80%
Display Color	1.07B
Color Gamut (% NTSC)	72%
HDR	Support
Touch Technology	Infrared
Touch Points	20 touch points
Input Method	Finger or pen
OS	Android 13/14
RAM	4G /8G (optional)
ROM	32 /128 GB(optional)
Cameras	13 /48 million (optional)
Wi-Fi	Built-in WiFi 5/6 (optional)
Microphone	8 Array
Speakers	2×15W
Bluetooth	Bluetooth 5.0
OPS	Supports OPS-C specifications & Optional European standard OPS
Connectivity Ports	Pre: USB3.0 3；HDMI2.0 1；Type C 1 Post: R J45 IN 1；HDMI OUT 1；SPDIF 1； Earphone 1；Touch USB 1；HDM IN 2； Android USB 3.0 1；Android USB 2.0 1；TF 1； RS232 *1
Machine Size without Stand	L1483.8mmW901.9mmH115.8mm
Packing Size	L1590mmW197mmH1007mm
Net Weight	36KG±2KG
Gross Weight	47KG±2KG

Find Your Tailor-Made Interactive Flat Panel

At Tenfly, we provide flexible OEM and ODM services for interactive flat panels, offering tailored hardware configurations, software customization, and industrial design to match your market and application needs. From branding to performance optimization, we help you create differentiated products that strengthen your competitive advantage.
