IFP-STZH110

Tenfly 110” Touch Screen Interactive Flat Panels

OEM & ODM IFP Factory, Tailored for Your Business

110″ True 4K Ultra HD Display + 450cd/m² High Brightness
20-Point High-Precision Infrared Touch with <15ms Response
Android 11 System with Octa-Core CPU (8GB + 128GB)
7H Hardness Anti-Interference Tempered Glass
Wi-Fi 6 Wireless Screen Sharing & Multi-Device Collaboration
Full Professional I/O Ports (HDMI/DP/Type-C/USB/RS232)

Download

Overview

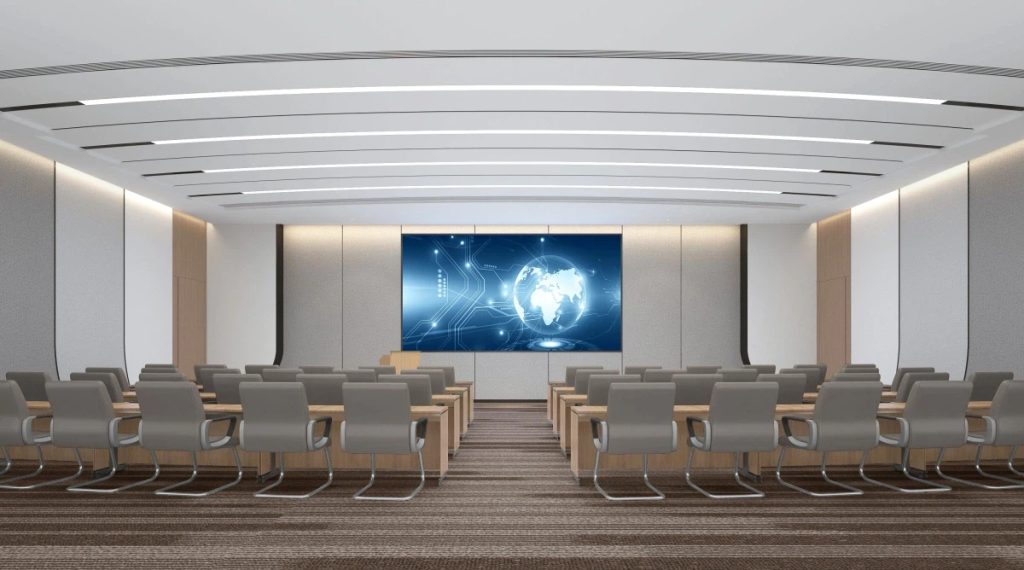

The Tenfly 110-inch Smart Touchscreen All-in-One IFP is a flagship interactive solution designed for command centers, large conference rooms, digital exhibition spaces, and lecture halls. Featuring a true 110-inch 4K UHD display with a 95% NTSC wide color gamut, it delivers exceptional visual impact for large venues and high-brightness environments. Powered by Android 11, an octa-core processor, and an 8GB + 128GB performance configuration, it ensures smooth multitasking and stable operation. With 20-point infrared touch, an integrated 48MP camera, an 8-microphone array, Wi-Fi 6, Bluetooth 5.0, and optional Intel OPS expansion, it provides a comprehensive platform for professional audiovisual applications, remote collaboration, and intelligent control.

Key Features

110” True 4K UHD Display with Wide Color Gamut

Features a 110-inch 4K UHD panel with ≥450cd/m² brightness, 95% NTSC color gamut, and a 120Hz refresh rate, offering highly detailed, vibrant, and smooth visuals ideal for large environments and high ambient light conditions.

20-Point Infrared Touch with Low-Latency Response

Features advanced anti-interference infrared touch technology with up to 20-point input, 3.5 mm touch height, and sub-15 ms response time. Combined with a 7H hardened glass surface, it delivers accurate, smooth writing and seamless multi-user collaboration.

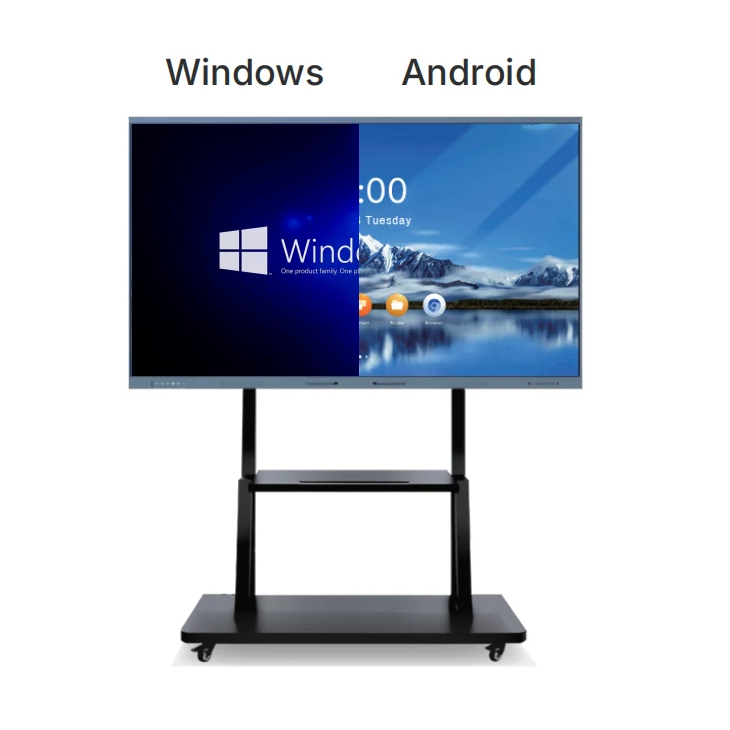

High-Performance System with OPS Expandability

Equipped with an octa-core processor (A73×4 + A53×4), 8GB RAM, and 128GB storage for powerful Android 13/14 performance. Supports Intel Core OPS modules (i5/i7/i9) for seamless dual-system switching and advanced software compatibility.

Multi-Platform Wireless Screen Casting

Compatible with Windows, macOS, Android, and iOS devices, enabling easy wireless screen sharing without additional hardware.

Full Connectivity and Intelligent Features

Provides a comprehensive range of front and rear I/O including HDMI (4K 60Hz), USB 3.0, Type-C, DP, VGA, RS232, and more. Enhanced with smart features such as channel memory, ambient light sensing, and cross-channel annotation.

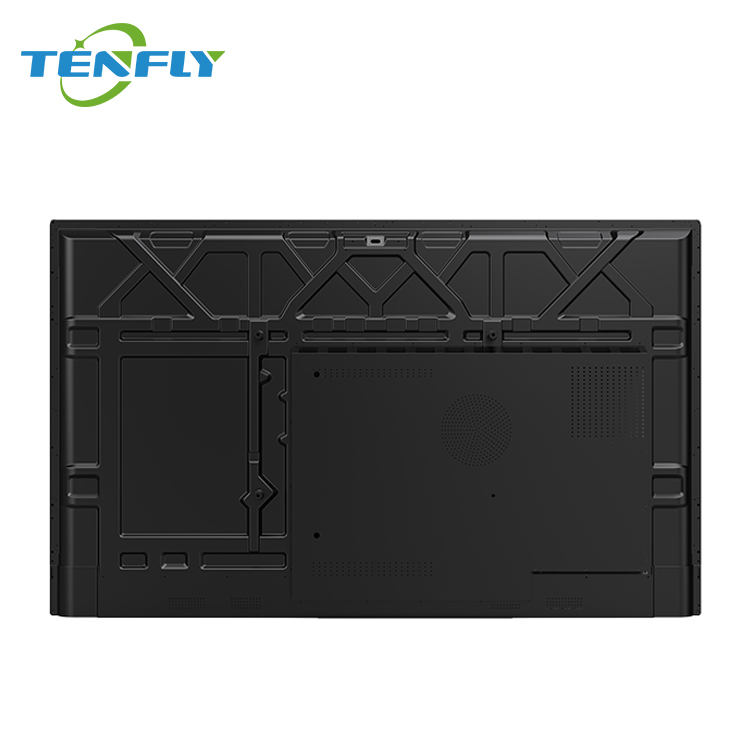

Robust Structure with Professional Audio Output

Engineered with a reinforced installation design supporting VESA 1000×800mm mounting. Built-in dual 15W front-facing speakers deliver clear, powerful audio for extended continuous use

Specification

Size	110 inch
Resolution	4k-3840 x 2160
Refresh Rate	60Hz
Aspect Ratio	16:9
Viewing Angle	178° (H/V)
Response Time	≤8ms (typ.)
Contrast Ratio	4000:1
Brightness	350 cd /m²
Brightness Uniformity	75%
Display Color	1.07B
Color Gamut (% NTSC)	72%
HDR	Support
Touch Technology	Infrared
Touch Points	20 touch points
Input Method	Finger or pen
OS	Android 13/14
RAM	4G /8G (optional)
ROM	32 /128 GB(optional)
Cameras	13 /48 million (optional)
Wi-Fi	Built-in WiFi 5/6 (optional)
Microphone	8 Array
Bluetooth	Bluetooth 5.0
Speakers	2×15W
OPS	Supports OPS-C specifications & Optional European standard OPS
Connectivity Ports	Pre: USB3.0 3；HDMI2.0 1；Type C 1 Post: R J45 IN 1；HDMI OUT 1；SPDIF 1； Earphone 1；Touch USB 1；HDM IN 2；Android USB 3.0 1；Android USB 2.0 1；TF 1；RS232 *1
Machine Size without Stand	L2499mmW1500mmH170mm
Packing Size	L2670mmW330mmH1880mm
Net Weight	123±3KG
Gross Weight	175±3KG

Find Your Tailor-Made Interactive Flat Panel

Tenfly provides private brand and customization services tailored for interactive flat panel solutions. From hardware configuration and software features to industrial design and packaging, we help you create a differentiated product that aligns perfectly with your target market.
