TENFLY TD-PMN156FCJ2
15.6″ Portable Monitor| FHD| Anti-glare surface| Dual USB Type-C| mini-HDMI®| Smart Cover
Overview

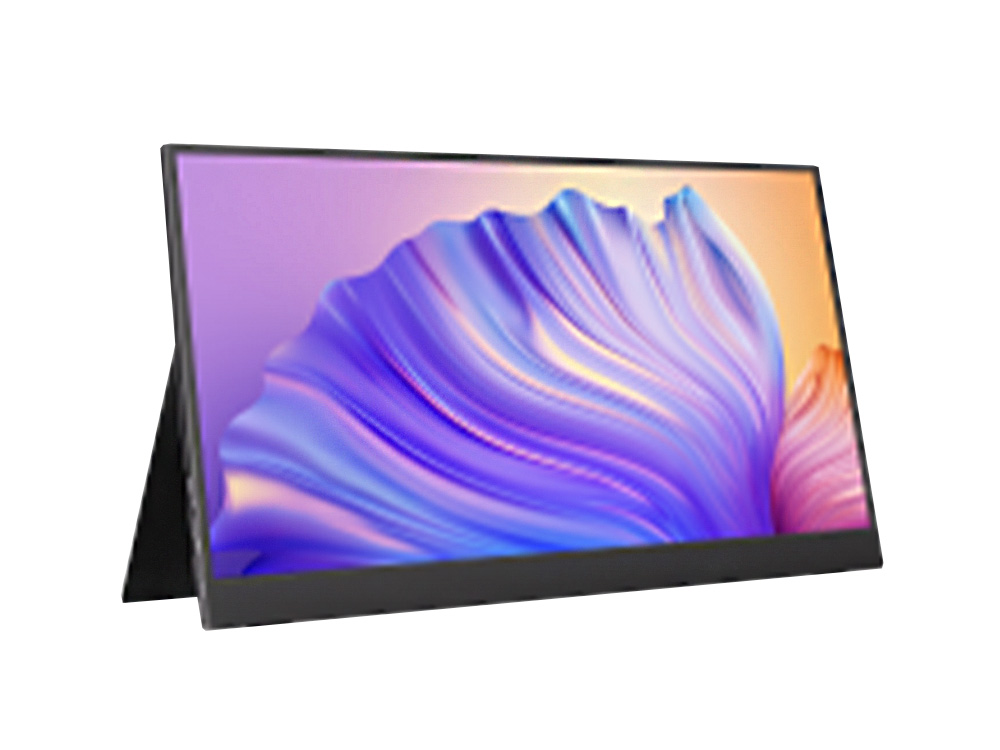

TENFLY TD-PMN156FCJ2 is a sleek, portable 15.6-inch Full HD monitor featuring QLED backlight technology for vibrant colors and sharp visuals. It features dual plug-and-play connectivity (Mini HDMI + USB-C), an ultra-thin 13mm aluminum body (805g), and protective leather, effortlessly extending your workspace from laptops, smartphones, or gaming consoles to a larger display—anytime, anywhere.
Key Features
- 15.6″ QLED high-definition screen, 1920×1080 FHD resolution, 280cd/m² brightness, 1200:1 contrast ratio, vivid colors, sharp details.
- Ultra-light and ultra-thin design, only 13mm thick, weighing 805g, with a protective leather case, no burden to carry around.
- Dual USB-C (supports DP Alt mode/power supply) + Mini HDMI, automatic signal switching, plug and play, wide compatibility.

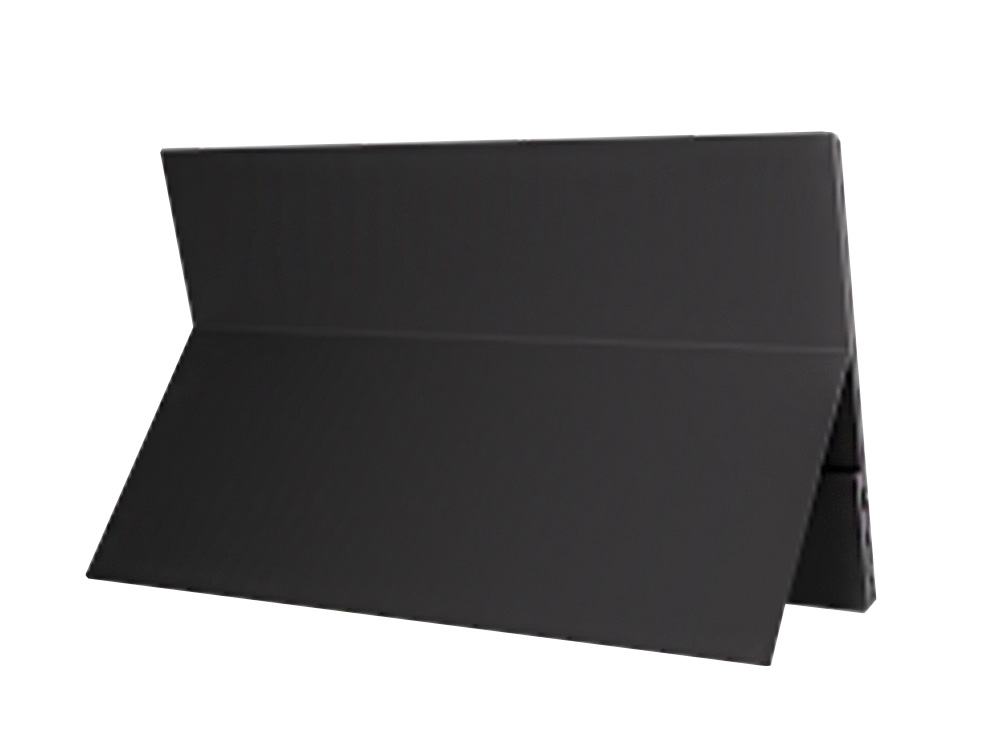

- Built-in folding leather case turns into a stand in seconds, supports horizontal/vertical screen multi-angle adjustment, improves productivity.
- Supports 75×75mm standard wall mounting to meet fixed installation needs.
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Model | TENFLY TD-PMN156FCJ2 | |
| Display | Screen Size | 15.6inch |
| Panel Type | 15.6″ QLED | |
| Resolution | 1920×1080 | |
| Display Area | 344.16 (H)×193.59 (V) mm | |
| Surface Treatment | Anti-glare | |
| Panel Mode | FFS, Normally Black | |
| Brightness Maximum | 280cd/m² (Typ.) | |
| Contrast Ratio | 1200:1（Typ.) | |
| Response Time | 5ms | |
| Ten-Point Touch | NA | |
| Pixel Pitch | 179.25(H)×179.25(V) um | |
| Aspect Ratio | 16:9 | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |
| Refresh Rate | 45Hz | |
| Color Gamut | NTSC 45% （Typ.) | |
| HDR Image Rendering | NA | |
| FREE-SYNC | YES | |
| Interface Type | Mini HDMI | 2.0 Input/Audio and Video Transmission |
| USB Type C | External Power Supply/Audio and Video Transmission | |
| USB Type C | External Power Supply/Audio and Video Transmission | |
| Headphone Jack | 3.5mm Headphone Jack | |
| Control Buttons | Button Mode | Three-Phase Wheel Button + Power Button |
| AppearanceWeight | Appearance Material – Color | Aluminum alloy/Black |
| Appearance Size | 362*227*13 | |
| Packaging Box Size | 450*325*65mm | |
| Bare Weight | 805g | |
| Packaging Weight | 1980g | |
| Hardware Supported Features | PS4/XBOX/SWITCH/PC Host/TV BOX/Digital Camera | Mini HDMI to HDMI |
| Laptops Tablets | Mini HDMI to Mini HDMISome models support direct connection via Type-C | |
| TYPE-C 3.1 Full Function Android Phones | Compatible with Samsung, Huawei, Nut, Black Shark, Sony, One Plus, etc.One-line solution: Mobile mode/PC mode | |
| Ordinary Smartphones | NA | |
| Apple Phones | Requires an Apple adapter | |
| Apple MACBOOK | Most models support display capabilities | |
| Speakers | 1W*2(8Ω) | |
| Power Consumption | On: ≤10WStandby≤1W, Off≤1W | |
| VESA Wall Mount Specification | 2Hole75*75 | |
| Operating Environment | Operating Temperature and Humidity | 0ºC~50ºC 10～85%RH（Non-condensing） |
