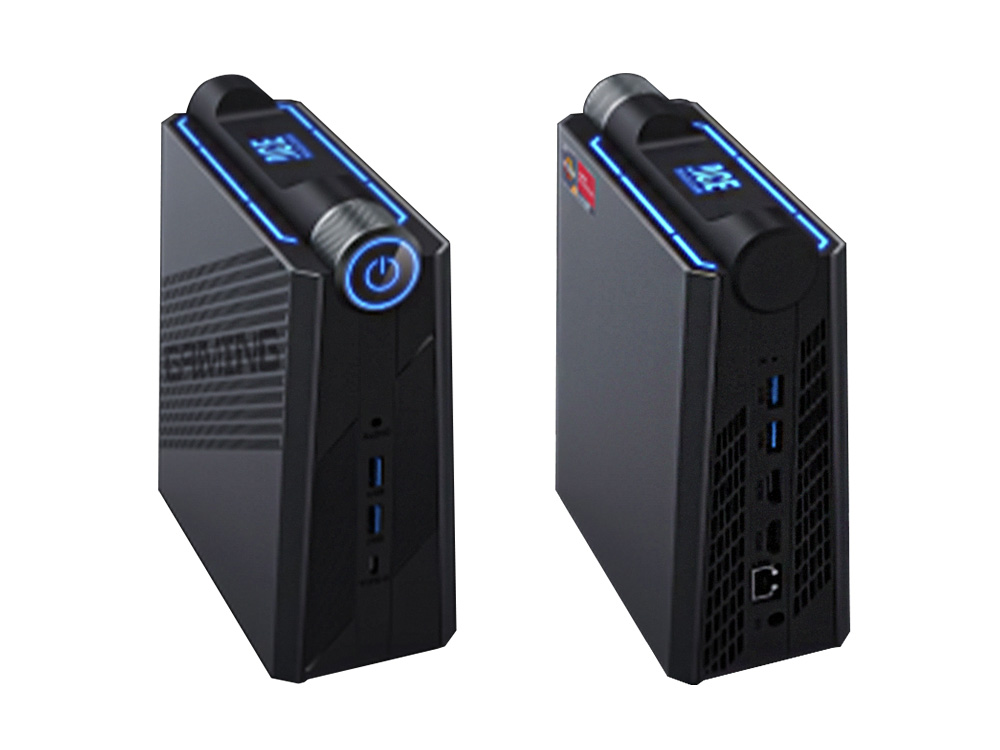

TENFLY TD-MPCAD08

Intel® 12th Gen i9 Mini PC | Triple Display Ready | Dual 4K HDMI | USB4.0 & Wi-Fi 6 | 2TB SSD

Overview

Powered by the 12th Gen Intel® Core™i9-12900H processor with a max turbo frequency of 5.0GHz, TENFLY TD-MPCAD08

mini PC delivers desktop-class performance in a palm-sized form factor. Featuring an integrated Intel UHD Graphics and configurable up to 64GB DDR4 RAM, it supports seamless multitasking and triple 4K display output (dual HDMI 2.0b + USB 4.0).

Key Features

  • Measuring just 154.3×77.8×77.8mm  and weighing 836g, vertical standing design fits anywhere.
  • Pre-installed with Windows 11/10 or Ubuntu, seamlessly switching between productivity, development, and entertainment environments.
  • Equipped with 12th Gen Intel UHD Graphics, driving triple 4K displays for immersive multitasking.
  • Optional fingerprint reader (TPM 2.0 integrated) enables instant login and enterprise-grade data protection.

Target Usages

  • Limited Space Environments (dorm rooms, reception areas, or conference)
  • 24/7 Low-Power Operation (digital signage, kiosks, or monitoring systems)
  • Frequent Mobility Between Workspaces (mobile workflows)

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

ParameterSpecificationOptional Configuration
CPUIntel® Alder-H CPU BGA1744  i9-12900HOptional
GPUIntel® UHD Graphics for 12th Gen Intel® Processors–
Total Cores14–
Total Threads20–
Max Turbo Frequency5.0 GHz–
Power Consumption45W–
Memory64GB DDR4(Dual-Channel, 3200MHz)Optional
Storage2TB SSDOptional
Wi FiWi Fi6/M.2 wifi 5Optional
BluetoothBluetooth 4.2/5.3Optional
4G/3G –
Ethernet (LAN1)10M/100M/1000M Auto-Negotiation–
USB4 USB 3.0 Type-A ports–
Extended MemoryNO–
HDMI2 × HDMI 2.0b (Type-A) ports–
Type-C1 × USB4.0 (Full-Function: DP / PD / Data)Optional
Ethernet1 x RJ45 LAN–
DC Input1 x5.5mm x 2.1mm Jack–
Audio1× 3.5mm combo audio Jack (CTIA)–
Antenna 11 × FPC Antenna (Wi-Fi 2.4 + Bluetooth)–
Antenna 21 × FPC Antenna (Wi-Fi 5)–
SIM CassetteMicro-SIM–
Operating SystemWin11/Win10 / Ubuntu–
Operating Temperature0℃ to 40℃–
Storage Temperature–20℃  to 60° C–
Humidity0%~95% (no condensation)–
Power Supply Adapter100–240V AC (50/60Hz) input, 19V 6.3A output, 5.5×2.1mm DC plug, wall-mounted/desktop type–
Infrared Remote ControlNo–
VESANo–
TPMTPM 2.0–
Produce Dimensions(W x D x H)154.3*77.8*77.8mm–
Net Weight0.836kg–
Enclosure MaterialFull Plastic–
