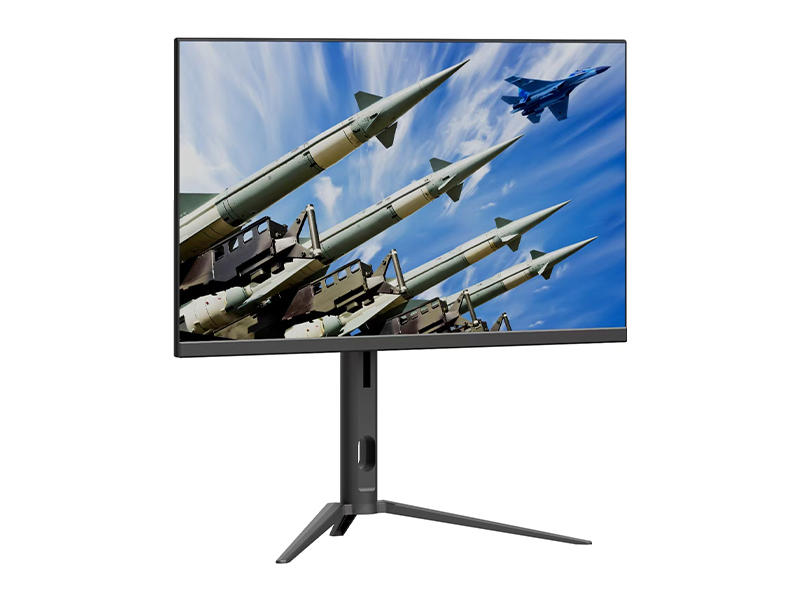

TENFLY TD-MN245GFYR3
24.5″ FHD 300Hz Gaming Monitor | VA Panel | 1ms MPRT | FreeSync™ | HDR Ready | Dual HDMI | Ergonomic Design
Overview
TENFLY TD-MN245GFYR3 by TENFLY is a 24.5” gaming monitor built for speed, clarity, and customization. Featuring a blazing-fast 300Hz refresh rate, 1ms MPRT, and 99% sRGB, it delivers pro-level performance with stunning visuals. Designed for flexibility, it supports dual HDMI + dual DP, a height-adjustable stand, and full OEM/ODM customization—making it the ideal choice for competitive gaming setups and branded display solutions.
Key Features
Application Scenarios
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Model No (Factory No.) | TENFLY TD-MN245GFYR3 | ||
| Backlight Module | OC Model | AUO/BOE/CSOT | |
| Panel Type | VA | ||
| Flat/Curve | Flat | ||
| Aspect Ratio | 16:09 | ||
| Screen Size | 24.5″ | ||
| Display Area (H*V) | 543.74(H) ×302.62(V) | ||
| Panel Resolution | 1920*1080 | ||
| Refresh Rate | 300Hz | ||
| Backlight Type | ELED | ||
| Brightness | Factory Control Value | 200 (±30) | |
| Maximum Brightness | 250 | ||
| Contrast Ratio | 3000:1 (TYP) | ||
| Support Colour | 16.7M | ||
| Colour Gamut | sRGB | 99% | |
| HDR | Yes | ||
| View Angle (H/V) | 178/178 | ||
| Response Time | 14ms (TYP) | ||
| Electronics | I/O Ports (Standard) | DC+2HDMI+2DP+Audio | |
| MPRT | 1ms | ||
| OD | 5ms | ||
| Speaker | Optional | ||
| Adapter Power | 36W (12V 3A) | ||
| Adapter Type | External Power Adapter | ||
| Standby Power Consumption | ≤0.5W | ||
| Indicator Light Mode | Power On: Blue (LED) | ||
| Structure | Appearance Color | Black | |
| Unit Size | Unit W/stand | 558.5*405.5*179.5mm | |
| Unit W/O stand | 558.5*329.5*45.5mm | ||
| Packing Size | 645x147x415mm | ||
| Weight | Net Weight | 3.65kg | |
| Gross Weight | 4.70kg | ||

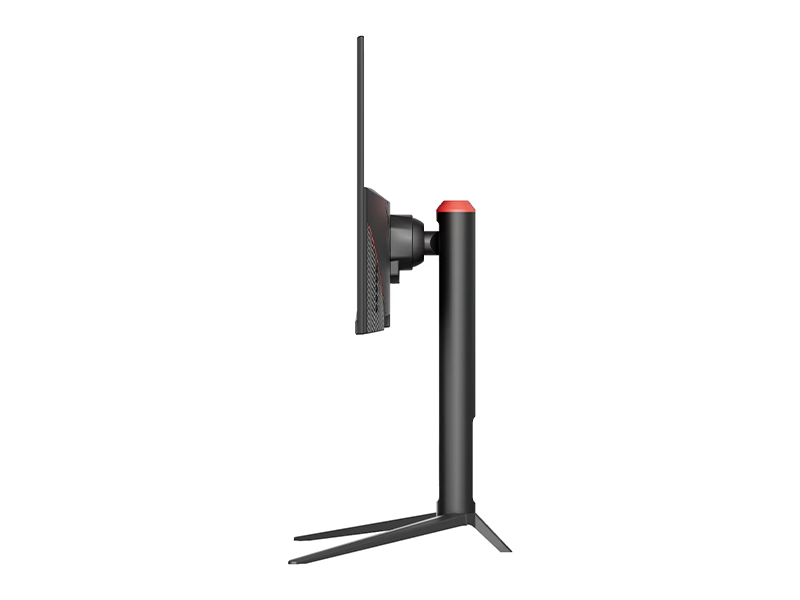

| Stand Functions | Angle(Forward /Back-Lean) | Forward: 5°±3° Lean Back: 15°±3° | |
| Up and Down (Vertical) | 100mm | ||
| Rotation Angle (L/R) | 15° | ||
| Rotation Angle (V) | 90° | ||
| VESA | VESA Dimension | 100*100mm | |
| Easy to Disassemble | Yes | ||
| Software | Control Mode | Common Blue/White OSD | |
| Language Menu | 10 Countries Language | ||
| Main Functions | Color Temperature (Cool、Warm、Normal、User) | ||
| Low Blue Light Control | |||
| 6 Contextual Models | |||
| DCR | |||
| Multiple-Language Menu | |||
| Backlight adjustment w/o flicker | |||
| FPS/RTS Game Mode with 1 key-switch | |||
| GAME PLUS | |||
| FreeSync | |||
| Storage and Working Environment | Working Temperature | 0ºC~40ºC | |
| Storage Temperature | -20ºC~60ºC | ||
| Working Humidity | 10~85%RH | ||
| Storage Humidity | 5~90% (No Freezing under 40ºC ) | ||
| Altitudes | ≤5000m | ||
| Annex List | USER MANUAL | Yes | |
| HDMI Cable | Yes | ||
| Power Adapter with Power Cable | Yes | ||
