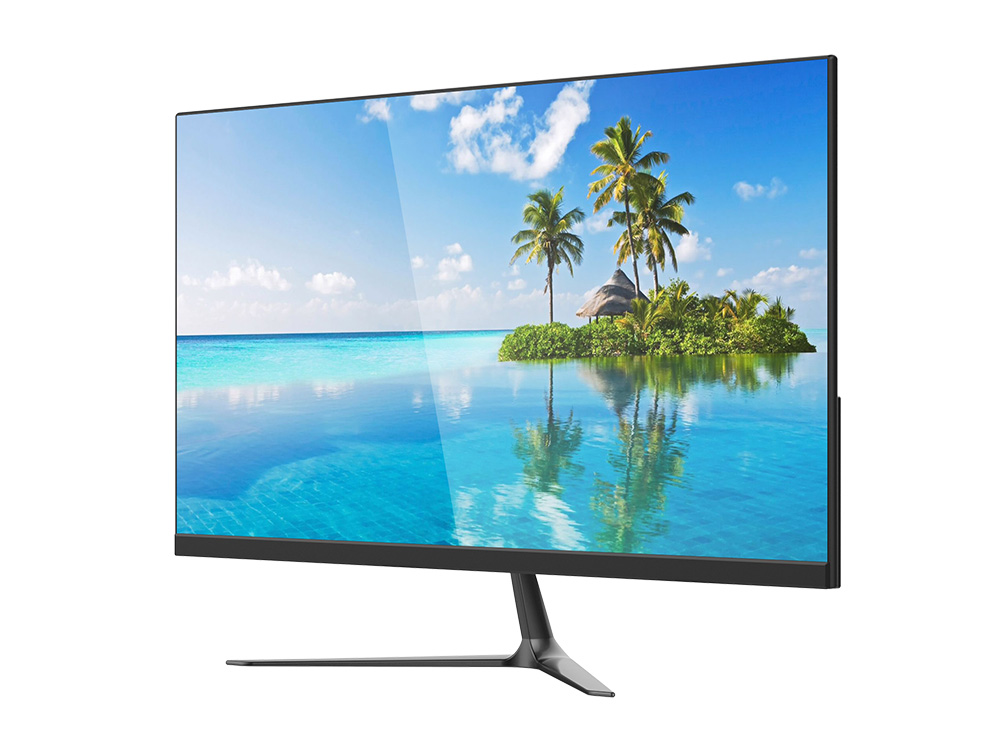

TENFLY TD-MN245G11X

24.5″ FHD IPS Gaming Monitor, 200Hz Refresh Rate, 99% sRGB, 5ms GTG, HDR Ready, Flicker-Free&Low Blue Light

Overview

TENFLY TD-MN245G2511X 24.5-inch delivers a refined visual experience with its ultra-slim monitor featuring a 3-sided frameless design and IPS panel for true-to-life colors and wide viewing angles. A 5ms response time ensures smooth performance across work and entertainment. Eye-care technologies like low blue light and flicker-free help reduce eye strain, while HDMI, DP, and USB charging ports offer enhanced versatility.

Key Features

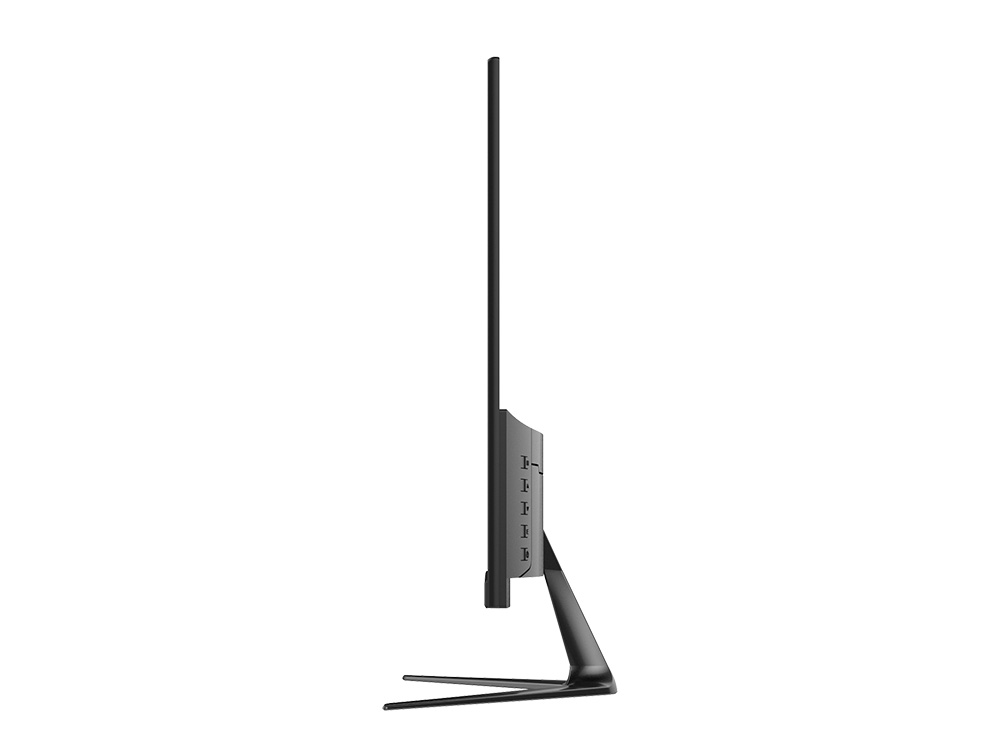

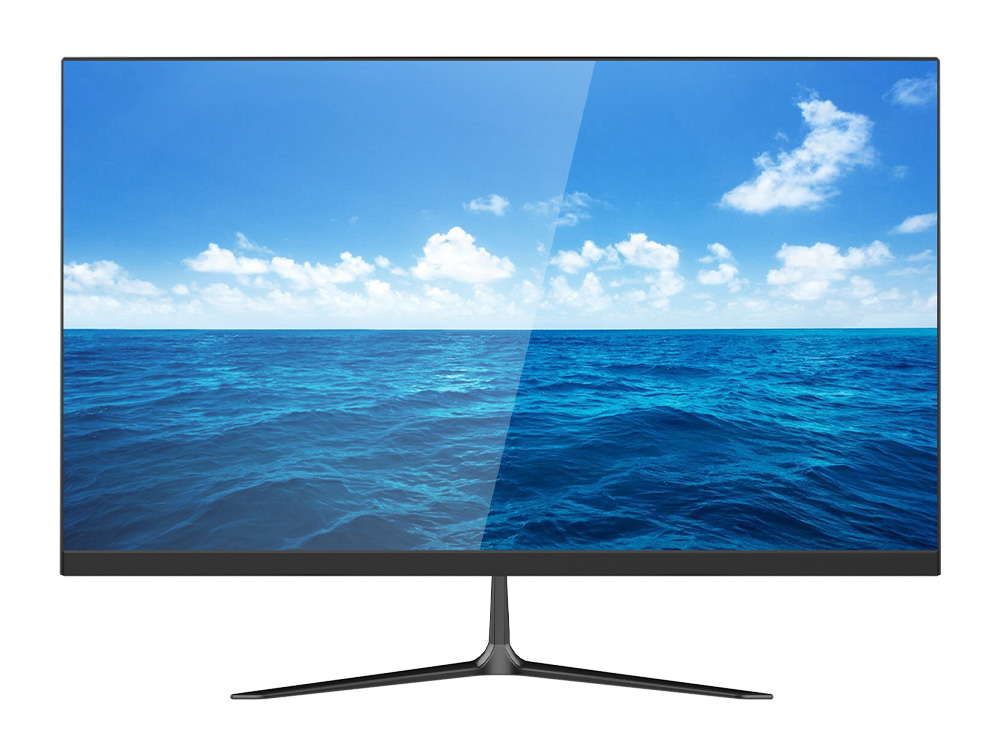

  • Ultra-slim design with three-sided narrow bezels and a classic quick-release square stand
  • IPS wide 178°viewing angle delivers sharper and clearer images for an immersive visual experience
  • 5ms response time ensures smooth and clear high-definition visuals for office work, movie watching, and online content
  • Dual-layer blue light protection with both hardware and software solutions to reduce harmful blue light and protect your eyes
  • Flicker-free technology for a more comfortable and eye-friendly viewing experience
  • Multiple aspect ratio settings to meet the dynamic needs of gaming scenarios
  • Equipped with HDMI, DP, and headphone ports for an enhanced multimedia experience
  • Dedicated USB charging port with up to 5V/1A output for convenient device charging

Application Scenarios

Office & Business: Ergonomic design and eye-care tech ensure all-day comfort and efficiency

Education & Training: Wide viewing angles and low blue light make it perfect for classrooms and digital learning setups

Commercial Display – Suitable for control rooms, kiosks, and reception areas

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

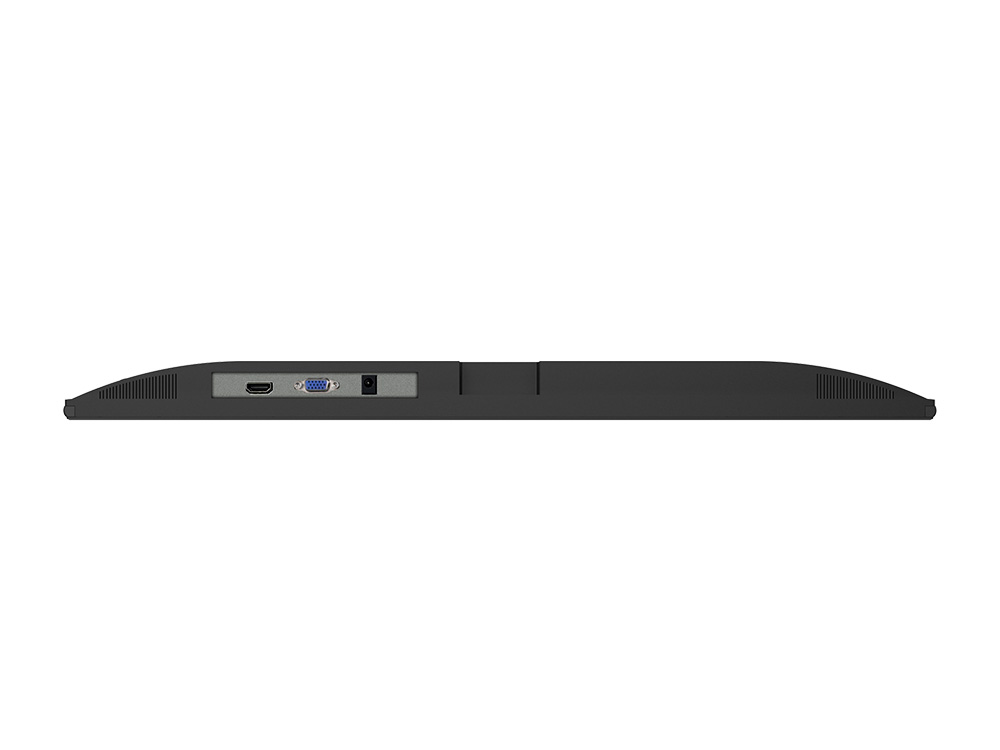

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

Product CodeTENFLY TD-MN245G2511X
OC ModelCSOT SG2451B03-3 (Optional)
Screen Size (Diagonal)24.5″W
Screen Ratio16:9
Panel TypeIPS
Visible Size (Diagonal)622.3mm
Dot Pitch (Horizontal/Vertical)0.0944(H)×0.2802(V) mm
Screen Size (Horizontal/Vertical)543.744(H) x 302.616(V)mm
Brightness (Standard Color Temperature)250±30 cd/m²
Brightness (Maximum)300±30 cd/m²
Contrast Ratio (Typical)1000:1 (static)
Response Time (Typical)5ms GTG
Viewing Angle (Horizontal/Vertical) (Typical)178°/178°(CR≥10)
Scan FrequencyHorizontal: 67.5k ~ 225kHz Vertical: 60 ~ 200Hz
Maximum Resolution1920*1080@200Hz (DP/HDMI)
Recommended Resolution (Typical)1920*1080@60Hz
Display Color16.7M
Color Gamut (Typical)99% sRGB
HDCP CapabilityYes
Signal InputHDMI, DP

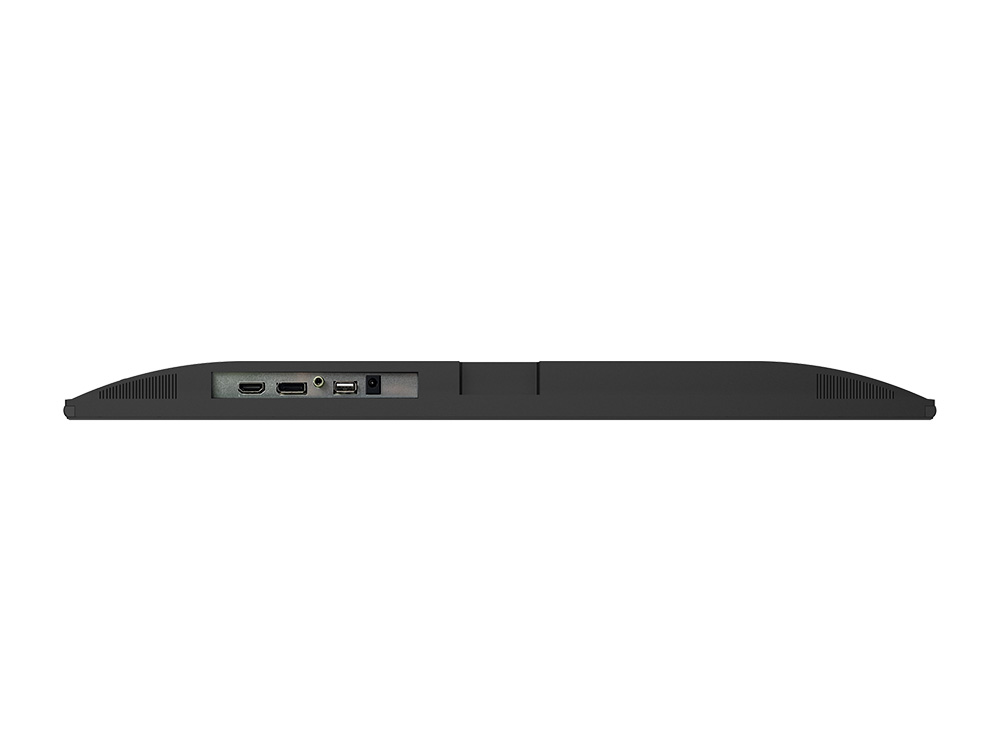

InterfaceHDMI*1, DP*1, USB*1, AUD*1
Power SupplyDC 12V, 3.0A
Power ConsumptionNormal Operation ≤26WMAX ≤30W, Standby≤0.3W
Plug and PlayVESA DDC2B/CI
User ControlsSource switch/exit, brightness adjustment/up/increase/right, brightness scene mode/decrease/left, menu/confirm, power switch
OSD LanguageEnglish, French, German, Simplified Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Japanese, Korean, Russian
TrumpetNone
CertificationCCC, CEL, CH, RoHS

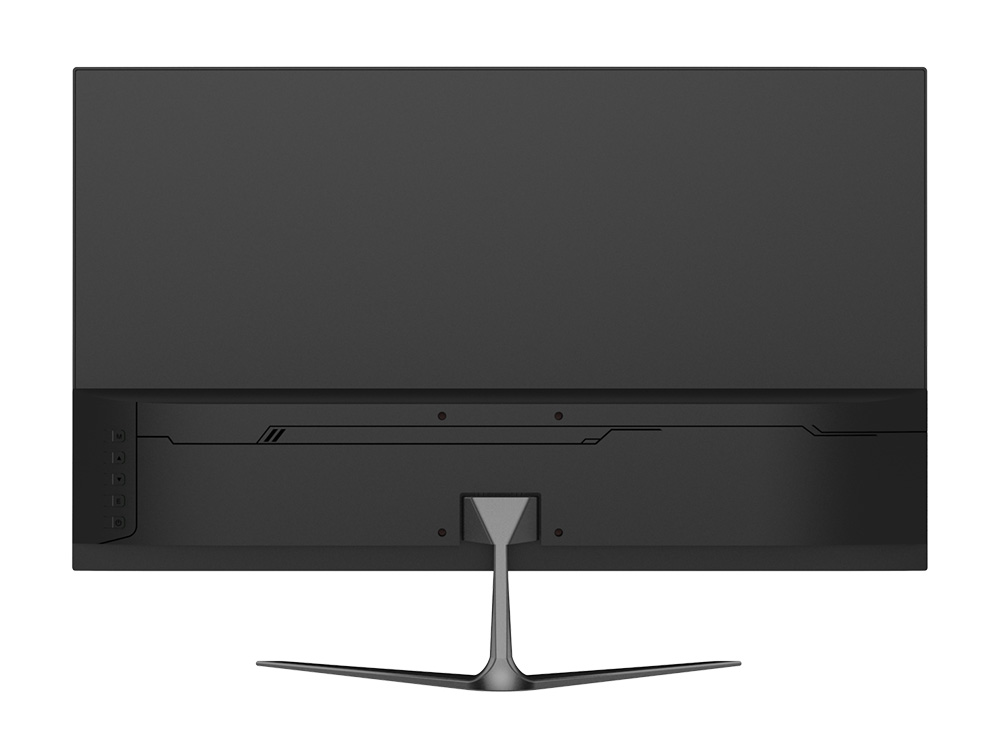

Wall MountVESA 75mm×75mm
Shell ColorBlack
Institutional FunctionsTilt: -5°~15°
Screen rotation: No
Height adjustment: No
Left and right rotation: No
Dimensions (Display) MM558.5(W)*399(D)*163(H)mm
Dimensions (Carton) MM613(W)*100(D)*392(H)mm
Weight (Net Weight/Gross Weight)2.7Kg/3.5Kg
Packing ListLCD monitor, stand/base, power adapter, HDMI signal cable, manual, warranty card
