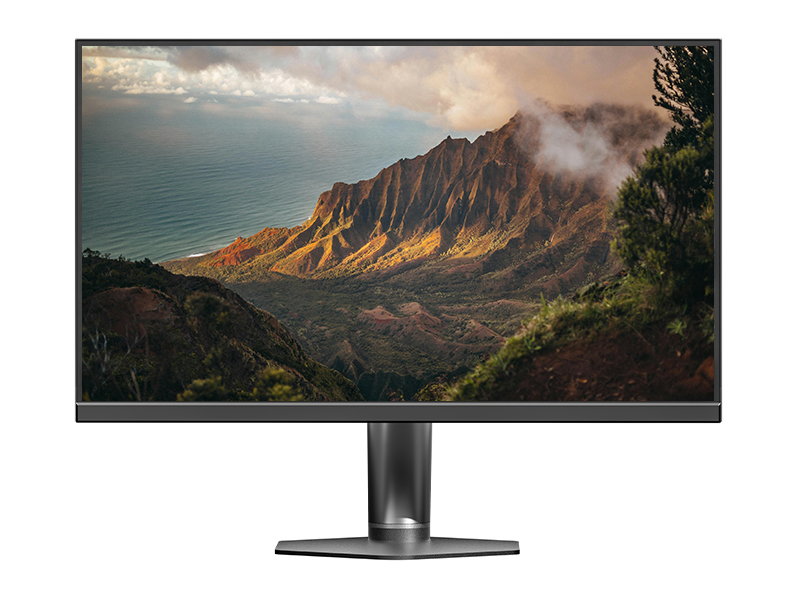

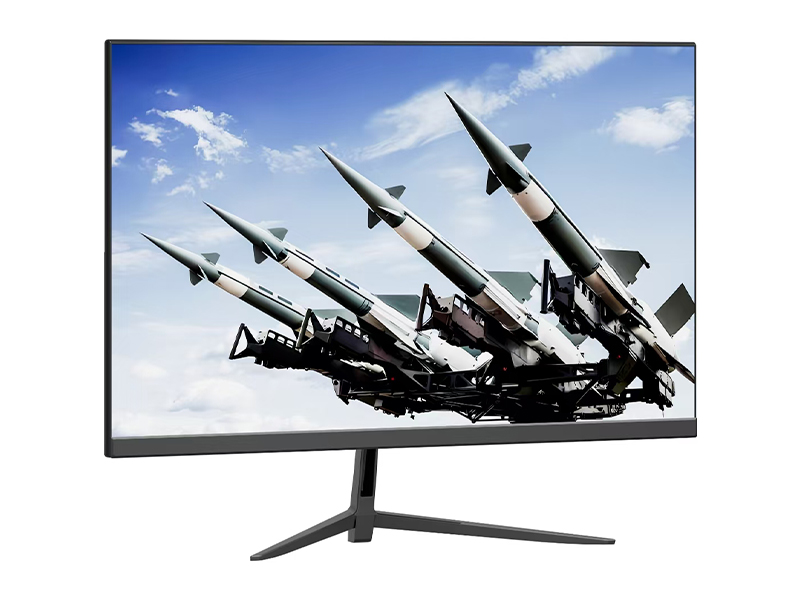

TENFLY TD-MN238GQYR2

23.8” 180Hz QHD Gaming Monitor | IPS Panel | 2560×1440 | 1ms MPRT | Support HDR&FreeSync | Ergonomic Stand

Overview

TENFLY TD-MN238GQYR2 is a 23.8-inch QHD IPS monitor from TENFLY’s self-owned product line, designed for both performance and ergonomic comfort. Featuring 2560×1440 resolution, a 180Hz refresh rate, and vivid color coverage with sRGB 99%, it ensures smooth, vibrant visuals for work and play. The height-adjustable stand adds extra flexibility, allowing users to customize viewing angles for improved posture and comfort. With dual HDMI and dual DisplayPort inputs, and full OEM/ODM customization support, TD-MN238GQYR2 is a professional-grade solution for global B2B clients.

Key Features

  • 23.8″ QHD (2560×1440) IPS display with wide 178° viewing angles
  • 180Hz high refresh rate for ultra-smooth motion

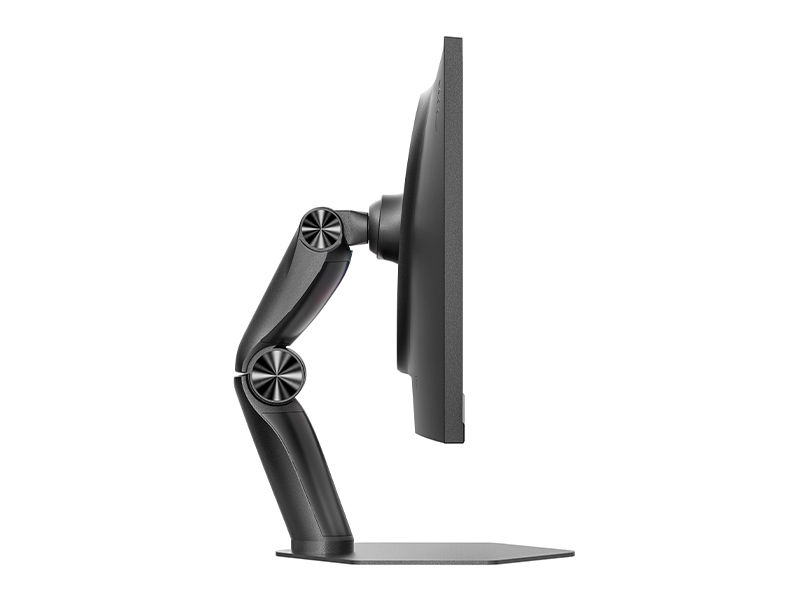

  • Ergonomic height-adjustable stand for improved comfort and flexibility
  • sRGB 99% color gamut and HDR support for lifelike visuals
  • 1ms MPRT + 5ms OD for sharper fast-action performance
  • Flicker-free backlight and low blue light for eye care
  • 2×HDMI + 2×DP + Audio ports for multi-device connections
  • External 36W (12V 3A) power adapter
  • VESA mount compatible (100×100mm), tool-free disassembly

Application Scenarios

Office & Business Environments – Ergonomic stand allows personalized comfort for long working hours

Creative & Content Work – QHD resolution and rich color accuracy for design, editing, and publishing

Gaming & Entertainment – 180Hz refresh rate and Game Mode deliver smooth, responsive visuals

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

Model No (Factory No.)TENFLY TD-MN238GQYR2
Backlight ModuleOC ModelBOE/CSOT
Panel TypeIPS
Flat/CurveFlat
Aspect Ratio16:09
Screen Size23.8″
Display Area (H*V)526.85(H) ×296.35(V)
Panel Resolution2560*1440
Refresh Rate180HZ
Backlight TypeELED
BrightnessFactory Control Value200±30
Maximum Brightness250 (Typ.)
Contrast Ratio1000
Support Colour16.7M
Colour GamutsRGB99%
HDRYes
View Angle (H/V)178/178
Response Time14ms (TYP)
ElectronicsI/O Ports (Standard)DC+2HDMI+2DP+Audio
MPRT1ms
OD5ms
SpeakerOptional
Adapter Power36W (12V 3A)
Adapter TypeExternal Power Adapter
Standby Power Consumption≤0.5W
Indicator Light ModePower on: Blue (LED)
StructureAppearance ColorBlack
Unit SizeUnit W/stand543.24*404.5*173mm
Unit W/O stand543.24*319.85*37mm
Packing Size602*131*408mm
WeightNet Weight3.8kg
Gross Weight4.9kg
Stand FunctionsAngle
(Forward /Back-Lean)		Forward: 5° ±3°
Lean Back: 15°±3°
Up and Down(Vertical)100mm
Rotation Angle (L/R)15°
Rotation Angle (V)90°
VESAVESA Dimension100*100MM
Easy to DisassembleYes
SoftwareControl ModeCommon Blue/White OSD
Language Menu10 Countries Language
Main FunctionsColor Temperature(Cool、Warm、Normal、User)
Low Blue Light Control
6 Contextual Models
DCR
Multiple-Language Menu
Backlight adjustment w/o flicker
FPS/RTS Game Mode with 1 key-switch
GAME PLUS
FreeSync
Storage and Working EnvironmentWorking Temperature0ºC~40ºC
Storage Temperature-20ºC~60ºC
Working Humidity10~85%RH
Storage Humidity5~90% (No Freezing Under 40ºC )
Altitudes≤5000m
Annex ListUSER MANUALYes
HDMI CableYes
Power Adapter with Power CableYes
Lock the Pay ScrewNA
