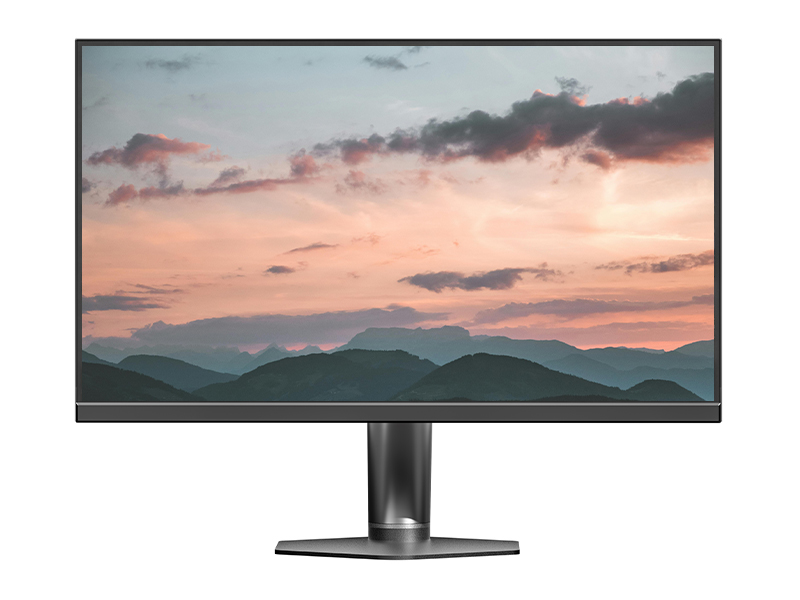

TENFLY TD-MN238GQYR1

23.8″ 180Hz QHD IPS Monitor | 2560×1440 Resolution | 1ms MPRT with HDR | VESA Compatible for Smooth Visuals

Overview

TENFLY TD-MN238GQYR1 is a 23.8-inch QHD monitor developed under the TENFLY brand, built to deliver exceptional clarity and smooth performance. With a 2560×1440 resolution, 180Hz refresh rate, and an IPS panel for vivid colors and wide 178° viewing angles, it’s ideal for professional work, multimedia, and light gaming. Equipped with dual HDMI and dual DisplayPort inputs, TD-MN238GQYR1 ensures flexible connectivity. As part of TENFLY’s self-owned product line, this model supports OEM/ODM customization to meet the diverse needs of global B2B clients.

Key Features

  • 23.8″ QHD (2560×1440) IPS panel with vivid sRGB 99% color
  • 180Hz refresh rate for fluid and responsive viewing
  • HDR support + Flicker-free backlight + Low blue light mode
  • 1ms MPRT and 5ms OD for sharper motion rendering
  • 2×HDMI + 2×DP + Audio for multi-device input
  • Optional built-in speakers; external 36W (12V 3A) power adapter
  • VESA mount compatible (100×100mm); tool-free assembly

Application Scenarios

Business & Content Creation – High resolution and wide color support for productivity and visuals

Education & Public Display – Reliable and adaptable for schools, training centers, or signage

Gaming & Multimedia – 180Hz refresh rate and game-focused presets for smooth play

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

Model No (Factory No.)TENFLY TD-MN238GQYR2
Backlight ModuleOC ModelBOE/CSOT
Panel TypeIPS
Flat/CurveFlat
Aspect Ratio16:09
Screen Size23.8″
Display Area (H*V)526.85(H) ×296.35(V)
Panel Resolution2560*1440
Refresh Rate180HZ
Backlight TypeELED
BrightnessFactory Control Value200±30
Maximum Brightness250 (Typ.)
Contrast Ratio1000
Support Colour16.7M
Colour GamutsRGB99%
HDRYes
View Angle (H/V)178/178
Response Time14ms (TYP)
ElectronicsI/O Ports (Standard)DC+2HDMI+2DP+Audio
MPRT1ms
OD5ms
SpeakerOptional
Adapter Power36W (12V 3A)
Adapter TypeExternal Power Adapter
Standby Power Consumption≤0.5W
Indicator Light ModePower On: Blue (LED)
      StructureAppearance ColorBlack
Unit SizeUnit W/stand543.24*404.5*173mm
Unit W/O stand543.24*319.85*37mm
Packing Size602*131*408mm
WeightNet Weight2.7kg
Gross Weight3.8kg
Stand FunctionsAngle
(Forward /Back-Lean)		Forward: 5° ±3°
Lean Back: 15°±3°
Up and Down (Vertical)NA
Rotation Angle (L/R)NA
Rotation Angle (V)NA
VESAVESA Dimension100*100MM
Easy to DisassembleYes
SoftwareControl ModeCommon Blue/White OSD
Language Menu10 Countries Language
Main FunctionsColor Temperature(Cool、Warm、Normal、User)
Low Blue Light Control
6 Contextual Models
DCR
Multiple-Language Menu
Backlight adjustment w/o flicker
FPS/RTS Game Mode with 1 key-switch
GAME PLUS
Storage and Working EnvironmentWorking Temperature0ºC~40ºC
Storage Temperature-20ºC~60ºC
Working Humidity10~85%RH
Storage Humidity5~90% (No Freezing Under 40ºC )
Altitudes≤5000m
Annex ListUSER MANUALYes
HDMI CableYes
Power Adapter with Power CableYes
Lock the Pay ScrewNA
