TENFLY TD-MN238BFST2
23.8″ FHD VA Monitor | 100Hz | 99% sRGB | 3000:1 Contrast | Dual HDMI
Overview

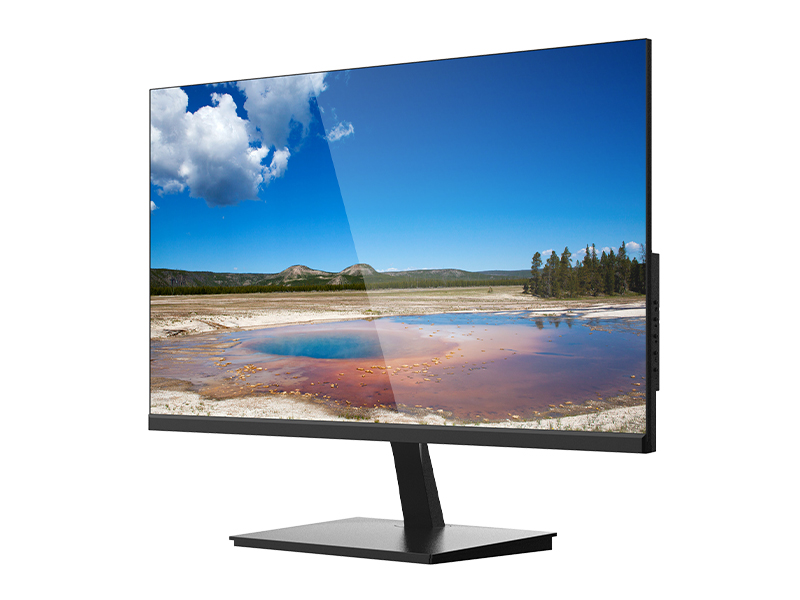

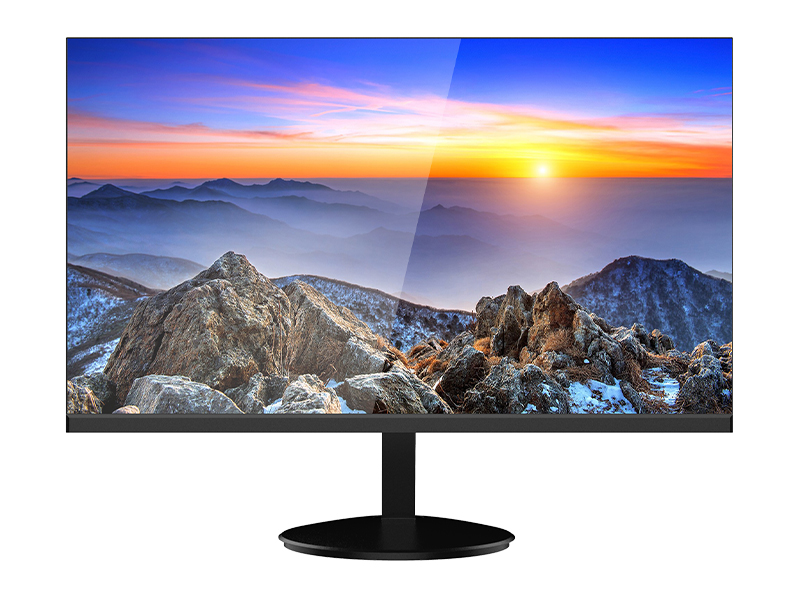

TENFLY TD-MN238BFST2 is a high-quality 23.8-inch flat screen monitor designed to meet a variety of user needs. It adopts a VA panel with a 16:9 aspect ratio and a resolution of 1920×1080, bringing a clear and realistic immersive visual experience. With a refresh rate of 100Hz and a 99% sRGB color gamut, it is able to present vivid and smooth images. The monitor features an energy-saving design, a black appearance and an adjustable stand, making it suitable for different work and home environments.
Key Features
Application Scenarios
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Model No. | TENFLY TD-MN238BFST2 | ||
| Backlight Module | OC Model | BOE/CSOT | |
| Panel Type | VA | ||
| Flat/Curve | Flat | ||
| Aspect Ratio | 16:09 | ||
| Screen Size | 23.8″ | ||
| Display Area (H*V） | 526.85(H) ×296.35(V) | ||
| Panel Resolution | 1920*1080 | ||
| Refresh Rate | 100HZ | ||
| Backlight Type | ELED | ||
| Brightness | Factory Control Value | 200±30 | |
| Maximum Brightness | 250 (Typ.) | ||
| Contrast Ratio | 3000 | ||
| Support Colour | 16.7M | ||
| Colour Gamut | sRGB | 99% | |
| HDR | NA | ||
| View Angle (H/V） | 178/178 | ||
| Response Time | 14ms (TYP) | ||
| Electronics | I/O Ports (Standard） | DC+HDMI+HDMI | |
| MPRT | NA | ||
| OD | NA | ||
| Speaker | NA | ||
| Adapter Power | 24W (12V 2A) | ||
| Adapter Type | External Power Adapter | ||
| Standby Power Consumption | ≤0.5W | ||
| Indicator Light Mode | Power On:Blue (LED) | ||
| Structure | Appearance Color | Black | |
| Unit Size | Unit W/stand | 543.24*404.5*173mm | |
| Unit W/O stand | 543.24*319.85*37mm | ||
| Packing Size | 602*131*408mm | ||
| Weight | Net Weight | 2.7kg | |
| Gross Weight | 3.8kg | ||

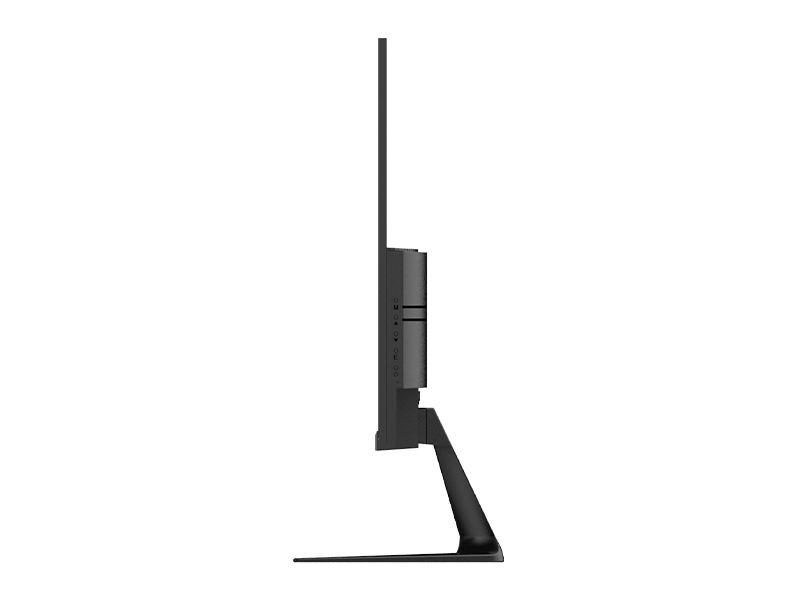

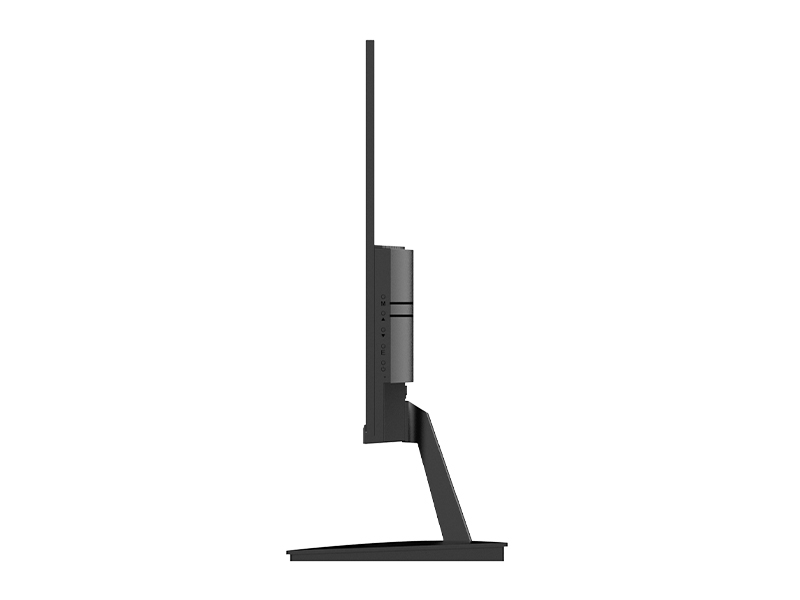

| Stand Functions | Angle(Forward/Back-Lean） | Forward: 5° ±3° Lean Back: 15°±3° | |
| Up and Down (Vertical） | NA | ||
| Rotation Angle (L/R） | NA | ||
| Rotation Angle (V） | NA | ||
| VESA | VESA Dimension | 75*75MM | |
| Easy to Disassemble | Yes | ||
| Software | Control Mode | Common Blue/White OSD | |
| Language Menu | 10 Countries Language | ||
| Main Functions | Color Temperature(Cool、Warm、Normal、User） | ||
| Low Blue Light Control | |||
| 6 Contextual Models | |||
| DCR | |||
| Multiple-Language Menu | |||
| Backlight adjustment w/o flicker | |||
| FPS/RTS Game Mode with 1 key-switch | |||
| GAME PLUS | |||
| Storage and Working Environment | Working Temperature | 0ºC~40ºC | |
| Storage Temperature | -20ºC~60ºC | ||
| Working Humidity | 10~85%RH | ||
| Storage Humidity | 5~90% (No Freezing under 40ºC ） | ||
| Altitudes | ≤5000m | ||
| Annex List | USER Manual | Yes | |
| HDMI Cable | Yes | ||
| Power Adapter with Power Cable | Yes | ||
| Lock the Pay Screw | NA | ||
