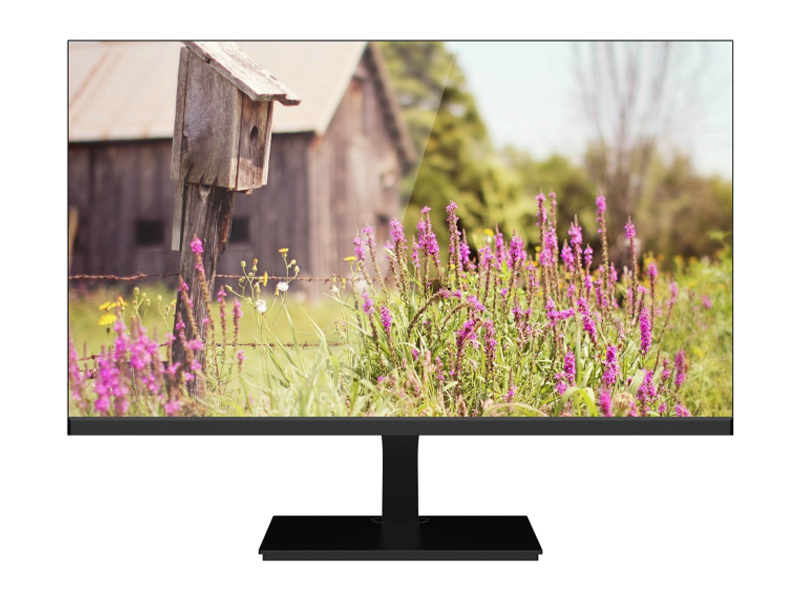

TENFLY TD-MN238BFST1
23.8″ FHD IPS Monitor | 100Hz | 99% sRGB | Adjustable Stand | Flicker-Free&Low Blue Light
Overview
TENFLY TD-MN238BFST1 is a 23.8-inch full HD IPS monitor designed for efficient office and entertainment. It uses BOE/CSOT original IPS hard panel, supports 100Hz refresh rate and 99% sRGB wide color gamut, with flicker-free backlight technology and low blue light mode. It is equipped with dual HDMI ports, supports pitch adjustment and VESA wall mounting (75×75mm), and the thinnest part of the body is only 37mm, meeting the needs of multiple scenarios.
Key Features
Application Scenarios
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Model No. | TENFLY TD-MN238BFST1 | ||
| Backlight Module | OC Model | BOE/CSOT | |
| Panel Type | IPS | ||
| Flat/Curve | Flat | ||
| Aspect Ratio | 16:9 | ||
| Screen Size | 23.8″ | ||
| Display Area (H*V） | 526.85(H) ×296.35(V) | ||
| Panel Resolution | 1920*1080 | ||
| Refresh Rate | 100HZ | ||
| Backlight Type | ELED | ||
| Brightness | Factory Control Value | 200±30 | |
| Maximum Brightness | 250 (Typ.) | ||
| Contrast Ratio | 1000 | ||
| Support Colour | 16.7M | ||
| Colour Gamut | sRGB | 99% | |
| HDR | NA | ||
| View Angle(H/V） | 178/178 | ||
| Response Time | 14ms (TYP) | ||
| Electronics | I/O Ports (Standard) | DC+HDMI+HDMI | |
| MPRT | NA | ||
| OD | NA | ||
| Speaker | NA | ||
| Adapter Power | 24W (12V 2A) | ||
| Adapter Type | External Power Adapter | ||
| Standby Power Consumption | ≤0.5W | ||
| Indicator Light Mode | Power On:Blue (LED) | ||
| Structure | Appearance Color | Black | |
| Unit Size | Unit W/stand | 543.24*404.5*173mm | |
| Unit W/O stand | 543.24*319.85*37mm | ||
| Packing Size | 602*131*408mm | ||
| Weight | Net Weight | 2.7kg | |
| Gross Weight | 3.8kg | ||
| Stand Functions | Angle(Forward/Back-Lean) | Forward: 5° ±3° Lean Back: 15°±3° | |
| Up and Down(Vertical) | NA | ||
| Rotation Angle (L/R) | NA | ||
| Rotation Angle (V) | NA | ||

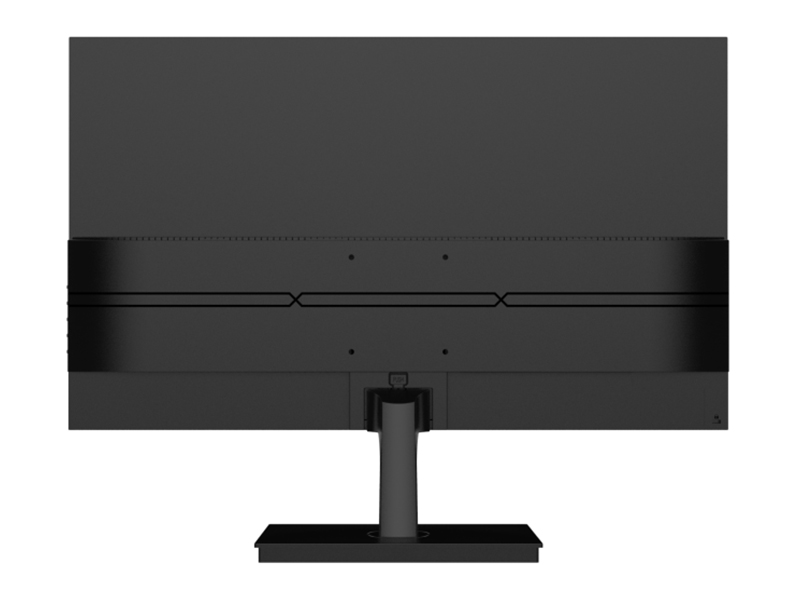

| VESA | VESA Dimension | 75*75MM | |
| Easy to Disassemble | Yes | ||
| Software | Control Mode | Common Blue/White OSD | |
| Language Menu | 10 Countries Language | ||
| Main Functions | Color Temperature(Cool、Warm、Normal、User) | ||
| Low Blue Light Control | |||
| 6 Contextual Models | |||
| DCR | |||
| Multiple-Language Menu | |||
| Backlight adjustment w/o flicker | |||
| FPS/RTS Game Mode with 1 key-switch | |||
| GAME PLUS | |||
| Storage and Working Environment | Working Temperature | 0ºC~40ºC | |
| Storage Temperature | -20ºC~60ºC | ||
| Working Humidity | 10~85%RH | ||
| Storage Humidity | 5~90% (No Freezing under 40ºC ) | ||
| Altitudes | ≤5000m | ||
| Annex List | USER Manual | Yes | |
| HDMI Cable | Yes | ||
| Power Adapter with Power Cable | Yes | ||
| Lock the Pay Screw | NA | ||
