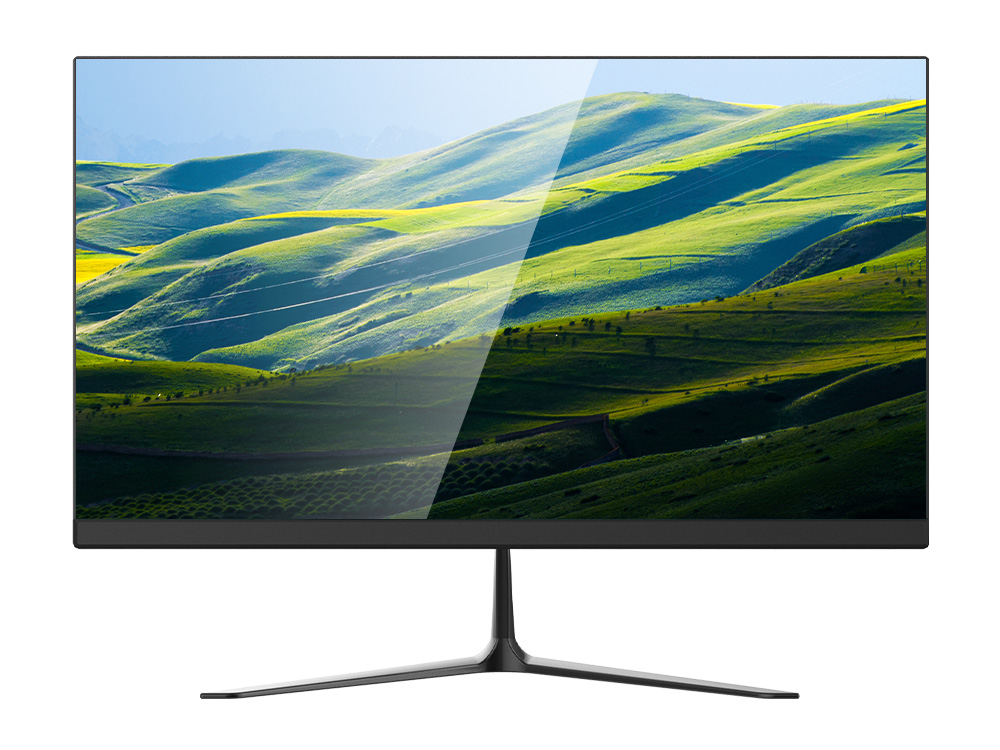

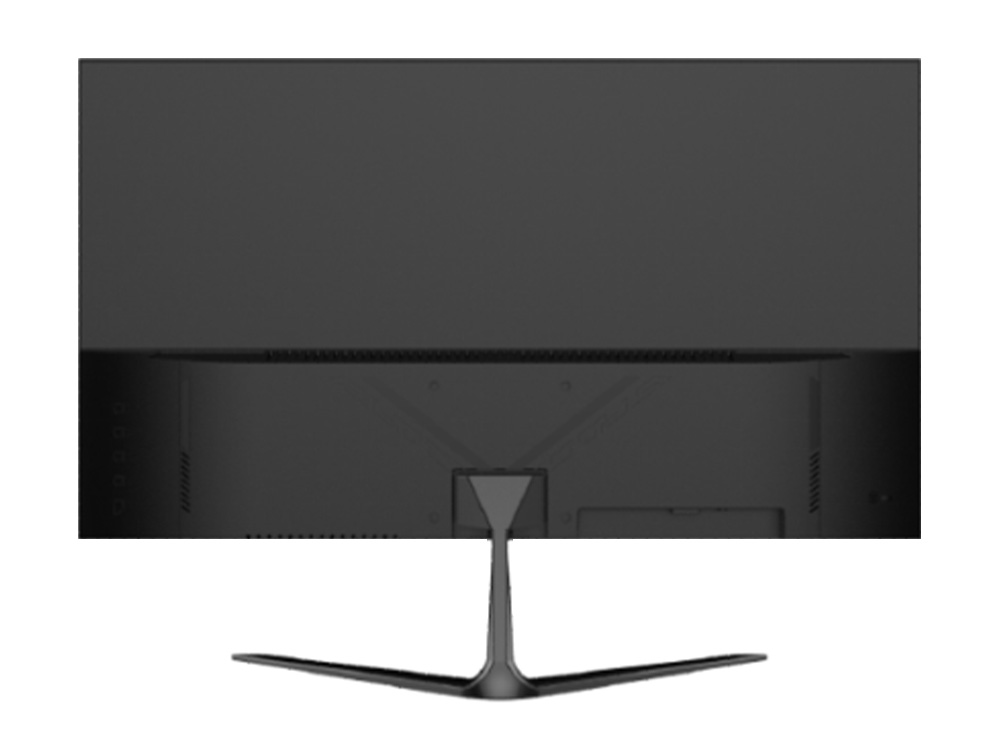

TENFLY TD-MN2145F

21.45” FHD VA Basic Monitor, 60Hz Refresh Rate, 6.5ms Response Time, Ultra-Slim 7mm Design

Overview

TENFLY TD-MN2145 21.45” VA Monitor features an ultra-slim 7mm profile and three-side narrow bezels for a clean, modern look. Its VA panel delivers sharp visuals with wide viewing angles and a 1000000:1 dynamic contrast ratio. Eye-care technologies like low blue light and flicker-free ensure comfortable viewing, while HDMI and VGA ports offer flexible connectivity for everyday use.

Key Features

  • Extremely slim body (7mm at the thinnest point) + three-sided micro-frame, upgraded immersion
  • VA wide-viewing angle panel, 178° viewing angle + 1 million:1 dynamic contrast ratio, vivid colors without color cast
  • Fast 6.5ms response, no ghosting for office and entertainment, smoother screen switching
  • Low blue light + no flicker, more comfortable for long-term use
  • Freely switch ratios, one-click adaptation to multiple screen ratios for games/films/offices
  • Full-process OEM/ODM, comprehensive customization from hardware (appearance/interface) to software (firmware/UI)

Application Scenarios

Office Professionals – Slim design saves space, while eye-care tech ensures comfort during long work sessions

Home Entertainment – Vivid VA panel and fast response deliver immersive movie/gaming experiences

Gamers – Adjustable ratios and 6.5ms response optimize competitive gameplay

Digital Signage – Wide viewing angles and ODM customization suit retail/public displays

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

ModelTENFLY TD-MN2145
Screen Size21.45″W
Screen Ratio16:9
Panel TypeWLED VA technology
Visible Size (Diagonal)544.8mm
Dot Pitch (Horizontal/Vertical)0.2493(H)×0.241(V) mm
Screen Size (Horizontal/Vertical)478.656(H) x 260.28(V)mm
Brightness (Typical)220 cd/m²
Contrast Ratio (Typical)1000000:1(dynamic)3000:1(static)
Response Time (Typical)6.5ms
Viewing Angle (Horizontal/Vertical) (Typical)178°/178°(CR≥10)
Scan Frequencylevel:30 to 83kHzvertical:48~75Hz
Maximum Resolution1920*1080@60Hz
Recommended Resolution (Typical)1920*1080@60Hz
Display Color16.7M
Color Gamut (Typical)98% sRGB (BT.709)Color gamut area (based on CIE 1931)
Factory Calibration (Average Value)ΔE<2
HDCP CapabilitySupported
Signal InputD-SUB,HDMI
InterfaceVGA, HDMI
Power SupplyDC 12V, 2.5A
Power ConsumptionNormal working ≤20W;MAX≤ 24WStandby:≤0.5W
Plug and PlayVESA DDC2B/CI
User ControlsSignal source switching/Exit,
Brightness adjustment/up/increase/right,
Brightness scene mode/Decrease/Left, Menu/Confirm, Power Switch
OSD LanguageChinese, English, French, Italian, German, Dutch, Portuguese, Spanish, Turkish, Polish, Japanese, Korean
TrumpetNone
CertificationCCC, CEL, CH RoHS
Wall MountVESA 75mm×75mm
Shell ColorBlack
Institutional FunctionsTilt: -5°~15°
Screen rotation: No
Height adjustment: No
Left and right rotation: No
Dimensions (Display) mmL494mm*W163mm*H363mm (with stand) L494mm*W37mm*H283mm (without stand)
Dimensions (Carton) mmL563mm*W122mm*H355mm
Weight (Net Weight/Gross Weight)2.2kg/3.2kg
Packing ListLCD monitor, stand/base, power adapter, HDMI signal cable
