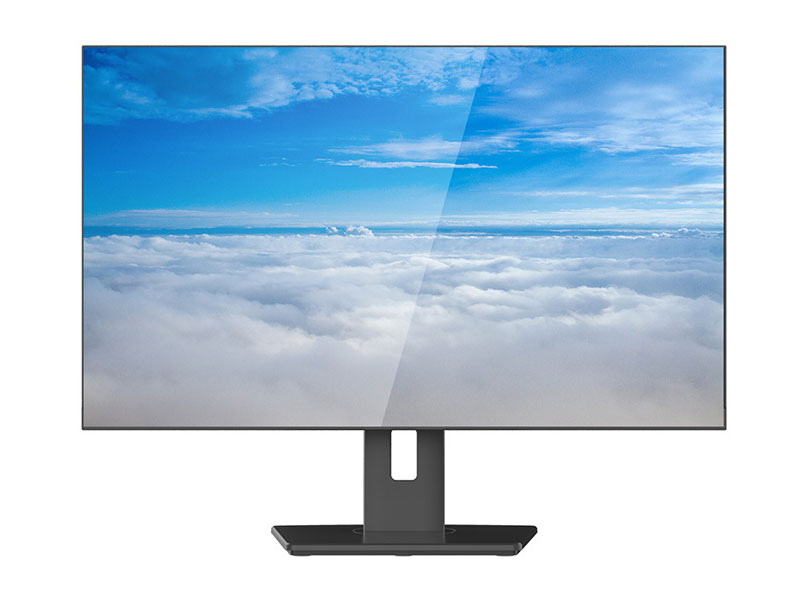

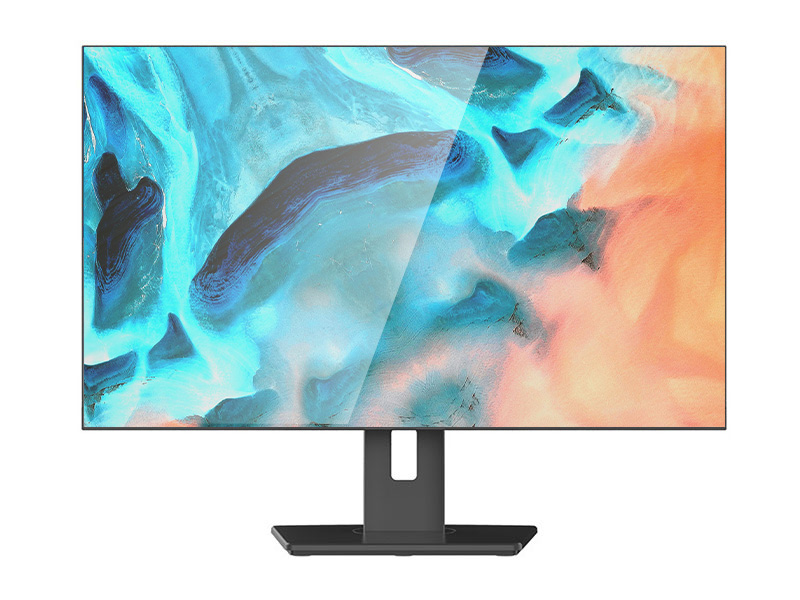

TENFLY TD-AIOH2709B
27″ Business AIO | Intel 12th/13th Gen Core i5 | 3000:1 VA FHD | Dual DDR4 Storage (M.2+2.5″) | Tool-Free Stand | VESA Mount
Overview
TENFLY TD-AIOH2709B AIO PC combines sleek design with flexible performance, powered by Intel® 12th/13th Gen processors (Celeron to Core™ i7, optional). Featuring a 27-inch Full HD VA display with 178° wide viewing angles, it supports dual-channel DDR4 memory (up to 64GB) and dual storage (M.2 NVMe + 2.5″ SATA).
Customizable for your needs, it offers optional Wi-Fi/Bluetooth, versatile I/O ports, tilt adjustment, and 100×100mm VESA mount compatibility—making it ideal for both professional and personal environments.
Key Features
Application Scenarios
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Product Model | TD-AIOH2709B |
| Color | Black |
| Operating System | Windows 10 64-bit (UEFI Mode Only) |
| Panel Manufacturer/Model | OE P270HVN02.0 (optional) |
| Screen Size / Aspect Ratio | 27-inch, 16:9 LED-backlit |
| Panel Type | VA |
| Diagonal Size | 68.5CM |
| Resolution | 1920×1080@60Hz |
| Refresh Rate | 60Hz |
| Default Color Temperature | 6500K±800K |
| Display Area | 597.6mm(H)*336.15mm(V) |
| Pixel Pitch | 0.31125(H)x0.31125(V)mm |
| Color Depth | 16.7M |
| Brightness (Typ.) | 250±30 cd/m² |
| Contrast Ratio | 3000:1[Typ.] / 1800:1[Min.] |
| Response Time | 20ms |
| Color Gamut | NTSC：72% |
| Viewing Angle | 178°(H)/178°(V)(CR≧10) |
| Uniformity | 75%[Typ.] & 70%[Min.] |
| CPU | Intel Core i5-12400 (Optional Intel 12th/13th Gen Integrated Graphics CPU) |
| CPU Frequency | 2.5GHz |
| Number of Cores | 6 cores / 12 threads |
| Display Chip | Intel UHD Graphics 730 |
| TDP Power Consumption | 65W |
| Motherboard Model | H610I |
| Port Diagram |  |
| Chipset | Intel H610 |
| Memory Slots | 2 x SO-DIMM DDR4 (supports 2666MHz / 2933MHz), Max 64 GB |
| Storage | 1 x M.2 2242/2280 SATA/NVMe SSD, 1 x 2.5″ SATA SSD/HDD |
| LAN | RJ-45 (10/100/1000 M Ethernet) x 1 |
| Wi-Fi Slot | M.2 2230 x 1 |
| USB Ports | USB 3.0 x 4, USB 2.0 x 2 (rear) |
| COM Port | X 1 |
| HDMI Output | X 1 |
| Audio Ports | Headphone Jack: ∮3.5mm x 1Microphone Jack: ∮3.5mm x 1 |
| Power Input | DC-in (5525) 19V x1 |
| Memory | DDR4 2666MHz 16G(optional） |
| Storage | 512G M.2 SSD(optional） |
| Graphics | Integrated |
| WIFI | Fn-Link 6221M-PUC (2.4GHz / 5GHz, Bluetooth 5.0, optional) |
| Extended USB Ports | USB 2.0 x2 (rear) |
| Speakers | 2 x 3W, 8Ω |
| Camera | NA |
| Optical Drive | NA |
| Power Adapter | 19V,6.32A |
| Front Bezel / Front Decorative Strip | ABS, black, textured (integrated with mid-frame) |
| Frame Bezel | NA |
| Middle Frame | ABS, black, textured |
| Rear Cover | ABS, black, textured |
| Buttons | ABS, black, textured |
| Mainboard Shielding Plate | SGCC, natural color |
| Hinge Cover | ABS, black, textured + glossy finish |
| Stand | Square quick-release handle, aluminum alloy, black painted, textured |
| Base | Square, aluminum alloy, black painted, textured |
| VESA Mount | 100 mm x 100 mm |

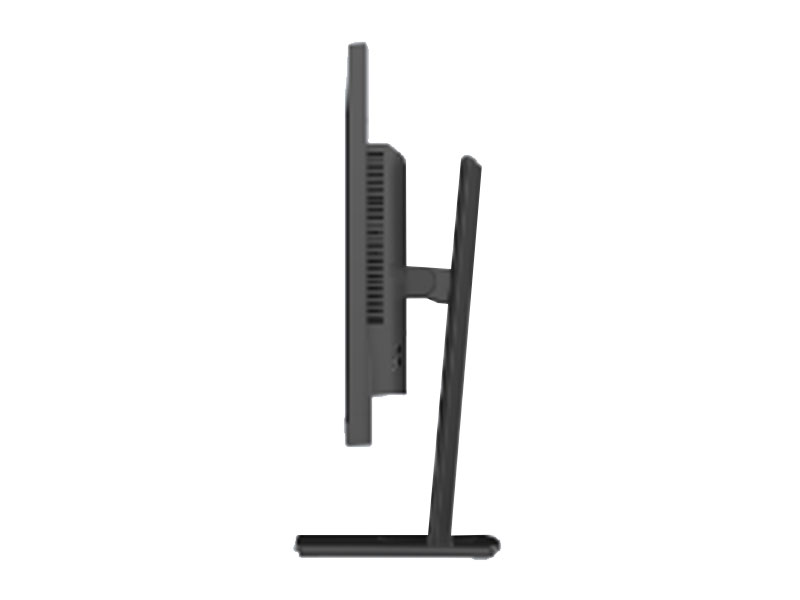

| Tilt Angle | -5°~15°（±3°） |
| Height Adjustment | 0~150 mm（±5 mm） |

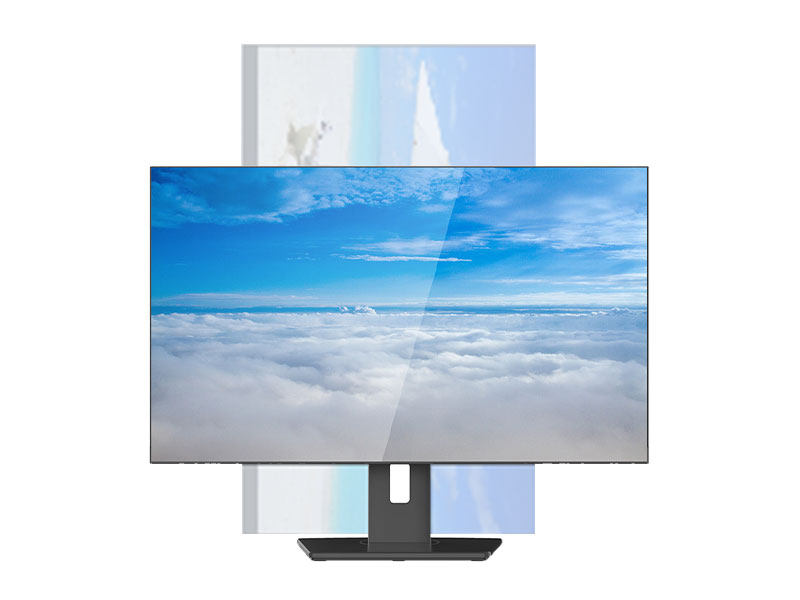

| Swivel / Pivot | Swivel: ±45° / Pivot: ±90° |
| Packaging Materials | Left and Right EPE Foam (Expanded Polyethylene Foam) |
| Product Dimensions | 615(W)x 208(D)x 424~574(H)mm (with stand)615(W)x 61(D)x 367(H)mm (without stand) |
| Package Contents | AIO PC, Stand, Base, Power Adapter, Power Cord |
| Net Weight / Gross Weight | 5.6 kg / 7.8 kg (Subject to actual product) |
