TENFLY TD-AIOH2709A
27″ Business AIO | Intel 12th/13th Gen Core i3/i5 | Dual DDR4 Storage (M.2+2.5″) | Tool-Free Quick-Release Stand | VESA Mount
Overview

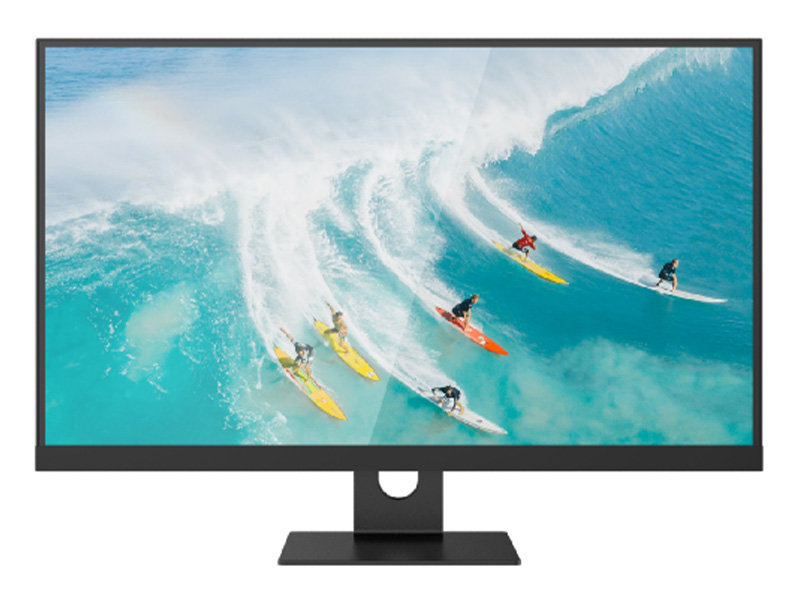

TENFLY 27″ AIO PC blends performance, style, and practicality. It features a Full HD VA display and supports Intel Celeron, Pentium, and Core i3/i5/i7 processors.

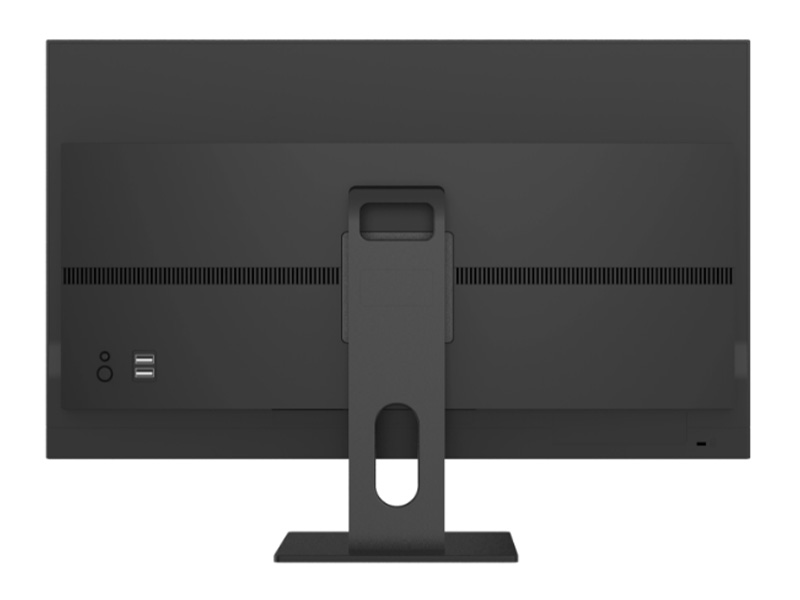

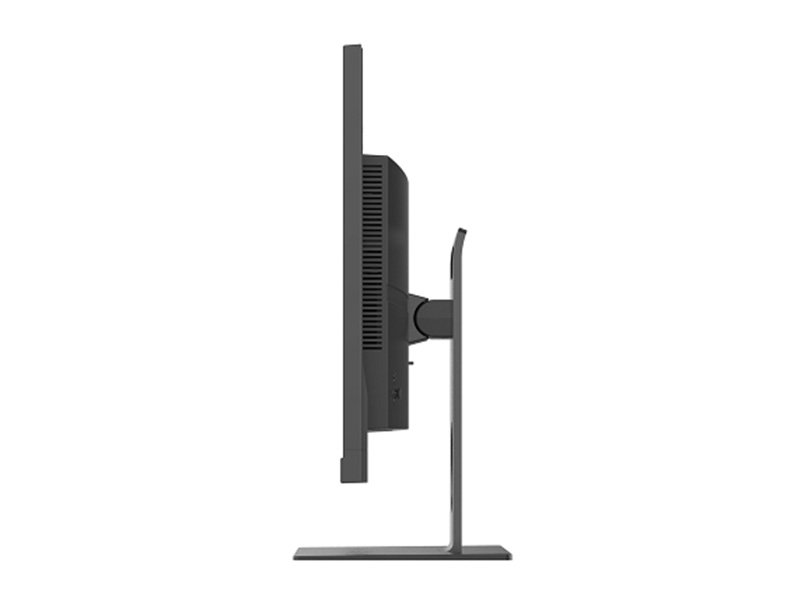

With dual DDR4 memory slots and support for both 2.5″ and M.2 SSDs, it offers strong upgrade flexibility. The aluminum stand includes a built-in handle and quick-release design for easy setup and mobility. Efficient cooling and 100×100mm VESA mount support further enhance its usability.
Key Features
Application Scenarios
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Product Name | TD-AIOH2709A |
| Color | Black |
| Screen Size / Aspect Ratio | 27-inch, 16:9 LED-backlit |
| Panel Type | VA |
| Diagonal Size | 68.5CM |
| Resolution | 1920×1080@60Hz |
| Refresh Rate | 60Hz |
| Default Color Temperature | 6500K±800K |
| Display Area | 597.6mm(H)*336.15mm(V) |
| Pixel Pitch | 0.31125(H)x0.31125(V)mm |
| Color Depth | 16.7M |
| Brightness (Typ.) | 250±30 cd/m² |
| Contrast Ratio | 3000:1[Typ.] / 1800:1[Min.] |
| Response Time | 20ms |
| Color Gamut | NTSC: 72% |
| Viewing Angle | 178°(H)/178°(V)(CR≥10) |
| Uniformity | 75%[Typ.] & 70%[Min.] |
| CPU | Intel Core i3-12100 / i5-12400 (Optional 12th/13th Gen with integrated graphics) |
| CPU Frequency | 3.3GHz（I3-12100）/2.5GHz(I5-12400） |
| Number of Cores | 4 cores / 8 threads（I3-12100）6 cores / 12 threads（I5-12400） |
| Display Chip | Intel UHD Graphics 730 |
| TDP Power Consumption | 65W |
| Motherboard Model | H610I |
| Port Diagram |  |
| Chipset | Intel H610 |
| Memory Slots | 2 x SO-DIMM DDR4 (supports 2666MHz / 2933MHz), Max 64GB |
| Storage | 1 x M.2 2242/2280 SATA/NVMe SSD, 1 x 2.5″ SATA SSD/HDD |
| LAN | RJ-45 (10/100/1000M Ethernet) x 1 |
| Wi-Fi Slot | M.2 2230 x 1 |
| USB Ports | USB 3.0 x 4, USB 2.0 x 2 (rear) |
| COM Port | X 1 |
| HDMI Output | X 1 |
| Audio Ports | 3.5 mm headphone jack x 1,3.5 mm mic jack x 1 |
| Power Input | DC-in (5525) 19V x 1 |
| Memory | 8GB / 16GB / 32GB DDR4 (optional) |
| Storage | 256GB / 512GB / 1TB SSD (supports onboard + 2.5″ dual drive) |
| Graphics | Integrated |
| WIFI | Fn-Link 6221M-PUC (2.4GHz / 5GHz, Bluetooth 5.0, optional) |
| Extended USB Ports | USB 2.0 x 2 (rear) |
| Speakers | 2 x 3W, 8Ω |
| Camera | NA |
| Optical Drive | NA |
| Power Adapter | 19V,6.32A |
| Front Bezel / Front Decorative Strip | ABS, black, textured (integrated with mid-frame) |
| Frame Bezel | NA |
| Middle Frame | ABS, black, textured |
| Rear Cover | ABS, black, textured |
| Buttons | ABS, black, textured |
| Mainboard Shielding Plate | SGCC, natural color |
| Hinge Cover | ABS, black, textured + glossy finish |
| Stand | Square quick-release handle, aluminum alloy, black painted, textured |
| Base | Square, aluminum alloy, black painted, textured |
| VESA Mount | 100 mm x 100 mm |
| Tilt Angle | -5°~15°（±3°） |
| Height Adjustment | NA |
| Swivel / Pivot | NA |
| Net Weight / Gross Weight | 6.2 kg / 8.1 kg (Subject to actual product) |
