TENFLY TD-AIOH2409
23.8″ Commercial AIO | Intel 12th Gen i5-12400 (6-Core) | 64GB DDR4 RAM | Dual Storage (M.2+2.5″) | Lift-Up Webcam | Ergonomic Height-Adjustable Stand
Overview
TENFLY is committed to delivering high-performance, highly reliable computing solutions tailored for business and institutional environments worldwide.
The TD-AIOH2409 all-in-one PC exemplifies TENFLY’s pursuit of ergonomic design, broad compatibility, and modern aesthetics. As a dedicated brand focusing on AIO PCs and display technologies, TENFLY is rooted in the strength of China’s intelligent manufacturing and global supply chains. We offer flexible customization and trusted quality, empowering our partners with smart, efficient, and future-ready workspaces.
Key Features
Application Scenarios
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Product Name | TD-AIOH2409 |
| Product color | Black |
| Operating System | Windows 10 64-bit (Only supports UEFI mode system) |
| Display Manufacturer/Model | BOE MV238FHB-N30 (optional) |
| Display Size/Ratio | 23.8-inch 16:9 LED-backlit widescreen |
| Display Mode | ADS(IPS) |
| Diagonal Size | 60.5CM |
| Resolution | 1920×1080@60Hz |
| Refresh Rate | 60Hz |
| Default Color Temperature | 6500K |
| Screen Size | 527.04(H) x 296.46(V)mm |
| Dot Pitch | 0.2745*0.2745mm |
| Display Color | 16.7M(6-bit (Hi-FRC)) |
| Brightness (Typ.) | 220±20 cd/m² |
| Contrast | 1000:1[Typ.] / 700:1[Min.] |
| Response Time | 14ms [GTG,Typ.] |
| Color Gamut | NTSC: 74% |
| Viewing Angle | 178°(H)/178°(V)(CR≥10) |
| Uniformity | 75%[Typ.] & 70%[Min.] |
| CPU | I3-12100/I5-12400 (optional Intel 12th and 13th generation integrated graphics CPU) |
| CPU Frequency | 3.3GHz (I3-12100)/2.5GHz (I5-12400) |
| Number of Cores | Four cores and eight threads (I3-12100) / six cores and twelve threads (I5-12400) |
| Display Chip | Intel UHD Graphics 730 |
| TDP Power Consumption | 65W |
| Motherboard Model | JW H610I |

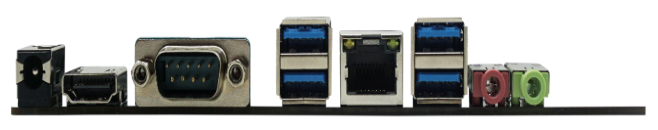

| Port Diagram |  |
| Chipset | Intel H610 |
| Memory Slots | SO-DIMM DDR4 memory slot*2 (supports 2666MHz/2933MHz memory frequency) 64G MAX |
| Storage | M.2 2242/2280 SSD*1, 2.5inch SATA SSD/HDD*1 |
| LAN | RJ-45 (10/100/1000M Ethernet Lan)*1 |
| Wi-Fi Slot | M.2 2230*1 |
| USB Ports | USB 3.0*4 |
| COM Port | COM*1 |
| HDMI Output | HDMI OUT*1 |
| Audio Ports | Headphone jack ∮3.5mm*1 Microphone jack ∮3.5mm*1 |
| Power Input | DC-in (5525) 19V input x 1 |
| Memory | DDR4 8G/16G/32G (optional) |
| Hard Disk | 256G/512G/1T SSD (optional) |
| Graphics | Integrated Graphics |
| WIFI Model | Yongxu NFA821 (2.4GHz/802.11 a/b/g/n & 5GHz/802.11ac, Bluetooth 2.1/4.2) (optional) |
| Extended USB Port | USB2.0*2(side) |
| Speaker Function | 8Ω/3W * 2 |

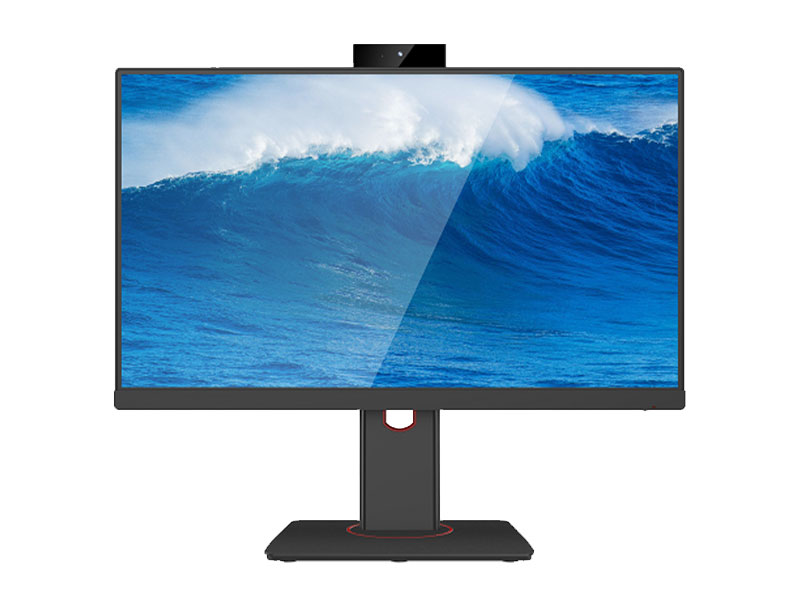

| Camera | Lifting camera, 3MP/with microphone (optional) |
| Optical Drive | Notebook optical drive*1 |
| Power Adapter | External desktop adapter, DC 19V 6.32A (120W) |
| Front Frame | ABS, black, brushed |
| Frame | NA |
| Middle Frame | ABS, black, textured |

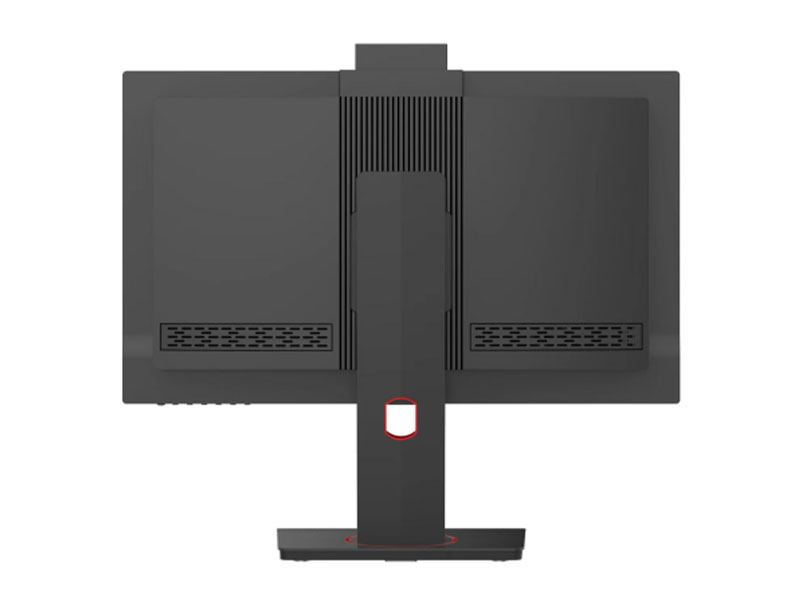

| Back Shell | ABS, black, brushed |
| Button | 1 button, ABS, black, textured(Made on the bottom of the middle frame) |
| Bracket | Square quick release lifting and rotating type, aluminum alloy + ABS,Black (red decoration), textured surface |
| Base | Square rotary, aluminum alloy + ABS, black (red decoration), textured surface |
| VESA Mount | 75 mm*75 mm |
| Axis Angle | -5°~22°（±3°） |

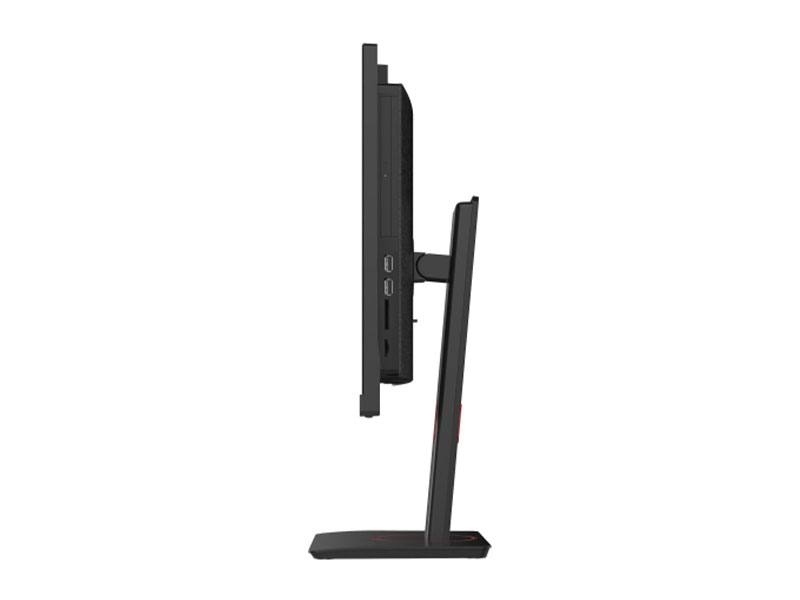

| Height Adjustment | 0~128 mm±3 mm |

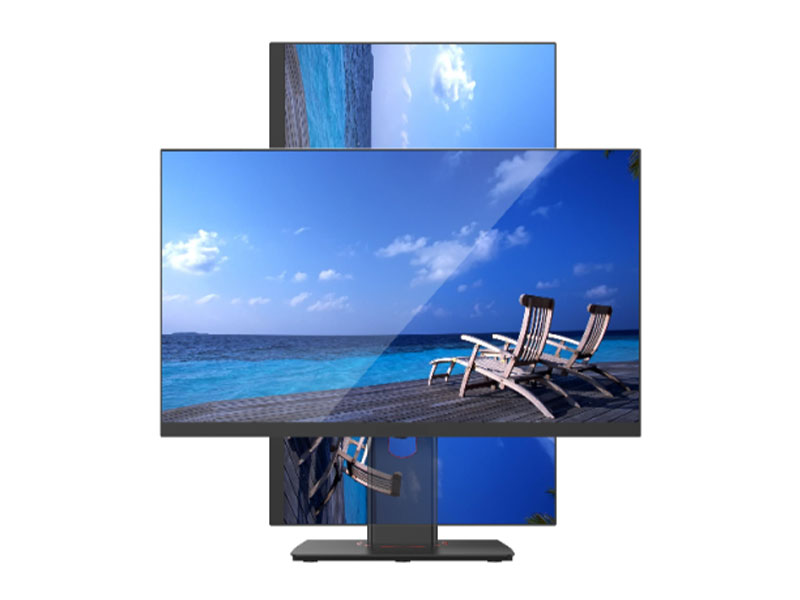

| Horizontal/Vertical Rotation | Horizontal ±45°/Vertical ±90° |
| Product Net Weight/Gross Weight | 5.5 kg / 7.5 kg (Subject to the final product) |
