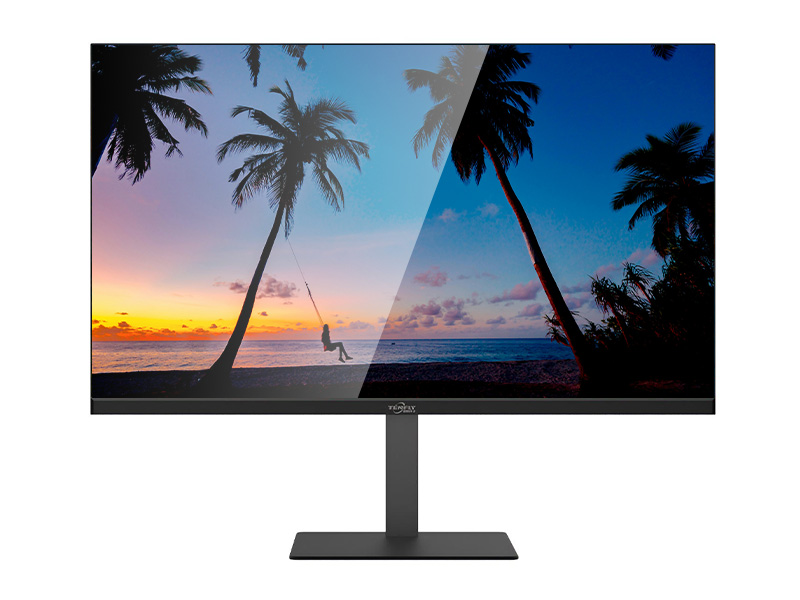

TENFLY TD-AIO270F06

27″ Commercial Ultra-Thin Flagship All-in-One PC丨6-Level CPU Performance Leap丨Intel N Series/ i3 i5丨4×USB 3.2 High-Speed Expansion

Overview

TENFLY TD-AIO270F06 All-in-One PC combines style and performance. It features a 27″ Full HD display (VA/IPS optional), a powerful processor, and rich interfaces (USB3.2×4, HDMI, Wi-Fi 5/6). The 39mm slim body is equipped with a VESA mount, making it suitable for home office use.

Key Features

  • 27″ 100Hz high refresh screen, 98% sRGB color gamut + 250 cd/m² brightness, 50% immersion
  • N5095 energy-saving version to i5-13420H performance version, single-channel DDR4 3200MHz memory balances power consumption and efficiency
  • M.2 NVMe second-speed boot + 2.5-inch expansion compartment, massive storage and smooth operation
  • 4×USB3.2+Gigabit network port+WiFi6, worry-free peripheral expansion
  • Only 39mm thick without base (one of the thinnest in the industry), VESA wall mount releases 75% of desktop space

Application Scenarios

Daily Office: low power consumption, quiet, low cost, sufficient performance for basic office work

Design Assistance/Multi-Tasking: high-performance CPU ensures smooth operation of design software and multi-tasking switching

Education/Front Desk Terminal: low maintenance cost, wall-mounted to save space and safe

Home Audio and Video Entertainment: balanced performance and audio and video experience, wide IPS viewing angle, dual hard drives for expanded storage

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

Product ModelTD-AIO270F06
Product ColorBlack/Silver (optional)
Display Size/Ratio27 inch/16:9
Operating SystemWindows 10/11
Panel TypeVA/IPS (optional)
Resolution1920*1080
Refresh Rate60Hz/100Hz (optional)
Color GamutsRGB coverage 98%
Viewing Angle178°(H)/178°(V)(CR≥10)
Brightness250 cd/m² (Typ.)
CPUN5095/N95/N150/I3-N305/I5-12450H/I5-13420H
Memory1*SO-DIMM DDR4 (support 2666/2933/3200MHz) 16G MAX
Hard DiskSupport M.2 2280 NVMe/SATA SSD*1, 2.5-inch SSD/HDD*1
WIFI&BTSupport Wi-Fi 5/Wi-Fi 6, BT 4.2/5.0/5.2
I/O PortsDCIN*1, HDMI*1, USB 3.2*4, RJ-45 (1000 M)*1, Ø3.5 mm Combo Audio Jack*1
I/O Ports Picture
Extension PortsUSB 2.0*2
VESA75 mm*75 mm
Machine Size with StandL610 mm*W160 mm*H456 mm
Machine Size without StandL610 mm*W39 mm*H361 mm
Packing SizeL725 mm*W145 mm*H512 mm
Net Weight5.1 kg
Gross Weight6.8 kg
