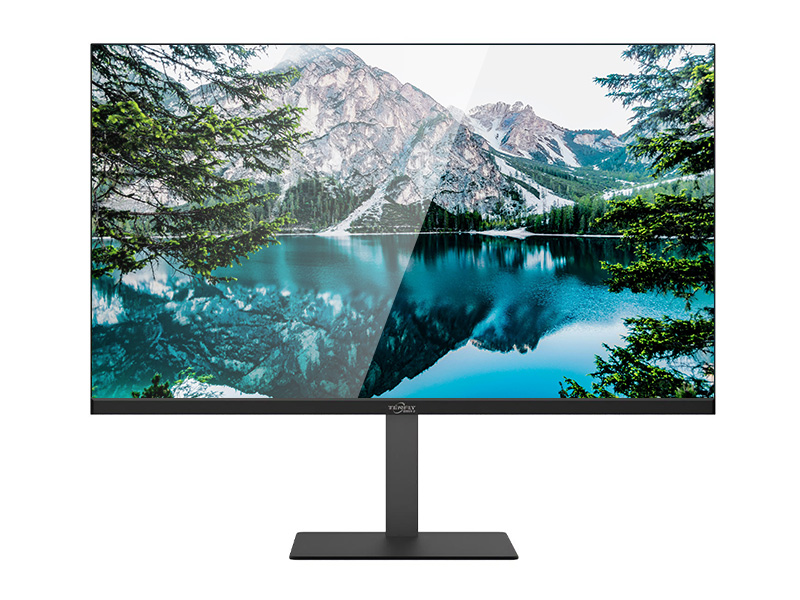

TENFLY TD-AIO238F06

23.8″ All-in-One PC | 39mm Slim Large Screen | Full Range of Intel® Processors | One-Stop Expansion for Multiple Devices

Overview

TENFLY TD-AIO238F06 All-in-One PC combines style and functionality, offering a 23.8” Full HD display with VA/IPS options, multiple processor choices, and flexible connectivity. Its compact design supports VESA mounting, making it suitable for home and office use.

Key Features

  • 23.8″ 1080P screen (60Hz/100Hz), 98% sRGB color gamut, 178° wide viewing angle, suitable for work and entertainment
  • Supports N5095/N95/i3/i5 and other multi-processors
  • 16GB MAX DDR4 memory, and dual storage (M.2 + 2.5-inch)
  • USB3.2×4, HDMI, RJ-45, Wi-Fi 5/6, Bluetooth, and USB2.0 expansion interface
  • 39mm ultra-thin body, 75mm VESA wall mount, and space-saving design

Application Scenarios

Office Workstations: efficient handling of documents, video calls, and multitasking

Retail & Hospitality: compact footprint for POS systems or digital signage

Light Creative Work: accurate color display for photo/video editing

Education & Training: reliable performance for interactive learning

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

Product ModelTD-AIO238F06
Product ColorBlack/Silver (optional)
Display Size/Ratio23.8 inch/16:9
Operating SystemWindows 10/11
Panel TypeVA/IPS (optional)
Resolution1920*1080
Refresh Rate60Hz/100Hz (optional)
Color GamutsRGB coverage 98%
Viewing Angle178°(H)/178°(V)(CR≥10)
Brightness220 cd/m² (Typ.)
CPUN5095/N95/N150/I3-N305/I5-12450H/I5-13420H
Memory1*SO-DIMM DDR4 (support 2666/2933/3200MHz) 16 GB MAX
Hard DiskSupport M.2 2280 NVMe/SATA SSD*1, 2.5-inch SSD/HDD*1
WIFI&BTSupport Wi-Fi 5/Wi-Fi 6, BT 4.2/5.0/5.2
I/O PortsDCIN*1, HDMI*1, USB 3.2*4, RJ-45 (1000M)*1, Ø3.5mm Combo Audio Jack*1

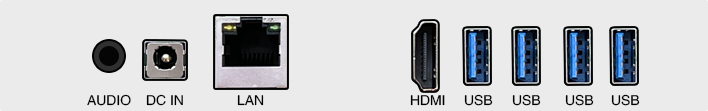

I/O Ports Picture
Extension PortsUSB 2.0*2
VESA75 mm*75 mm
Machine Size with StandL537 mm*W160 mm*H434 mm
Machine Size without StandL537 mm*W39 mm*H319 mm
Packing SizeL645 mm*W139 mm*H482 mm
Net Weight4.2 kg
Gross Weight5.8 kg
