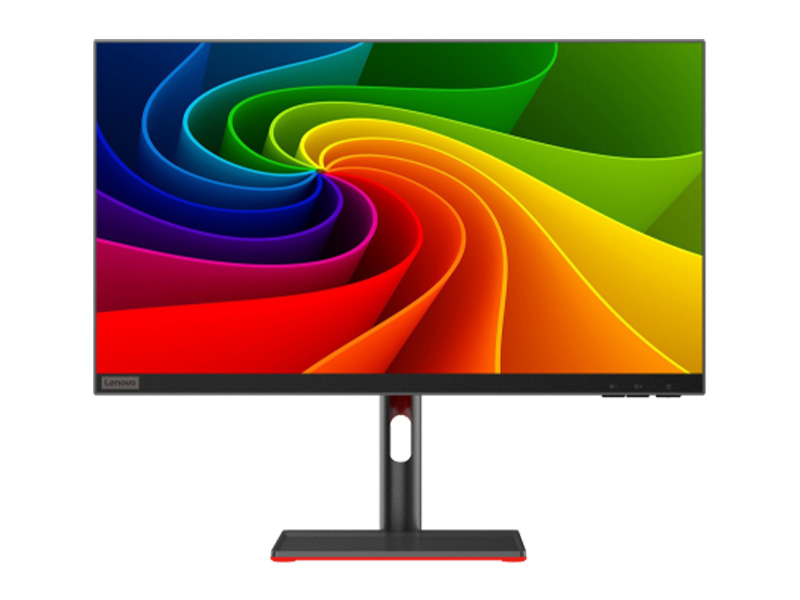

Lenovo AIO-A804

23.8″ FHD Business All-in-One PC | Optional 12th Gen Intel® Core™ i5 Power | WiFi 6 & Dual-Color Design | VESA Mount Ready

Overview

Lenovo AIO-A804 is a high – performance computing solution designed for a wide range of applications. Packed with an optional Intel Core 12th Generation i5 – 12400 CPU and a variety of connectivity options, it caters to different user needs, whether for work, study, or entertainment.

Key Features

  • 1920×1080 resolution, 3000:1 high contrast, 178° wide viewing angle, vivid colors, clear details
  • 12th generation i5-12400 processor, smooth multi-tasking, support 32GB DDR4 dual-channel memory and M.2+2.5-inch dual hard drive expansion
  • HDMI, COM, Gigabit network port, dual-band Wi-Fi, USB3.2/3.0/2.0, easy to connect to various office peripherals
  • Metal texture frame + ABS body, 100×100mm standard wall-mounted interface, flexible adaptation to different installation scenarios

Application Scenarios

Financial/Data Analysis: processes spreadsheets and databases efficiently with high RAM capacity

Educational Institutes: space-saving solution for computer labs or lecture halls

Retail & Hospitality Systems: supports POS peripherals via COM port and VESA mounting

Creative Workspaces: runs light design/video editing tools with color-accurate display

Conference Room Hubs: serves as presentation displays with HDMI-out and sleek aesthetics

Industrial Control Panels: COM port enables legacy device integration in technical environments

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

Product NameLenovo AIO-A804
Product ColorBlack/Gun color
Operating SystemWindows 10/11 64-bit
Manufacturer/ModelAUO M238HVN03.1 (optional)
Size/Ratio23.8 inch 16:9 LED-backlit widescreen
Display ModeVA
Diagonal Size60.5cm
Resolution1920×1080@60Hz
Refresh Rate60Hz
Default Color Temperature6500K(±750K）
Screen Size527.04(H) x 296.46(V)mm
Dot Pitch0.2745×0.2745 mm
Display Color16.7M
Brightness (Typ.)250 cd/m²
Contrast3000:1[Typ.] / 2100:1[Min.]
Response Time16 ms[Typ.]
Viewing Angle178°(H)/178°(V)[Typ.] (CR≥10)
Uniformity75%[Typ.] & 70%[Min.]
CPUIntel Core 12th Generation I5-12400 (optional)
CPU Clock Rate2.5GHz
Level 3 Cache18MB
Production Process10nm
Number of CoresSix cores and twelve threads
Display ChipIntel HD Graphics 730
TDP Power Consumption65W
Motherboard ModelJW H610I V2.0
ChipsetIntel H610
Memory InterfaceSO-DIMM DDR4 memory slot*2 (supports 2666/2933/3200MHz memory frequency) 32G MAX
Storage InterfaceM.2 2242/2280 SSD*1, 2.5inch SATA SSD/HDD*1
Network InterfaceRJ-45 (10/100/1000M Ethernet Lan)*1
WIFI InterfaceM.2 2230*1
USB PortUSB 3.2*2, USB 3.0*2
Function PortCOM*1
Video PortHDMI OUT*1
Audio PortsHeadphone jack ∮3.5mm*1 Microphone jack ∮3.5mm*1
Power InterfaceDC-in (5525) 19V input x1
MemoryKingBank DDR4 PC4-3200MHz 16GB (optional)
Hard DiskKingBank PCIe Gen3x4 M.2 2280 KP230 512GB(NVME) (optional)
GraphicsIntegrated Graphics
WIFIFn-Link 6252M-PUB RTL8852BE-CG,a/b/g/n/ac/ax,Wi-Fi+BT5.2, 2T2R, 5.8GHz/5.1GHz/2.4GHz
Extended USB PortUSB 2.0*4(bottom)
Speaker Function4Ω/3W * 2
CameraNA
Power AdapterHuntkey HKA15019079-6C (19.0Vdc, 7.9A, 150.1W)
Decorative StripsAluminum profile, anodized surface_black, screen printing color: Pantone 8403C
Middle FrameABS PA-757 Gunmetal, Glossy
Middle Frame CoverPC FL5105-v2 Black, textured, silk screen Pantone 8403C
Back Shell FrameABS PA-757 Black_With heat dissipation holes
Back CoverABS PA-757 Gunmetal, glossy; screen printing Pantone 485C
I/O bezelSGCC, powder coated surface_black
BracketAluminum profile (kit, round, wire hole), surface anodized_gun color
BaseAluminum alloy (square), gunmetal color + ABS PA-757 red decorative parts
Product SizeWith base bracket: L540*188*436mmW/O base bracket: L540*W56*H325mm (subject to the final product)

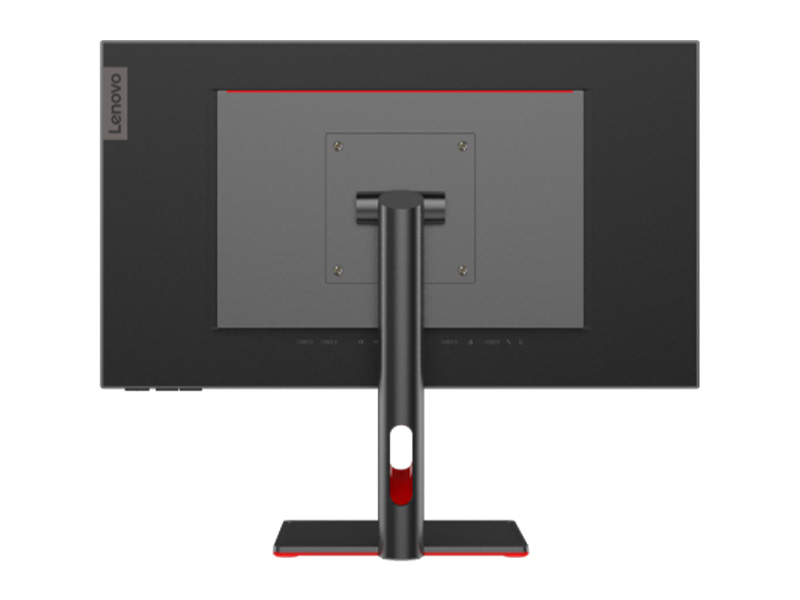

VESA Mount100mmx100mm

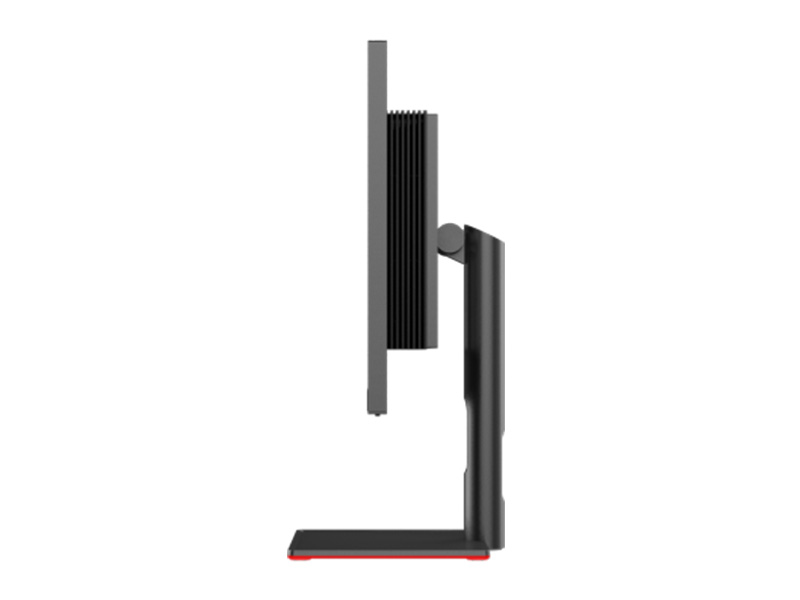

Axis Angle-5°~15°（±3°）
Height AdjustmentNA
Horizontal/Vertical RotationNA
Product Net Weight/Gross Weight5.95 kg / 8.05 kg (without keyboard and mouse), 9.2 kg (with keyboard and mouse)
