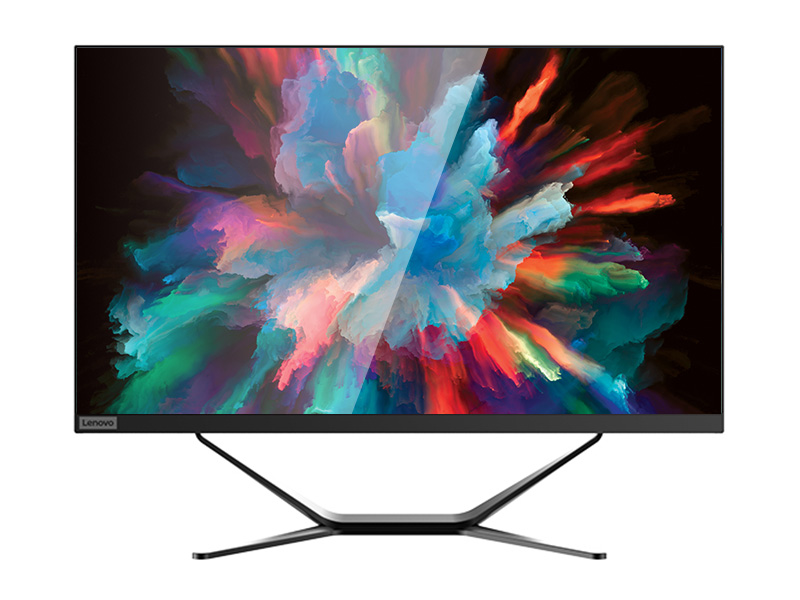

Lenovo AIO-A30-N5095
23.8″ FHD Essential Business All-in-One | Intel Celeron N5095 Efficiency | Dual Storage & VESA Mount | Legacy VGA Support
Overview
Lenovo AIO-A30-N5095 AIO PC combines performance and space-saving design into a sleek 23.8″ package. Powered by the Intel® Celeron® N5095 processor, it features Full HD visuals, efficient multitasking with 8GB DDR4 RAM, and fast storage with a 256GB SSD — ideal for home offices, education, and light business use.
Key Features
Application Scenarios
Customization Options
TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.
Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.
| Product Name | Lenovo AIO-A30-N5095 |
| Color | Black |
| Operating System | Windows 10 64-bit |
| Panel Model | AUO M238HVN01.0 (Optional) |
| Screen Size/Aspect Ratio | 23.8 inch (16:9 LED Backlit) |
| Display Type | VA |
| Diagonal Size | 60.5CM |
| Panel Resolution | 1920×1080@60Hz |
| Refresh Rate | 60Hz |
| Color Temperature (Default) | 6500K |
| Display Area（H*V） | 527.04(H) x 296.46(V)mm |
| Pixel Pitch | 0.2745*0.2745mm |
| Color Depth | 16.7M |
| Brightness | 220±20 cd/m² |
| Contrast Ratio | 3000:1[Typ.] / 1800:1[Min.] |
| Response Time | 16ms [Tr+Td] |
| Color Gamut | NTSC: 69% |
| View Angle（H/V） | 178°(H)/178°(V)(CR≥10) |
| Uniformity | 75%[Typ.] & 70%[Min.] |
| CPU | Intel® Celeron® N5095 |
| Base Frequency | 2.0GHz |
| Cache | 4MB |
| Process Technology | 10nm |
| Cores / Threads | 4 Cores / 4 Threads |
| Integrated Graphics | Intel UHD Graphics 16 EUs |
| TDP | 15W |
| Motherboard | JW N5095T |
| I/O Port Diagram |  |
| Chipset | Intel® Jasper Lake |
| Memory | 1 × SO-DIMM DDR4 SlotSupports 2400/2666MHz, up to 16GB |
| Storage | 1 × M.2 2242/2280 SSD1 × 2.5″ SATA SSD/HDD |
| Networking | 1 × RJ-45 (10/100/1000M Ethernet LAN) |
| Wireless Interface | 1 × M.2 2230 |
| USB Ports | 4 × USB 3.0 |
| Function Ports | NA |
| Video Output | 1 × HDMI OUT1 × VGA OUT |
| Audio Ports | 1 × 3.5mm Headphone Jack1 × 3.5mm Microphone Jack |
| Power Supply | 1 × DC-in (5525), 12V Input |
| Memory | KingSpec DDR4 PC4-2666MHz 8GB |
| Storage | KingSpec SSD KP320 256GB (2.5″ SATA) |
| Graphics | Integrated Graphics |
| Wireless | YNX NFA821 (2.4GHz 802.11 a/b/g/n & 5GHz 802.11ac, Bluetooth 2.1/4.2) |
| Extended USB Ports | 2 × USB 2.0 (Side) |
| Speaker | 2 × 28Ω/3W |
| Camera | NA |
| Power Adapter | Huntkey HKA06012050-7F (12.0V, 5.0A, 60W) |
| Front Bezel | SGCC, Black Paint, Textured Finish, Silkscreen Pantone 8403C |
| Frame | ABS, Black, Textured Finish |
| Back Panel | SGCC, Black Paint, Textured Finish, Silkscreen Pantone 8403C |
| Middle Frame | ABS, Black, Brushed Finish |
| Rear Shell | ABS, Black, Textured Finish |
| I/O Shield | SGCC, Black Paint, Textured Finish |
| Stand | U-shaped Dual Fork, Aluminum Alloy, Black Paint, Textured Finish |
| Base | U-shaped, Aluminum Alloy, Black Paint, Textured Finish |
| Dimensions | Unit W/stand：540(W)x168(D)x426(H)mmUnit W/O stand：540(W)x72(D)x320(H)mm |
| VESA Mount | 75mm*75mm |
| Angle | -5°~15°（±3°） |
| Height Adjustment | NA |
| Swivel / Pivot Rotation | NA |
| Net Weight/Gross Weight | 4.9 kg / 6.9 kg(Subject to Final Product) |
