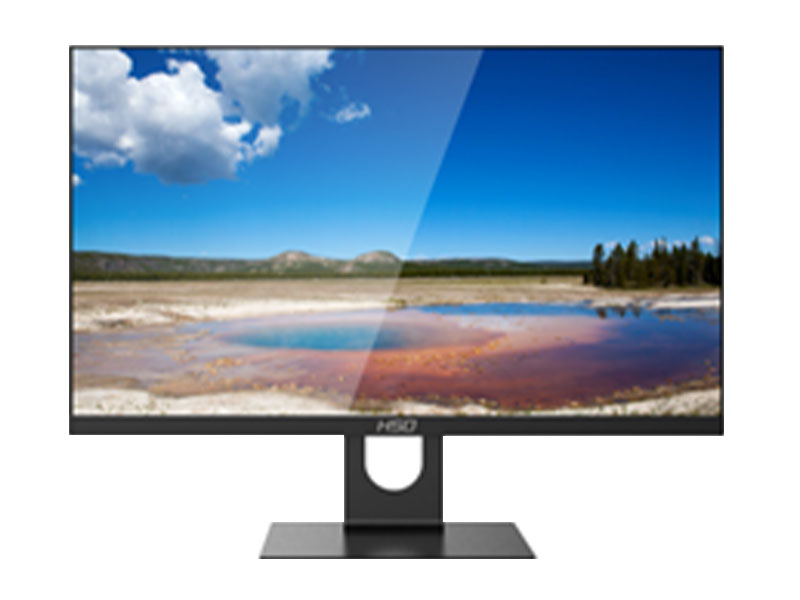

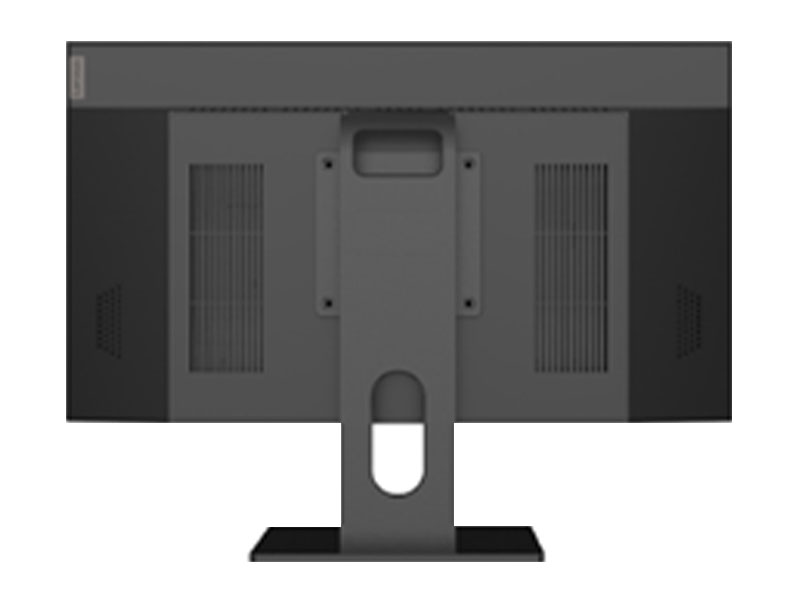

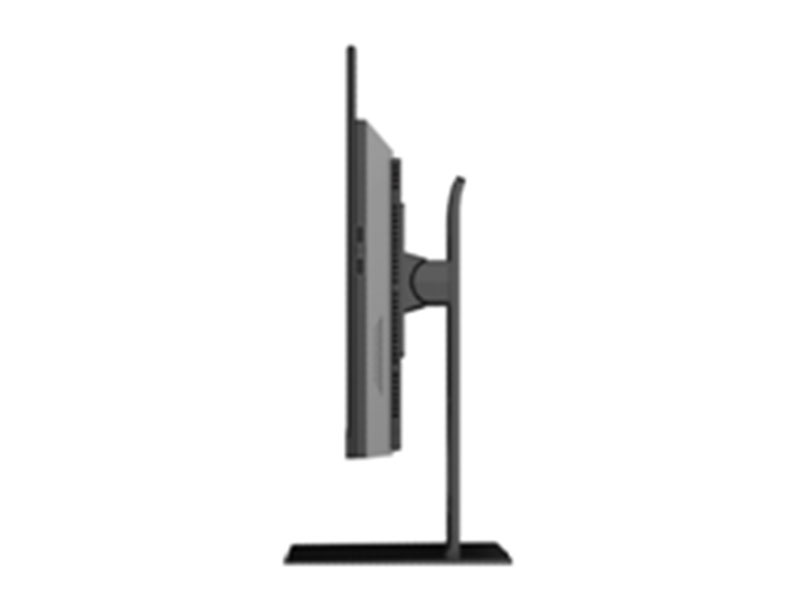

Lenovo AIO-A22

21.5″All-in-One PC丨10th Gen i5丨32GB Memory丨Dual Storage丨Cloud-Ready

Overview

Lenovo AIO-A22 is a 21.5″ cloud all-in-one PC powered by a 65W  Intel® Core™ i5 desktop CPU, delivering strong performance for demanding business tasks. With a minimalist design and x86 architecture, it supports a wide range of cloud desktop solutions.

Key Features

  • Equipped with the 10th generation Intel® Core™ i5 processor (65W), it can efficiently cope with complex office needs
  • Using Intel® H510 chipset to ensure long-term stable operation and strong compatibility
  • Supports up to 32GB memory + dual storage (M.2 SSD + 2.5″ HDD), built-in Wi-Fi/Bluetooth
  • Optimized for cloud desktops, digital workstations and smart offices, taking into account performance and low noise

Application Scenarios

Cloud Desktop Terminals: ideal as a dedicated endpoint device for accessing virtual desktops and cloud applications

General Office Productivity: perfect for everyday business tasks like email, documents, spreadsheets, and web browsing

Moderate Workload Workstations: suitable for users needing more power for tasks like programming, data analysis, or entry-level design

Public Space Info Kiosks: well-suited for reception areas, lobbies, or digital signage due to its compact size and VESA mounting

Call Center/Back-office Stations: efficiently handles communication software, databases, and multitasking for high-volume environments

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

Product NameLenovo AIO-A22
ColorBlack
Operating SystemWindows 10 64-bit
Panel ModelCSOT SG2151B05-2 (Optional)
Screen Size/Aspect Ratio21.45 inch (16:9 LED Backlit)
Display TypeVA
Diagonal Size54.5CM
Panel Resolution1920×1080@60Hz
Refresh Rate60Hz
Color Temperature (Default)6500K(±750K
Display Area（H*V）478.656(H) x 260.28(V)mm
Pixel Pitch0.2493(H)×0.241(V) mm
Color Depth16.7M
Brightness220±20 cd/m²
Contrast Ratio3000:1[Typ.] / 2000:1[Min.]
Response Time6.5 (Typ.)(G to G) ms
View Angle（H/V）178°(H)/178°(V)(CR≥10)
Uniformity75%[Typ.] & 70%[Min.]
CPUIntel® Core™ i5-10400 10th Gen Processor
Base Frequency2.9GHz
Cache4MB
Process Technology10nm
Cores / Threads6 Cores / 12 Threads
Integrated GraphicsIntel HD Graphics 630
TDP65W
MotherboardJW H510I V3.0
I/O Port Diagram
ChipsetIntel H510
Memory2 × SO-DIMM DDR4 SlotSupports 2400/2666MHz, up to 32GB
Storage1 × M.2 2242/2280 SSD1 × 2.5″ SATA SSD/HDD
Networking1 × RJ-45 (10/100/1000M Ethernet LAN)
Wireless Interface1 × M.2 2230
USB Ports4 × USB 3.0
Function Ports1 ×  COM
Video Output1 × HDMI OUT
Audio Ports1 × 3.5mm Headphone Jack1 × 3.5mm Microphone Jack
Power Supply1 × DC-in (5525), 19V Input
MemoryKingBank DDR4 PC4-2666MHz 8GB
StorageKingBank M.2 2280 KM210 256GB
GraphicsIntegrated Graphics
WirelessYNX NFA821 (2.4GHz 802.11 a/b/g/n & 5GHz 802.11ac, Bluetooth 2.1/4.2)
Extended USB Ports2 × USB 2.0 (Side)
Speaker2 × 28Ω/3W
CameraNA
Power AdapterHuntkey HKA12019063-7B(19.0Vdc,6.32A,120.08W)
Front BezelSGCC, Black Paint, Textured Finish, Silkscreen Pantone 8403C
FrameABS, Black, Textured Finish
Back PanelSGCC, Black Paint, Textured Finish, Silkscreen Pantone 8403C
Middle FrameABS, Black, Brushed Finish
Rear ShellABS, Black, Textured Finish
I/O ShieldSGCC, Natural Metal
StandSquare Handle, Aluminum Alloy, Black Paint, Textured Finish
BaseSquare, Aluminum Alloy, Black Paint, Textured Finish
DimensionsUnit W/stand: 494*200*378mmUnit W/O stand: 494*48*H282mm
VESA Mount100 mmx100 mm
Angle-5°~15°（±3°）
Height AdjustmentNA
Swivel / Pivot RotationNA
Net Weight/Gross Weight 4.3 kg / 5.9 kg (Subject to Final Product)
