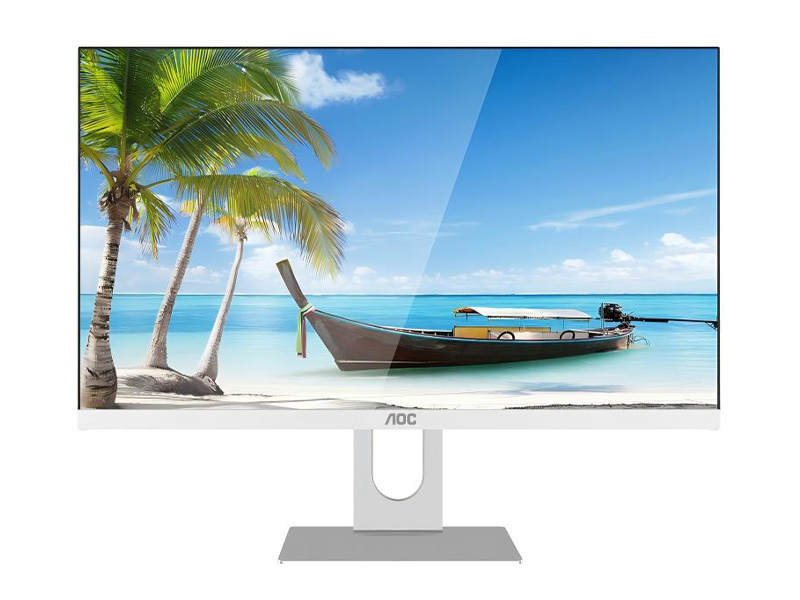

AOC Master Series AIO-H2709

23.8″ FHD IPS All-in-One PC| 12th Gen Intel Core | Support Dual-Storage | Office Ready

Overview

AOC Master Series AIO-H2709 is a 23.8-inch All-in-One PC designed for modern business environments. Powered by Intel 12th Gen Core i5 processor and featuring a vivid IPS Full HD display, it delivers reliable performance and excellent visual clarity. With flexible memory and storage options, dual-band WiFi, and comprehensive I/O ports, this AIO is built to handle daily office tasks efficiently — all in a compact, space-saving design.

Key Features

  • 23.8″ Full HD IPS Display with wide 178° viewing angles and 96% sRGB for rich, accurate color
  • Intel 12th Gen Core i5 CPU (Optional) ensure smooth multitasking and stable computing power
  • Integrated Intel UHD Graphics 730, handles everyday visual tasks and supports HDMI external display output
  • Dual-channel DDR4 Memory supports up to 32GB DDR4 RAM for scalable performance
  • M.2 SSD + 2.5″ SATA HDD/SSD support for flexible capacity and fast boot/load times
  • Reliable Connectivity includes Gigabit LAN, dual-band WiFi (optional), HDMI out, USB3.2/3.0/2.0, COM port, and audio jacks
  • Clean, Professional Aesthetic: Sleek silver/white finish with compact footprint — ideal for offices, reception areas, or educational use

Application Scenarios

Office Productivity – The 23.8″ Full HD IPS display with wide viewing angles and accurate colors ensures comfortable, high-quality visuals for spreadsheets, presentations, and video calls

Education & Training – Reliable Intel 12th Gen performance and flexible storage options make it perfect for digital classrooms, computer labs, and e-learning environments

Front Desk & Reception Areas – Professional sleek design with compact footprint blends seamlessly into corporate and hospitality settings

Creative Work – 96% sRGB color accuracy supports basic photo/video editing and design tasks for small studios or freelancers

Customization Options

Branding – Logo, boot animation, packaging

BIOS Custom – UI, splash screen, default settings

I/O Custom – Optional COM/VGA, USB config

OS Preload – Windows / Linux / Driver Bundle

Localization – Language, manuals, after-sales docs

TENFLY provides full customization services including logo printing, BIOS interface, I/O configuration, OS pre-installation, and packaging. Whether for education tenders, enterprise deployment, or OEM partnerships, we deliver tailored hardware and software solutions based on your exact needs.

Please note: Product features and specifications may vary by project scope or regional requirements. Final configuration is subject to customer confirmation.

All-In-One PC SPEC
Product ModelAOC Master Series AIO-H2709
Product ColorSilver/White
OSWindows 10 64-bit (Only supports UEFI mode system)
PanelDisplay Size/Ratio23.8-inch 16:9 LED-backlit widescreen
Display ModeIPS
Diagonal Size60.5CM
Resolution1920×1080@60Hz
Refresh Rate60Hz
Default Color Temperature6500K
Screen Size527.04(H) x 296.46(V)mm
Dot Pitch0.2745*0.2745mm
Display Color16.7M
Brightness (Typ.)220±20 CD/㎡
Contrast1000:1[Typ.] / 700:1[Min.]
Response time14ms [GTG]
Color GamutsRGB 96%
Viewing Angle178°(H)/178°(V)(CR≧10)
Uniformity75%[Typ.] & 70%[Min.]
Configuration     CPUCPUIntel Core 12th Generation I5-12400 (optional)
CPU Frequency2.5GHz
Level 3 Cache18MB
Production Process10nm
Number of CoresSix cores and twelve threads
Display ChipIntel HD Graphics 730
TDP Power Consumption65W
         MotherboardMotherboard ModelH610
Port Image
ChipsetIntel H610
Memory InterfaceSO-DIMM DDR4 memory slot*2 (Supports 2666/2933/3200MHz memory frequency) 32G MAX
Storage InterfaceM.2 2242/2280 SSD*1, 2.5inch SATA SSD/HDD*1
Network InterfaceRJ-45 (10/100/1000M Ethernet Lan)*1
WIFI InterfaceM.2 2230*1
USB PortUSB3.2*2, USB3.0*2
Function PortCOM*1
Video PortHDMI OUT*1
Audio PortsHeadphone jack ∮3.5mm*1 Microphone jack ∮3.5mm*1
Power InterfaceDC-in (5525) 19V input x1
MemoryDDR4 PC4-2666MHz 8GB (optional)
Hard DiskM.2 2280 256GB SATA protocol (optional)
GraphicsIntegrated Graphics
WIFI ModelRealtek RTL8821CE (2.4GHz/802.11 a/b/g/n & 5GHz/802.11ac, Bluetooth 4.2) (Optional)
Extended USB portUSB2.0*2(side)
Speaker Function8Ω/3W * 2
CameraN/A
Power AdapterExternal desktop adapter, DC 19V 6.32A (120W)
StructureFront FrameSGCC, white spray paint, textured surface
BezelPC+ABS, black, textured
Middle FrameABS, white, textured

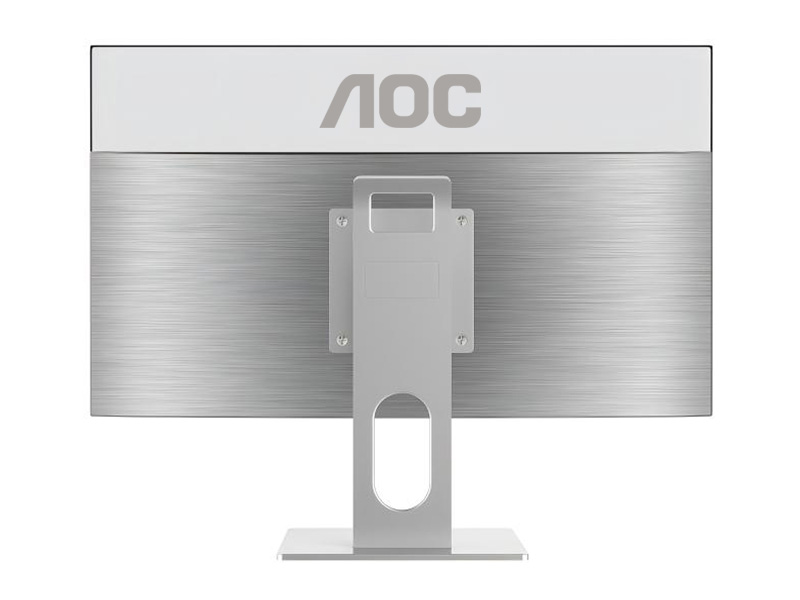

Back ShellABS, silver, brushed
BracketSquare quick-release portable, aluminum alloy, silver spray paint, textured surface
BaseSquare, aluminum alloy, silver spray paint, textured surface
Product Net Weight/Gross Weight4.8kg / 6.7kg (subject to the final product)
Product Size540(W)x200(D)x428(H)mm (with stand)540(W)x56(D)x320(H)mm (without stand)
Packing Size600(W)x170(D)x515(H)mm (subject to the final product)
VESA Mount100mm*100mm
Axis Angle-5°~15°（±3°）
Height AdjustmentNA
Horizontal/Vertical RotationNA
SafetyCCC, Energy Efficiency
